Product details

H-TC50SA Full automatic Soft-tube hot stamping machine //

Usage and characters

Plastic hoses are widely used in cosmetic packaging such as toothpaste, facial cleanser, moisturizer and other products. In order to improve the grade of the product, plastic hoses are plastic products that are decorated and processed by hot stamping machines. Most plastic hoses are cylindrical in shape, and most users will choose vertical turntable hot stamping machines.

Vertical turntable hot stamping machines generally have 8-10 stations, and the clamps on the stations are used to fix the hoses. The hoses will be placed on the feeding conveyor belt. When they are transported to the loading position, the hoses will be pushed onto the clamps, and then rotated with the turntable to the pre-press processing, hot stamping, unloading and other stations to complete the entire hot stamping process.

Vertical turntable hot stamping machines are one of the most mature and best-selling automatic hot stamping machine types, and play an important role in the plastic packaging industry.

120

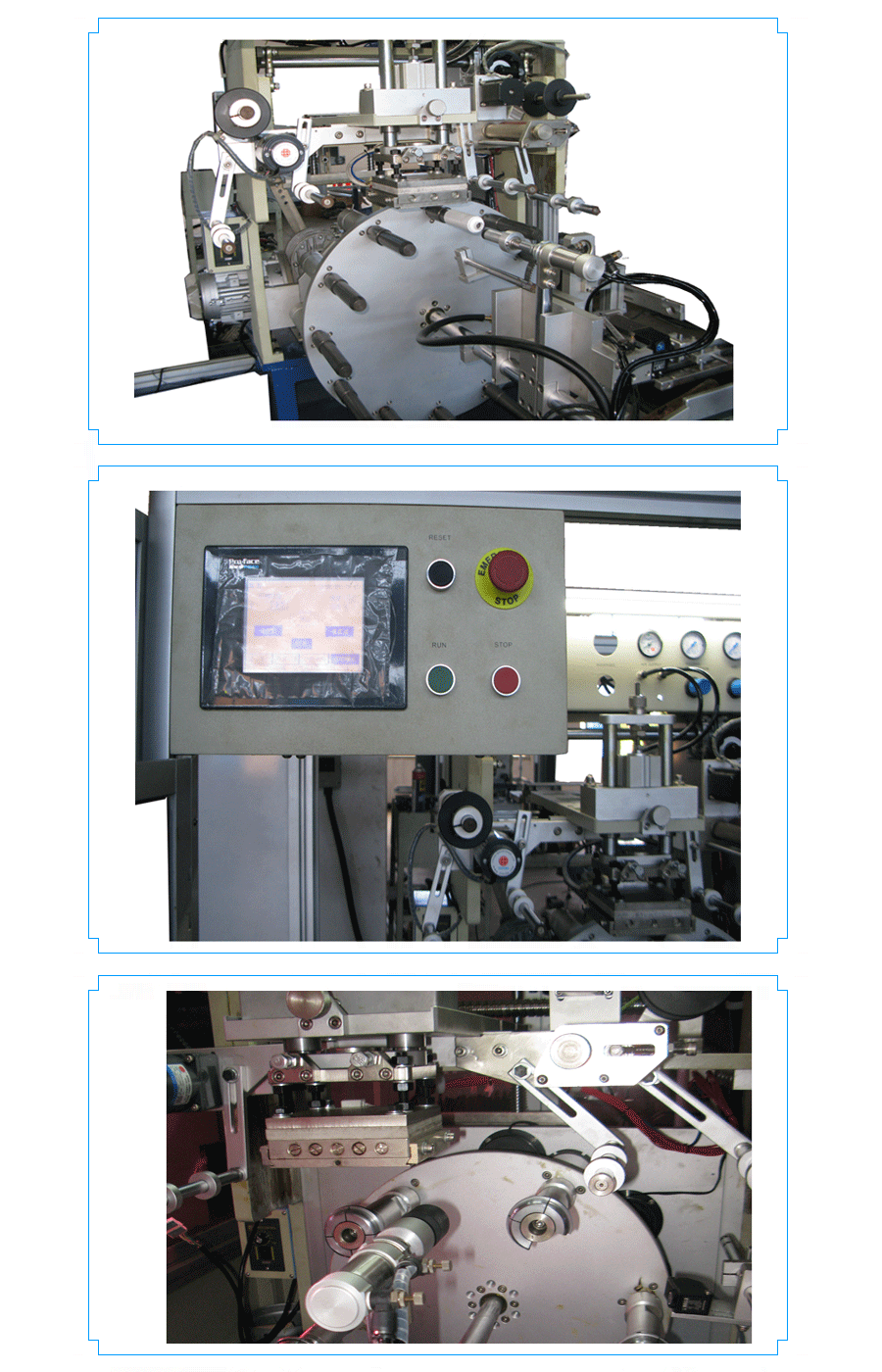

Details of hoses automatic hot stamping machine

121

Technical data of automatic soft-tube gilding machine

Common type of PE soft-tube gilt; Suitable for all kinds of soft-tube made of plastic material gilt;
With the smooth side of the cap are suitable for this machine gilt;
Also for some of the cosmetic cover a diameter less than 40mm gold foil.
With automatic transmission is fully automatic stamping machine cap, the cap for a top side of the gilt automatic stamping machine;
Structural design of the central compact structure; bottle feeding from the side, facing into the stamping station;
Stable horizontal movement, the frequency motor control, stamping pressure evenly, stamping quality;
Programmable logic controller fine-tuning various parameters, a good user interface;
Set a single machine debugging feature operation is set up can be fully functional operation;
As the bottle with the top and bottom of the points, the machine can automatically identify, saving labor costs and labor intensity.

Application fields

35mm in diameter, about the various sides of the foil cap;
All kinds of plastic material cap bronzing;
Various painted metal surface on the side of the bottle cap gilt;
Liquor industry, plastic containers and packaging industry, cosmetics industry, cap side tipping.

Hoses Full automatic hot stamping Machine //Parameter

Total consume Wattage: 260W;
Stamping temperature Rnange:20∼300℃;
Compress air Pressure﹕5-8Bbar;
Products Diameter:﹕(φ15~Φ35mm)×(20~60mm)
Max stamping Speed:2000-3000pcs/h
Outer dimension: 2300×2160×1200mm;
Net weight(kg) : 420;
Motor wattage: 1500W;
Power supply: 220V;
Heater wattage: 800W IR.
Works supply: 110V-220VPower supply;5-7Bar Compress air;
Package size: 2770×1680×1790MM;
Gross weight: 745kg
CBM: 8.329
H.S.Code: 8443198000
Certificate:CE

Soft-tube Full automatic hot stamping machine //Advantage

Vertical cylinder pressure mechanism design, a strong pressure;
Stamping head can be adjusted for back-front, Left-right, Up-down, easy to operate safely and quickly;
Used for 8-bit rotary type feeding mechanism, significant savings in preparation time, improve the stamping speed;
Stamping pressure, temperature, time stamping adjustable;
Automatic foil feeding , Foil collection, and adjustment;
Lift stamping head height adjustable;
Bin storage, automatic Crawler installed for cap feeding;
Automatically distinguish device between top or Bottom of cap to ensure the correct position into the gilt;
Automatic stamping process;
The use of advanced modular program-controlled device, together with touch-screen display control component of the operating system, the action using SMC Corporation pneumatic control;
With a square column design, the machine structure, solid and durable;
Shift the amount of imported high precision sensor control, to ensure that the hot stamping effect more perfect;
Precision linear bearing high-quality, durable, lightweight and flexible to ensure that the machine is running, to extend the mechanical life.
IR heating, heating, high efficiency, stability and ensure stamping quality.
Rotary table design automatic inflatable device for stamping cap sideways
