Product Introduction

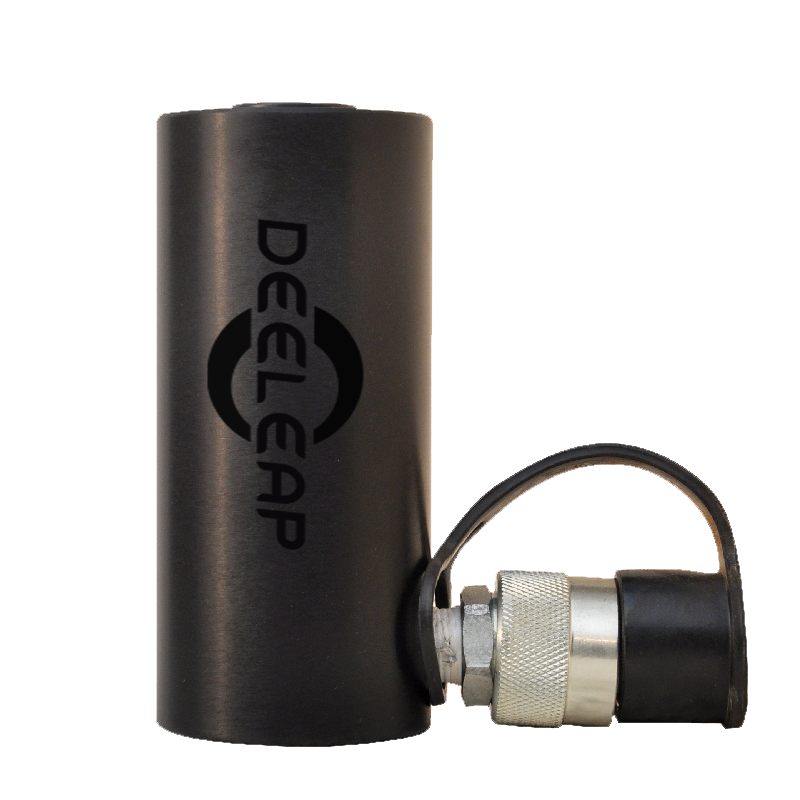

Name: High pressure single acting hydraulic cylinder (Aluminum hydraulic jack)
Features: The weight is about 50% lighter than the steel cylinder, with higher working capacity and weight ratio, easier to carry and location.
Uses: Suitable for construction, power plants, oil fields, shipyards, steel plants, aerospace manufacturing and other industries.
Advantage:
The surface is treated with an oxidized solid coating, which is wear-resistant and corrosion-resistant.
The composite support ring design can prevent the contact between the body and the plunger, and reduce the cylinder pulling phenomenon caused by the eccentric load.
The configuration of the saddle can prevent the damage of the cylinder caused by the load.
Integral retaining ring prevents over-extension of the plunger and can withstand full load.
The built-in high-strength return tension spring can make the piston return quickly.
Dust seal prevents dust from entering the cylinder for extended use
High-quality sealing ring: international well-known brand sealing ring, wear-resistant and anti-aging, can ensure that the hydraulic cylinder works for a long time.
In explosive atmospheres, the aluminum block prevents sparks.
Model no.
Cap. (T)
Stroke (mm)
Effective area (cm²)
Oil capacity (cm³)
Weight (kg)
DRAC-302
30
51
41.7
221
5.4
DRAC-304
101
421
7
DRAC-502
50
50
71.2
356
9.8
DRAC-504
102
726
12
DRAC-506
153
1089
14.3

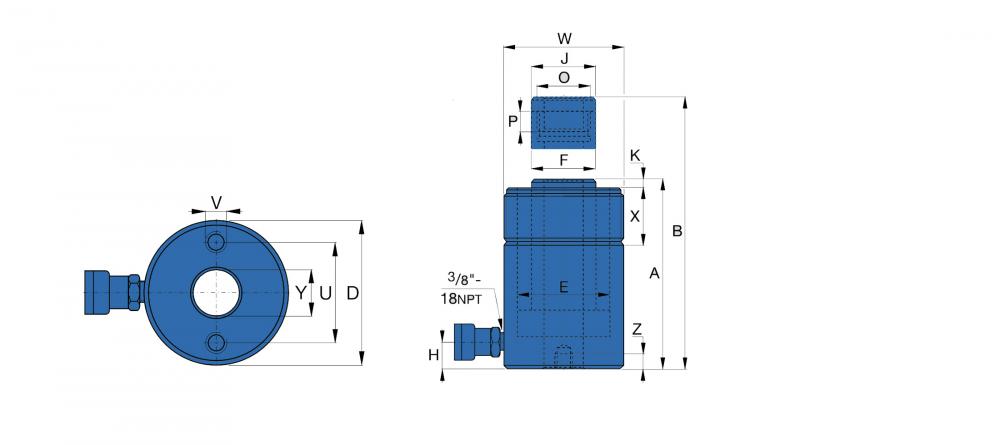

Size
| A | B | D | E | F |
|
| Model no. | Retracted Height (mm) | Extended Height (mm) | Outside Diameter (mm) | Bore Diameter (mm) | Piston Rod Diameter (mm) |
| DRAC-302 | 181 | 232 | 120 | 72.9 | 57.2 |
| DRAC-304 | 235 | 336 | |||
| DRAC-502 | 177 | 227 | 149 | 95.2 | 79.2 |
| DRAC-504 | 227 | 329 | |||
| DRAC-506 | 278 | 431 |
If you have request about high pressure jack cylinders and pumps, pls contact with us by mail or whatsapp.
We will give you the price accordlingly per your details request.
If you are interested in the product, contact 2bvideo.com for more information for more information
