Water air separator play an important part for compressed air system
Remove of water in compressed air is the primary task of compressed air treatment. The liquid water entrained in compressed air will corrode pipelines, valves , instruments and equipment, resulting in increased production costs.
The compressed air water separator is compact and strength in appearance, durable, and the pressure loss is negligible. And there is an imported automatic drain valve inside, no need to replace components. It is not only an ideal component for screw compressors, but also an indispensable water removel device for general air compressor post-processing.
Working Principle
The compressed air gas-water separator is composed of a housing, a cyclone separator, and sewage components. When the compressed air containing a large amount of oil and water solid impurities enters the separator, it spins down along its inner wall. The centrifugal effect produced causes the liquid water to separate out of the vapor stream and flow down the wall. Under the action of gravity, it flows into the separator. The bottom of the device is discharged by the automatic drain valve.
Feature & Benefit
①99% Separation efficiency from compressed air system
②Zero pressure drop, saving energy and money
③Internal & external anti-corrosion treatment, increase spanlife and ensure separation efficiency
④With Strong structure, 15 years warranty, cost reasonable
Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g). For the application in other working pressure, please refer to the correction factors.
Model
Pipe size
Flow rates

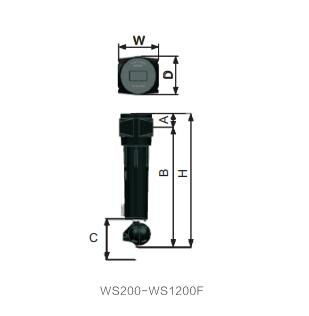

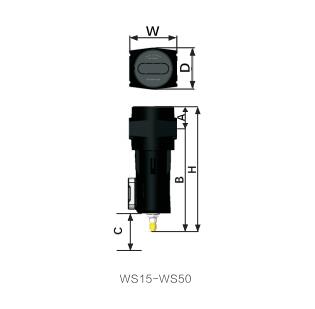

Dimension (mm)
L/S
m³/min
scfm
W(Width)
D(Depth)
H(Height)
WS 15
RC1/2"
40.0
2.4
84.5
89
79
228
WS 25
RC3/4"
60.0
3.6
127.1
89
79
228
WS 50
RC1"
75.0
4.5
158.9
89
79
263
WS 75
RC1"
125.0
7.5
264.8
120
110
335
WS 100
RC1-1/2"
166.7
10.0
353.1
120
110
335

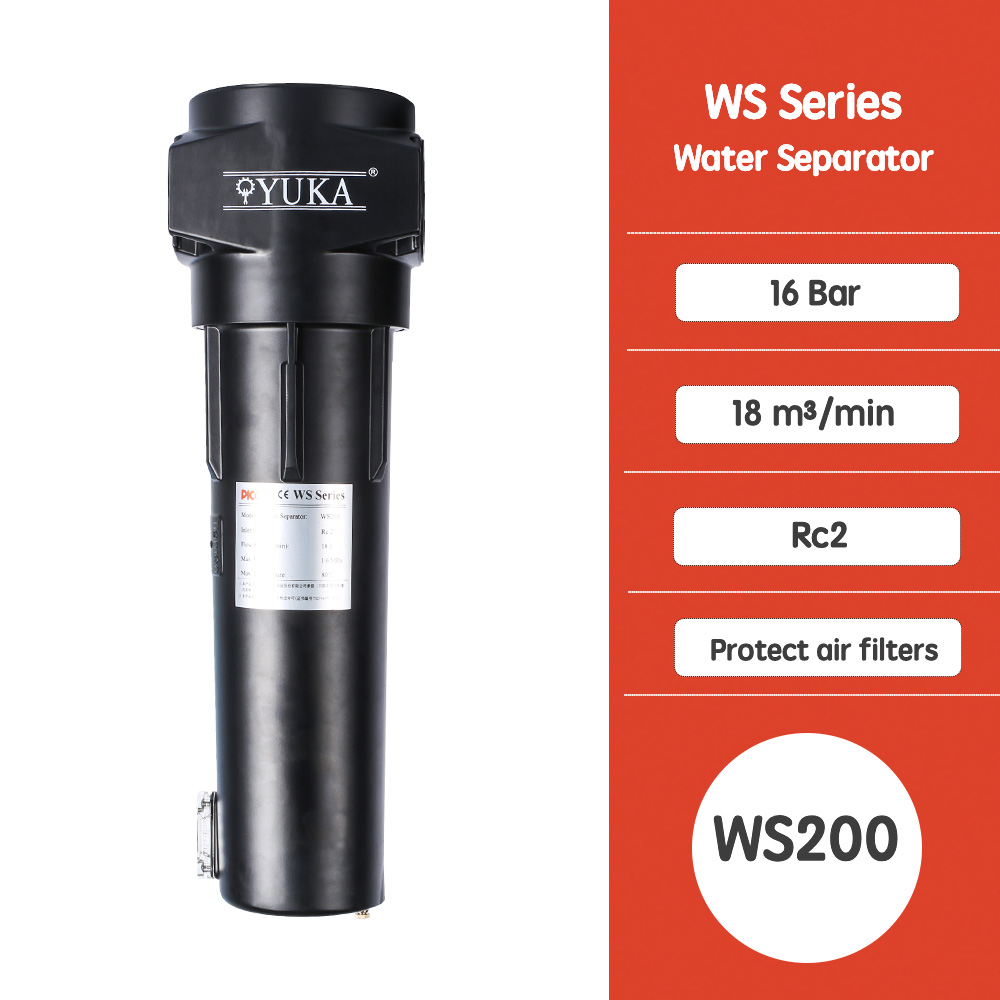

WS 200
RC2"
300.1
18.0
635.6
164
151
564
WS 250
RC2-1/2"
416.8
25.0
882.8
164
151
664
WS 700
RC2-1/2"
700.0
42.0
1483.1
200
189
712
WS 800
RC3"
833.5
50.0
1765.6
200
189
712
WS 800F
DN80/DN100
833.5
50.0
1765.6
280
189
734/744
WS 1000F
DN100/DN125
1000.2
60.0
2118.7
280
189
780/795
WS 1200F
DN100/DN125
1166.7
70.0
2464.0
280
189
1058/1073
Technical requirements
Maximum operating pressure: 10 barg Operating temperature:1.5~ 80°C
Pressure
Barg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Psig
15
29
44
59
73
87
100
116
131
145
160
174
189
203
219
232
Correction factor
0.38
0.53
0.65
0.76
0.85
0.93
1.00
1.07
1.13
1.19
1.23
1.31
1.36
1.41
1.46
1.51

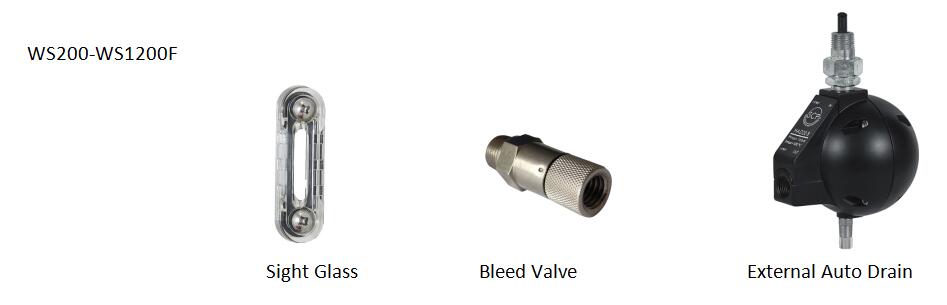

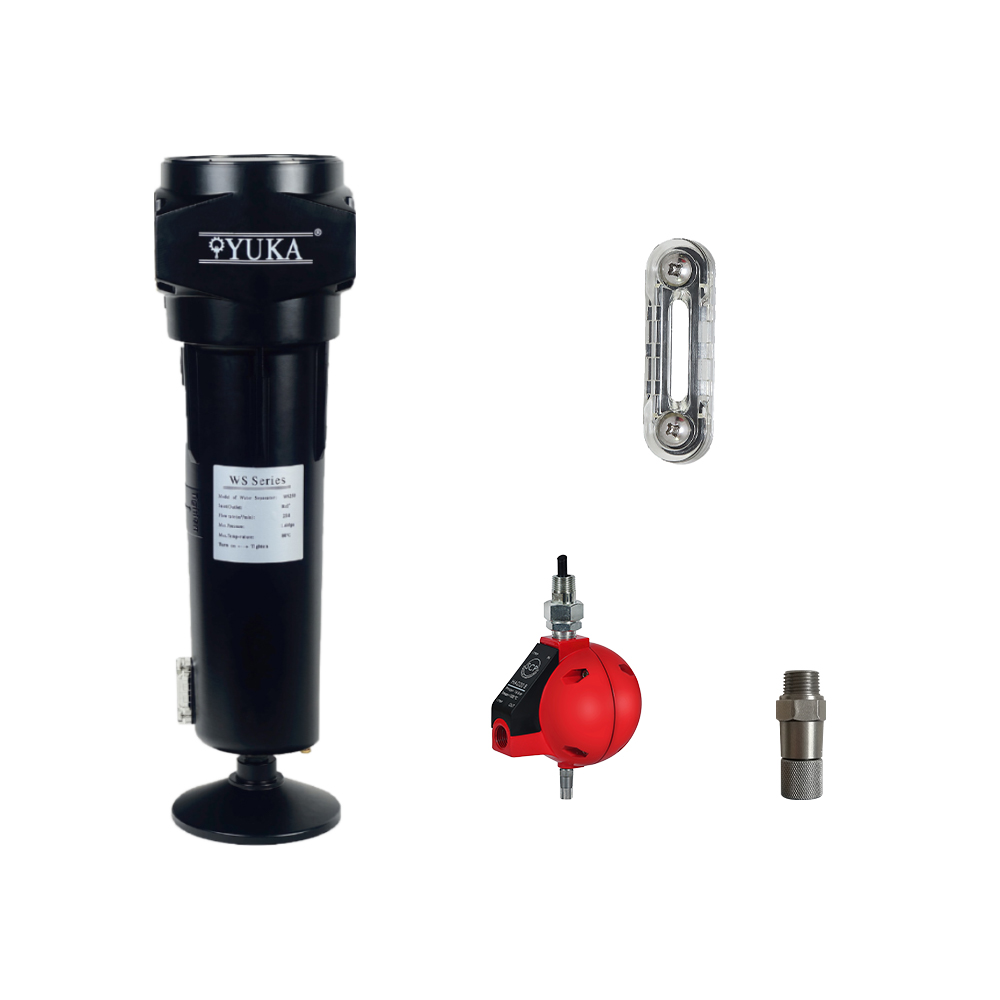

Product Parts
