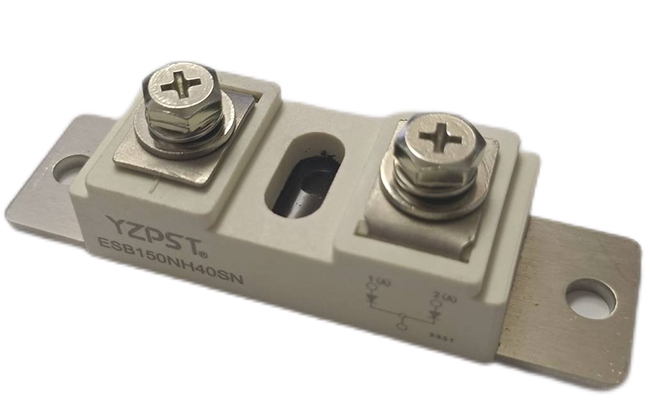

Silicon Super Fast Recovery Diode Module
TYPE:YZPST-ESB150NH40SN
Features
· High Surge Capability
· Types from 50 V to 600 V VRRM
· Not ESD Sensitive
Symbol
Condition
Ratings
Unit
IF(AV)M
TC=100°C; 180° sine
150
A
IFRMS
maximum value for continuous operation
A
IFSM
Tj=25°C; t = 8.3 ms (50 Hz); sine
2100
A
I2t
Tj=25°C; t = 8.3 ms (50 Hz); sine
1830
kA2S
Viso
A.C.1minute/1second
-
V
Tj
-40 ~ + 175
°C
Tstg
-40 ~ + 150
°C
M
mounting torque; ±15%
4
Nm
terminal torque; ±15%
3
Nm
W
approx.
95
g
IRRM
AtVRRM，Single phase，half wave，Tj=100°C
1
mA
VFM
On-State Current 150A，Tj=25°C
1.40
V
VF0
Tj=150°C
-
V
rF
Tj=150°C
-
mΩ
trr
Tj=25°C; IF = 150A; -diF/dt =300A/μs; VR = 200V;
120
ns
Qrr
Tj=150°C; IF = 50A; -diF/dt = 100A/μs; VR = 100V
-
us
IRM
-
A
Rth(j-c)
Per Module
0.12
°C/W
Rth(c-h)
Per Module
-
°C/W

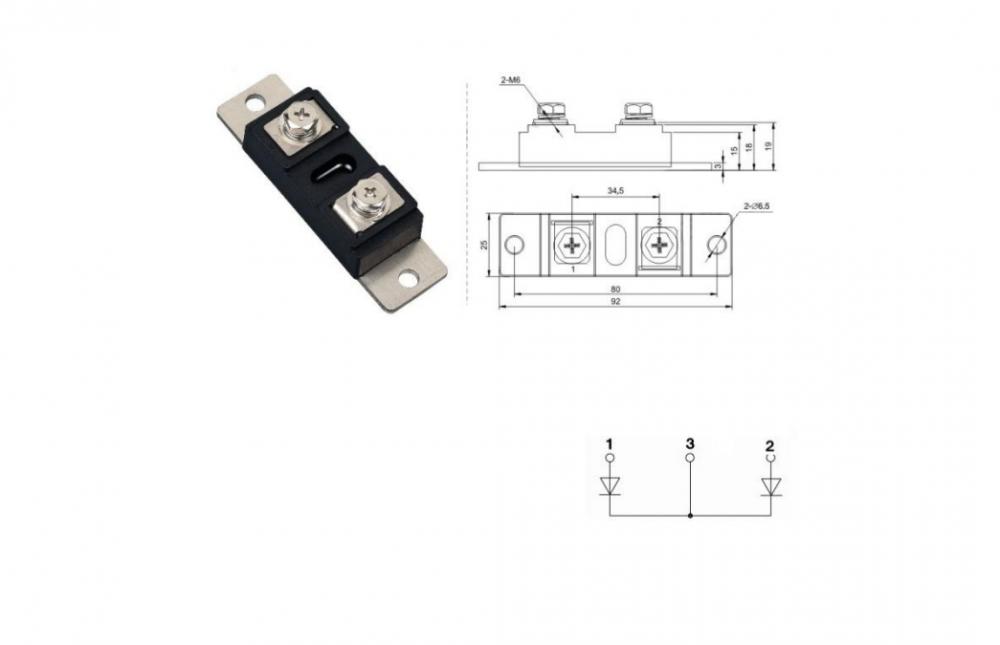

Outline Drawing
