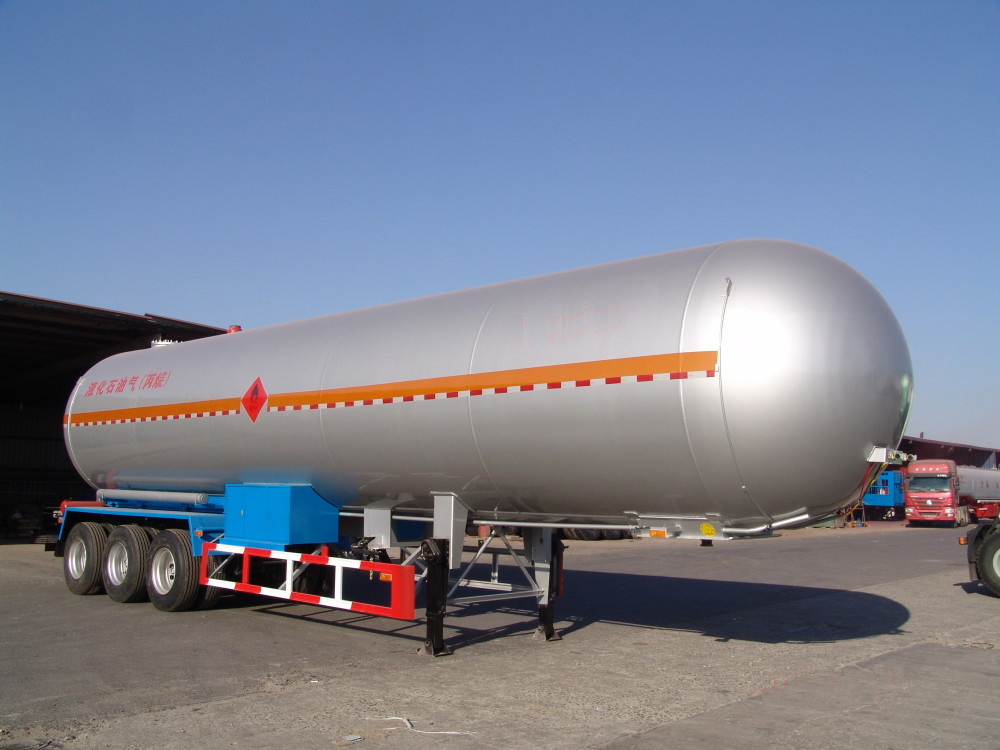

3 Axles LPG Tank Semitrailer

2 year ago

36 0

Shandong Tenda Vehicle Co. LTD

 2 year year

Product details

LPG tank trailer is made of special material high quality carbon steel material. As a professional LPG tank trailer manufacturer in China,we have the aptitude to design and manufacture different type of pressure vessel, we can design the strict quality to meet international Tank trailer specifications ,manufacturing processing of LPG tank trailer is complex and strict. Prevention is always better than cure. Detecting welding by radio-graphic and ultrasonic inspection. Detecting leakage by hydro-static test and pneumatic test, issued a pressure vessel inspection certificate. Our experienced service engineers will plan the maintenance of your entire plant to avoid breakdowns and keep costs down.

LPG tank trailer usually design round ship,the tank body and end plate material design is meticulous ,usually , we use water pressure to make the end plate shape ,for welding , workshop have high professional workers to do the welding , it can make the tank body tight ,when it completely production , we should be make a test to see how strong for tank body . LPG tank trailer as a pressure vessels when it during production , it should be serious to control every step , it ensure when it completely production , can meet clients transport demand .

LPG tank trailer can use in Industries petrochemical, coal chemical, precision chemical, nuclear power, metallurgical pharmaceutical, machinery, food,pesticide, rubber, aerospace, marine, dye,new power equipment and so on.LPG tank trailer with widely using , if there have clients make the first time business for liquid petrol gas transport , also can choose this type .

Type	3 Axles LPG Tank Semitrailer
Loading Capacity	25 Ton
Tank Capacity	58.8 liters (Capacity)

Product to be Carried	Liquefied Petroleum Gas

Overall Length	Approx. 13000mm

Overall Width	Approx. 2500mm

Overall Height	Approx. 3990mm

Vessel Diameter	Approx. 2500mm

Tanker Tare Weight	Approx. 14560kg

Tank Material	Major Pressure Parts: Low alloy steel Q345R
	Non Pressure Parts =Carbon steel
Tank Barrel Section	Ellipse Head, Circular Cross Section Cylinder

Tank Shell	Low alloy steel Q345R（Normalizing）

Head	Low alloy steel Q370R(Normalizing)，elliptical front head, elliptical rear head

Manway	One (1) on top of the tank.

Fill and Discharge Line	DN50emergency shut off valve. At the end of the liquid line is installed with a DN50 ball valve, a DN6 globe valve and 1pic quick connector and blind cap.
Vapour Line	DN25emergency shut off valve with internal piping into the vapour space. At the end of the vapor line is installed with a DN25 ball valve, 1pic quick connector and blind cap.
Pressure Relieve Valve	ONE (1) units NA42F-25 pressure relieve valve is mounted, opening pressure1.75Mpa .
Liquid Level Gauge	1pc Rotary liquid level gauge installed on the rear head

Pressure Gauge	2pcs pressure gauge,measuring range 0-4Mpa

Temperature Gauge	1pc temperature gauge (-40°C to +60°C).

Loading and Discharge Operation	Loading with external pump/depot.
	Discharge without pump, with help of external compressor or gravity.
	Vapour return through separate line.
Axle&Suspension	Three(3) Axle FUWA 13T capacity axles complete with spring suspension.
Wheel rim	12units 9.0*22.5 steel rims，
Tyre	315/80R22.5-12 12pcs
Parking brake	Pneumatic operated parking brake
Wear plate and King pin	Fixed wear plate with 90# Dia bolted king pin
Landing leg	Two speed manually operated type (Double side operation)
Discharge Cabinet	At the double sides of the tanker a small steel cabinet for piping system controls. The cabinet will also house the tank gauges like pressure gauge and temperature gauge.
Side Protection	Steel profile as side protection.

Mudguard	Steel mudguard with mudflap.

Bumper	Steel bumper with reflective sticker.

Fire Extinguisher	Two (2) units 5kgs fire extinguisher with protection box.

Earthing Component	Provided with earthing strip
Lighting&Wiring	Standard front, side and rear lighting comply with China Road regulations, 24 volt system, Stop, turn indicator, rear & hazard warning light , Side marker lamp.
Painting	Vessel exterior is shot blasted and applied with anti-rust primer and finishing painted, color as per client's indication
Inspection:	Shandong Province Special Equipment Safety Inspection Institute
