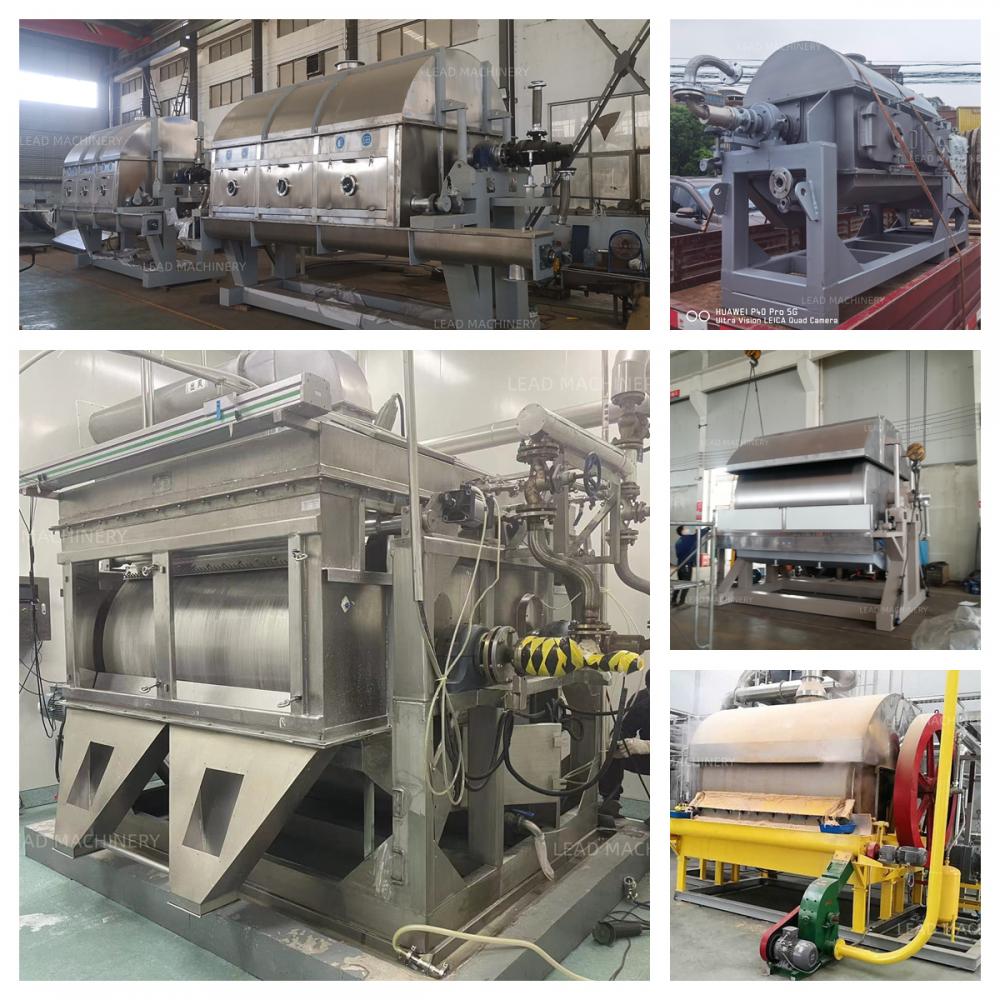

Rotary drum flaker, it is a kind of cooling and crystallization process, the fluid in feeding tray contacted with the surface of cooled drum and form the material film on the surfuace of rotary drum, then the material film was cooled and crystallized by the heat exchange between the fluid and drum wall, the crystallized material was scraped off by the scraper in the status of flakes.
It is applicable to the flake solid transformed from the high-temperature fluid via the cold and heat exchange on the moving surface of the inner cooling roller. It can be universally used in chemical industry, food industry, fertilizer industry and pharmacy industry.
1.High heat efficiency: The heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical with operation circle. Most of the heats can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2.Flexible operation elasticity and wide application: Various drying factors of the dryer can be adjusted, such as concentration of the liquid, thickness of material film, temperature of heating medium, rotating speed of the drum, and etc. These factors can change drying efficiency of the cylinder dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry different materials and meet different production requirements.
3.Short drying period: The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It also can be pressure reducing operated if it is put in vacuum vessel.
4.Fast drying rate: The thickness of the material film on the wall of the cylinder is very thin. Normal, thickness is 0.3 to 1.5mm. The directions of heat and mass transmittal are identical so the evaporation strength on the surface of material film can be 20-70 kg.H2O/m2.h.
3. Technical parameters of drum flaker
| Specification |
Roller size (mm) |
Effective heating |
Drying capacity | Steam consumption (kg/h) | Motor power (kW) | Overall dimensions (mm) | Weight (kg) |
| area m2 | kg.H2O/m2.h | ||||||
| HG-600 | Φ600×800 | 1.12 | 40-70 | 100-175 | 2.2 | 1700×800×1500 | 850 |
| HG-700 | Φ700×1000 | 1.65 | 60-90 | 150-225 | 3 | 2100×1000×1800 | 1210 |
| HG-800 | Φ800×1200 | 2.26 | 90-130 | 225-325 | 4 | 2500×1100×1980 | 1700 |
| HG-1000 | Φ1000×1400 | 3.3 | 130-190 | 325-475 | 5.5 | 2700×1300×2250 | 2100 |
| HG-1200 | Φ1200×1500 | 4.24 | 160-250 | 400-625 | 7.5 | 2800×1500×2450 | 2650 |
| HG-1400 | Φ1400×1600 | 5.28 | 210-310 | 525-775 | 11 | 3150×1700×2800 | 3220 |
| HG-1600 | Φ1600×1800 | 6.79 | 270-400 | 675-1000 | 11 | 3350×1900×3150 | 4350 |
| HG-1800 | Φ1800×2000 | 8.48 | 330-500 | 825-1250 | 15 | 3600×2050×3500 | 5100 |
| HG-1800A | Φ1800×2500 | 10.6 | 420-630 | 1050-1575 | 18.5 | 4100×2050×3500 | 6150 |
If you are interested in the product, contact 2bvideo.com for more information for more information
