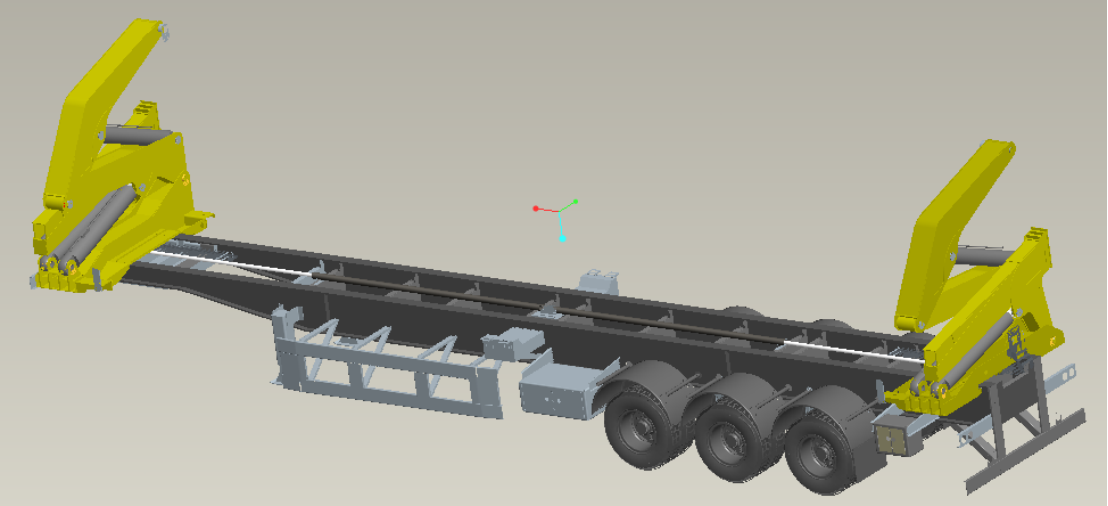

Side Loader Container Trailer

11 month ago

31 0

Shandong Tenda Vehicle Co. LTD

 12 month year

Product details

Why Choose TENDA Sidelifter?

Superior Lifting Capacity: The standard of TENDA Self loading Container Truck trailer is 37 tons and also available with a full 45 ton of capacity.

Save time and make more value: With a TENDA Self loading Container Truck Trailer , The trailer driver can load and unload the container in 5 minutes on his or her own, then the truck is on the road again. Without the need to wait for other heavy lifting equipment.

Durable and Proven Dependability: TENDA Self loading contrainer truck trailer is tough, reliable and requires limited maintenance. TENDA Sidelifter has exported Africa(Djibouti, Zimbabwe, Mauritius, Tanzania, Liberia, Ethiopia), Middle East( the United Arab Emirates), Asia, and South America.

Flexible solutions: With the TENDA 40ft self loading Container Truck Trailer, you get closer and can lift between trailers safely and with high precision.

Wriless remote control and Manual operating: TENDA Self loading container truck trailer equipped with wireless remote controller and manual operation. the wireless remote controller can control its legs and cranes within 30m, Simple pictograms display the functions. this technology provides convenience and safety for the operator.

Power take off or Diesel APU: TENDA equip your vehicle with power take off as standard, the optimum solution for the highest reliability, service and economy. The hydraulic system with power take off has a very low tare weight and minimum diesel consumption. Engine throttle size and engine speed can be control, improving working efficiency.

Type		Side Loader Container Trailer
Overall Dimension		14500x2550x3950mm

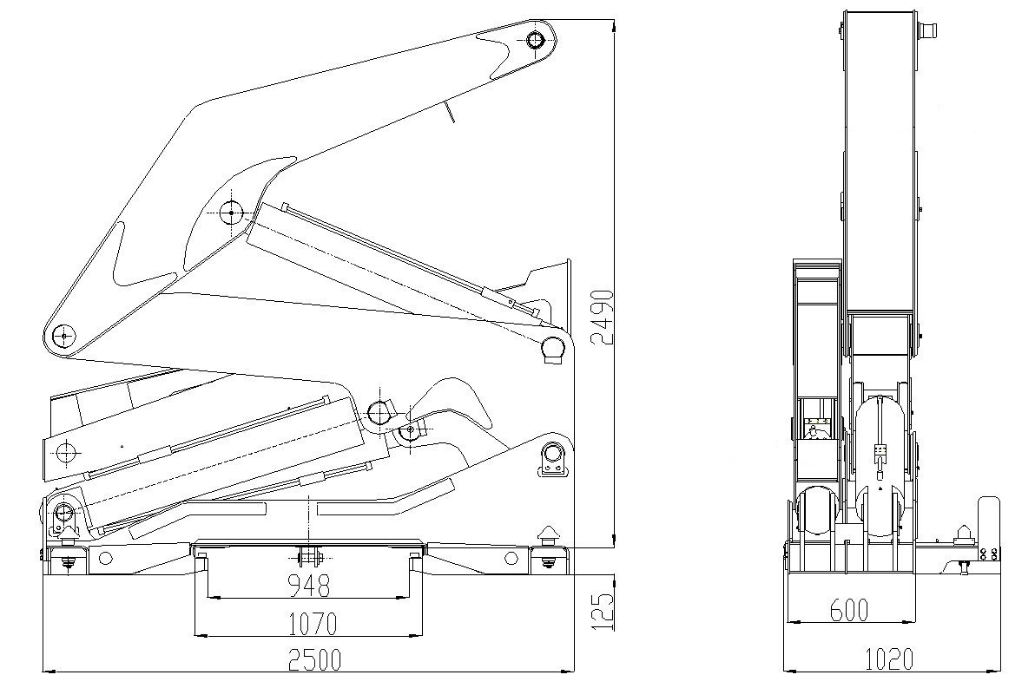

Lifting Crane
Function	Lift the containers, 20 feet and 40 feet
Item	MQH37A

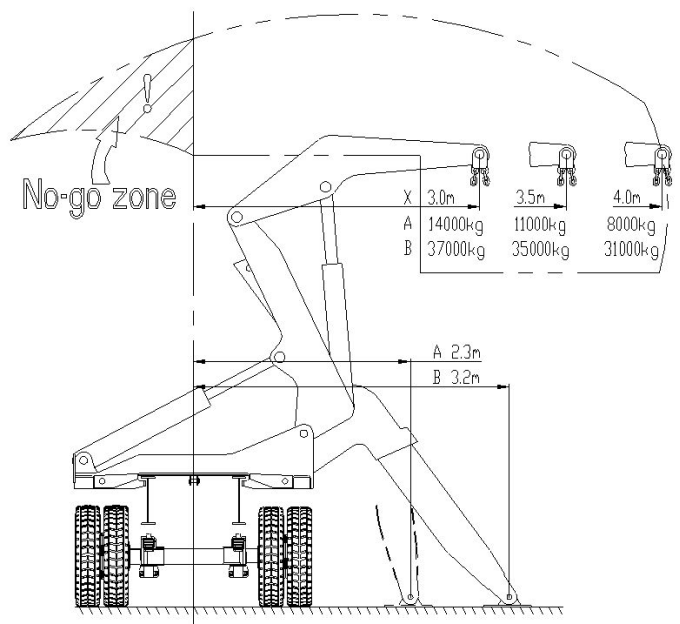

Max. lifting capacity	37000kg
Max. stabiliser outreach	3200mm
Max working range	4000mm
Overall height	2490mm
Overall width	2500mm
Overall length	1020mm
Max. pressure of hydraulic system	28MPa
Tare weight	7000kg
Trailer
Length	14100mm
Width	2480mm
Curb Weight	7.2 ton
Wheel base	8000mm+1350mm+1350mm
Pay Load	60 Ton
Suspension	Tri-axle mechanical suspension with 10-pcs leaf spring
Wheel Hubs	Cast steel, 10 studs
Tires	315/80R22.5, 12units
Axles	FUWA，3 axles, load capacity 13T
Brakes	Dual lines pneumatic brake system; T30/30+T30 air chamber; parking brake
Main Beam	I shape, Mild Alloy （Q345B） by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm
Cross Beam	Mild Alloy Q235B
King Pin	Size: 50# (2'') or 90#(3.5’’)
Landing Gear	Single side operation, Static capacity 28Ton
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint
Color	Optional
