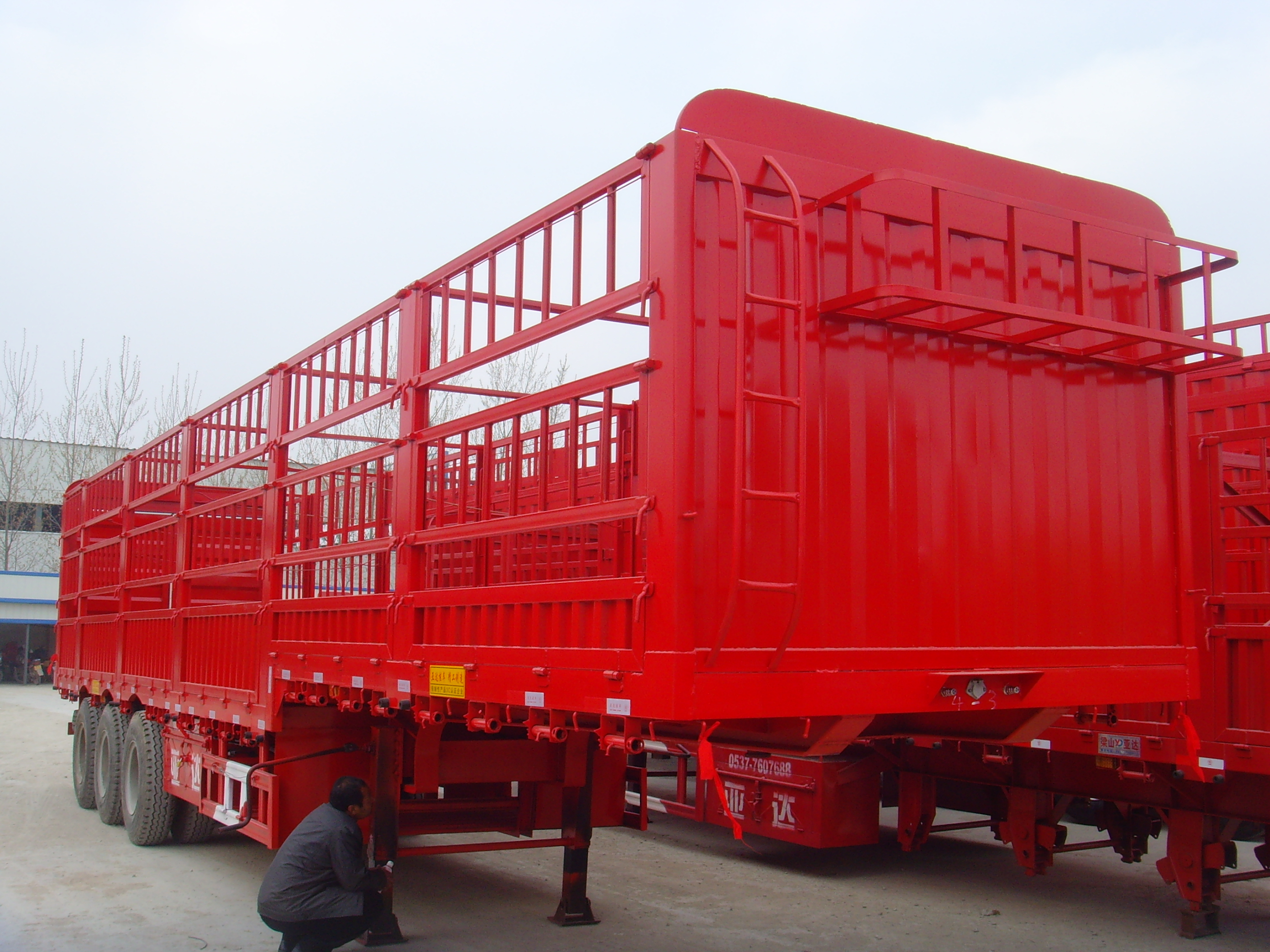

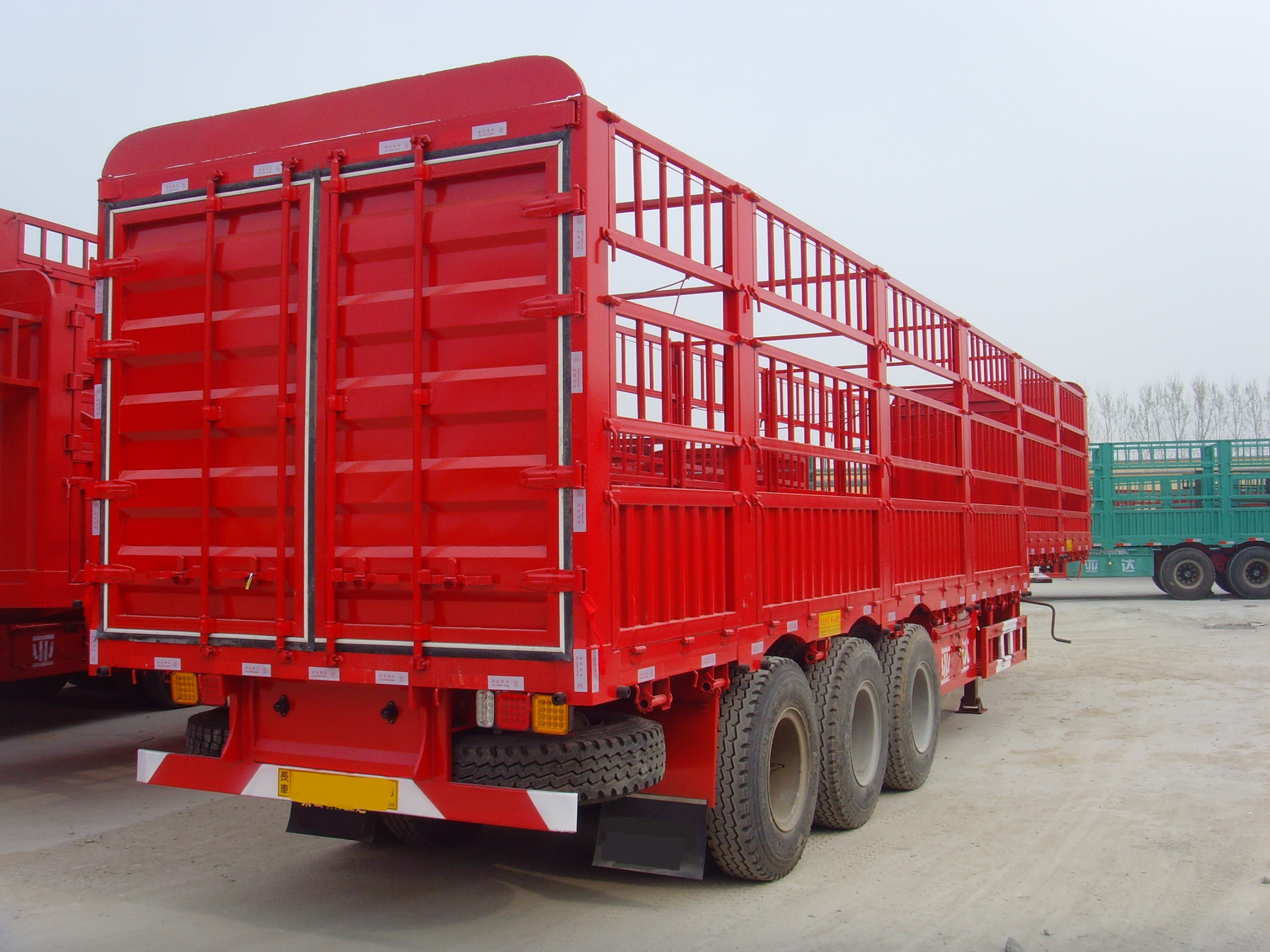

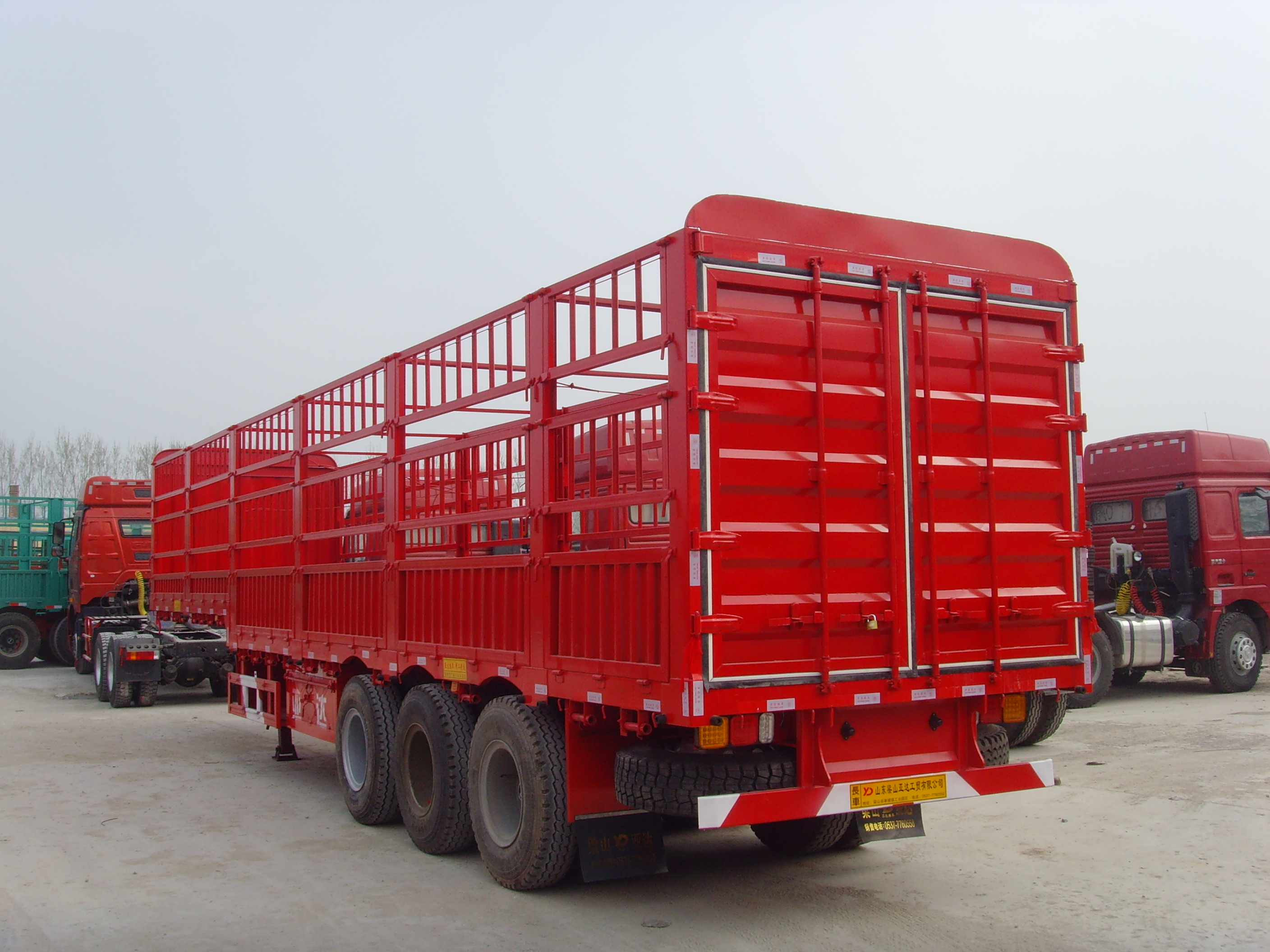

3 Axles Fence Semi Trailer , the multi-functional design can meet multiple different transportation needs of customers . TENDA always adhere to continuous innovation, put the needs of customers in the first place.
Our fence cargo trailer detachable fence and side wall design more convenient customer loading and off loading bags goods and other bulk cement cargo , remove the fence , the trailer design include container lock , can using as flatbed trailer to transport 20ft and 40ft container.
We provide custom service , our fence height can according to customer transport need to design , you also can choose double fence or single fence design . payload capacity from 40 tons to 60 tons for your choose.
Specifications
|
Type |
Gooseneck Stake Semi Trailer |
|
Total Length |
Approx 12,800 mm |
|
Total Width |
Approx 2,600 mm (including mud guard) |
|
Total Height |
Approx 3,850mm, adjustable according to the request |
|
King Pin Location |
Approx 972mm from the front face of the front bolster |
|
Wheelbase |
Approx 5,110mm+1310mm+1310+1310mm |
|
Landing Gear location |
2,420mm behind the king pin location |
|
Fifth wheel (King Pin) Height |
Approx 1,350mm with the chassis level |
|
Capacity |
60 tons |
|
Tare Weight |
Approx 9,900 kg (Tolerance 0~-4%) |
|
Max. Payload |
Approx 60,000 |
|
Gross Vehicle Weight |
Approx 69,900 kg |
|
Main Beam |
Mild Alloy Q235B is used for welded I-beam and (345MPa) is used for welded fabricated parts. Top 14mm, middle 10mm, bottom 16mm. |
|
Sidewall Dimension |
12500x2500x2400(Board 800+ Fence 1600)mm, Floor 3mm, side 1.5mm, adjustable according to request. |
|
Kingpin |
2” or 3.5’’ Brand: JOST. Made in China. |
|
Landing Gear |
Jost or Goldstone, Lifting capacity 30T and static load 80T. |
|
Suspension |
Tri-axles are American type mechanical spring suspension, the leaf spring is 10pcs. |
|
Axles |
3x13T, Fuwa, BPW, or Chinese famous brand. |
|
Rims |
9.00-20，12 pieces. 10 holes Steel rim, Made in China. |
|
Tires |
12.00R20, 12pieces. China First-level Brand, Made in China. |
|
Brake System |
Dual air brake system, WABCO or Haldex relay valve, none ABS brake system. |
|
Brake chamber |
Type 30/30 on the rear two axles, Type 30 on the first axle. |
|
Electrical System |
24 volt lighting system, 7-way receptacle, ISO standard. |
|
Spare tire carrier |
One set spare tire carrier |
|
Side guard |
None |
|
Tool Box |
One |
|
Reflector tape |
Side yellow color and rear red color reflector tap |
|
Mudguard |
Mudguard on top of tire. |
|
Painting & Logo |
As client ‘s request. |
