Our Advantages
1. TENDA Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.7. Hight Quality container locks, make sure the stable and safety of the loads.
| Dimension(mm) | 12500x2500x1550mm |
| Loading capacity(ton) | ≤60T |
| Axles | 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand |
| Tire | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
| Spring Leaf |
90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand D200T or Chinese brand 28tons(double-speed) |

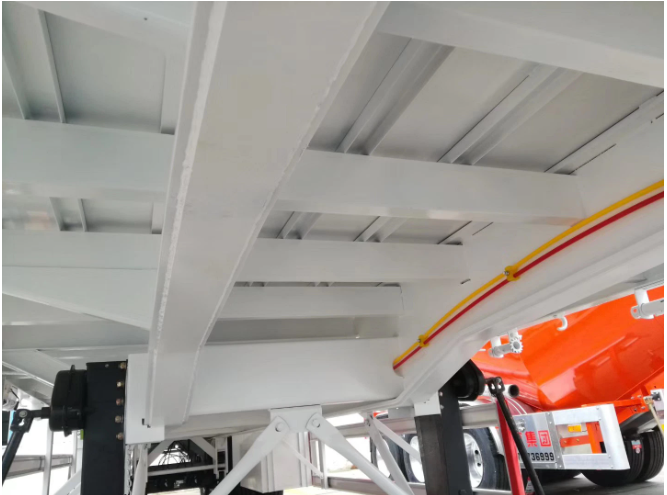

| Main Beam | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel |
| Side Beam | 16mm or 18mm steel channel (material: Q235 steel) |
| Platform | 3mm-thick checkered plate |
| Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
| Twist Locks | 4,8,12 sets (lifting or screw type) (specially intended for oversea market) |
| valve | WABCO valve (specially intended for oversea market) |
| ABS | Optional |
| Light | LED light (specially intended for oversea market) |
| Voltage | 24V |
| Socket(Receptacle) | 7-pin Socket (for 7 wire harness) |
| Tool Box | 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
