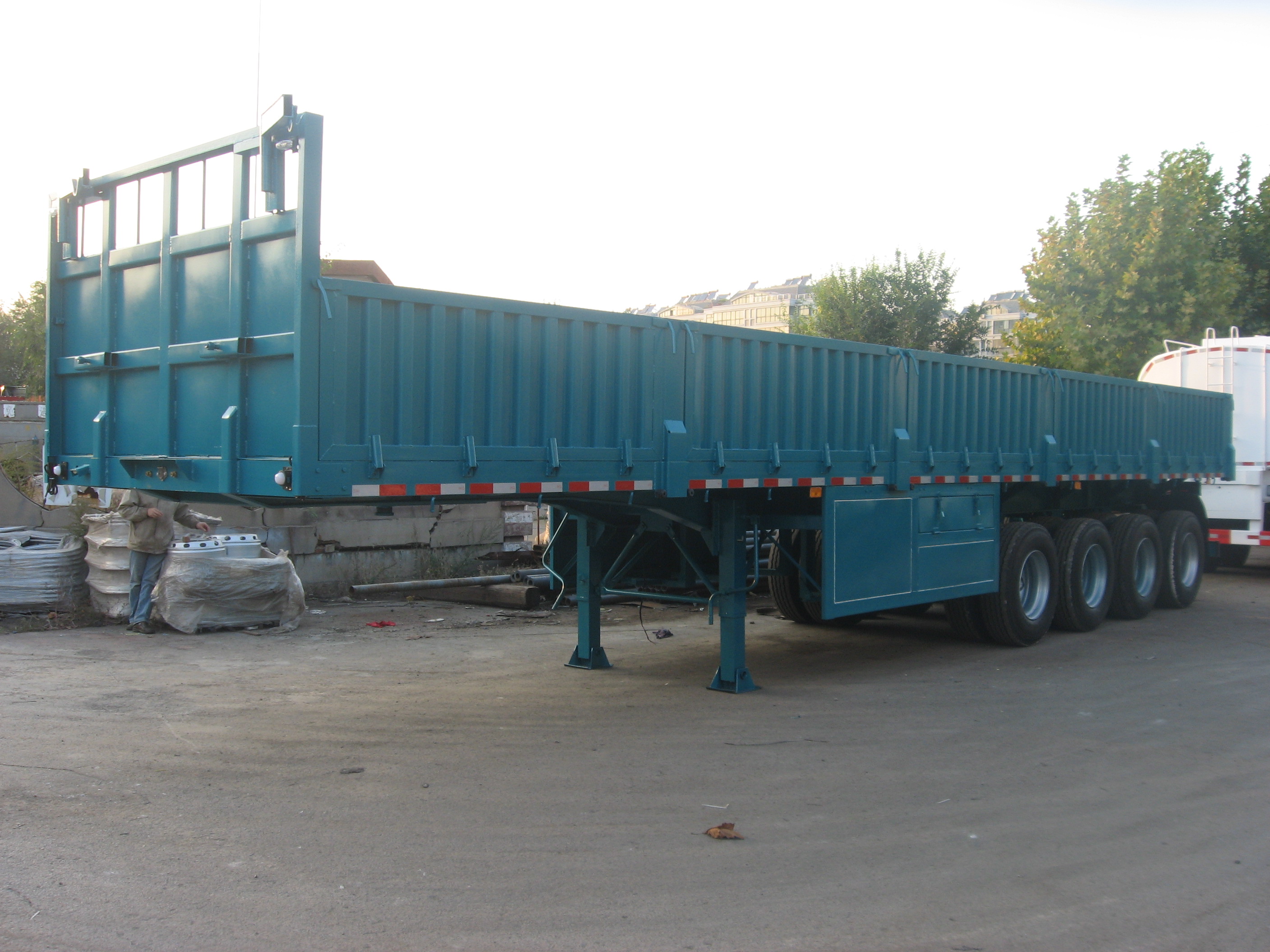

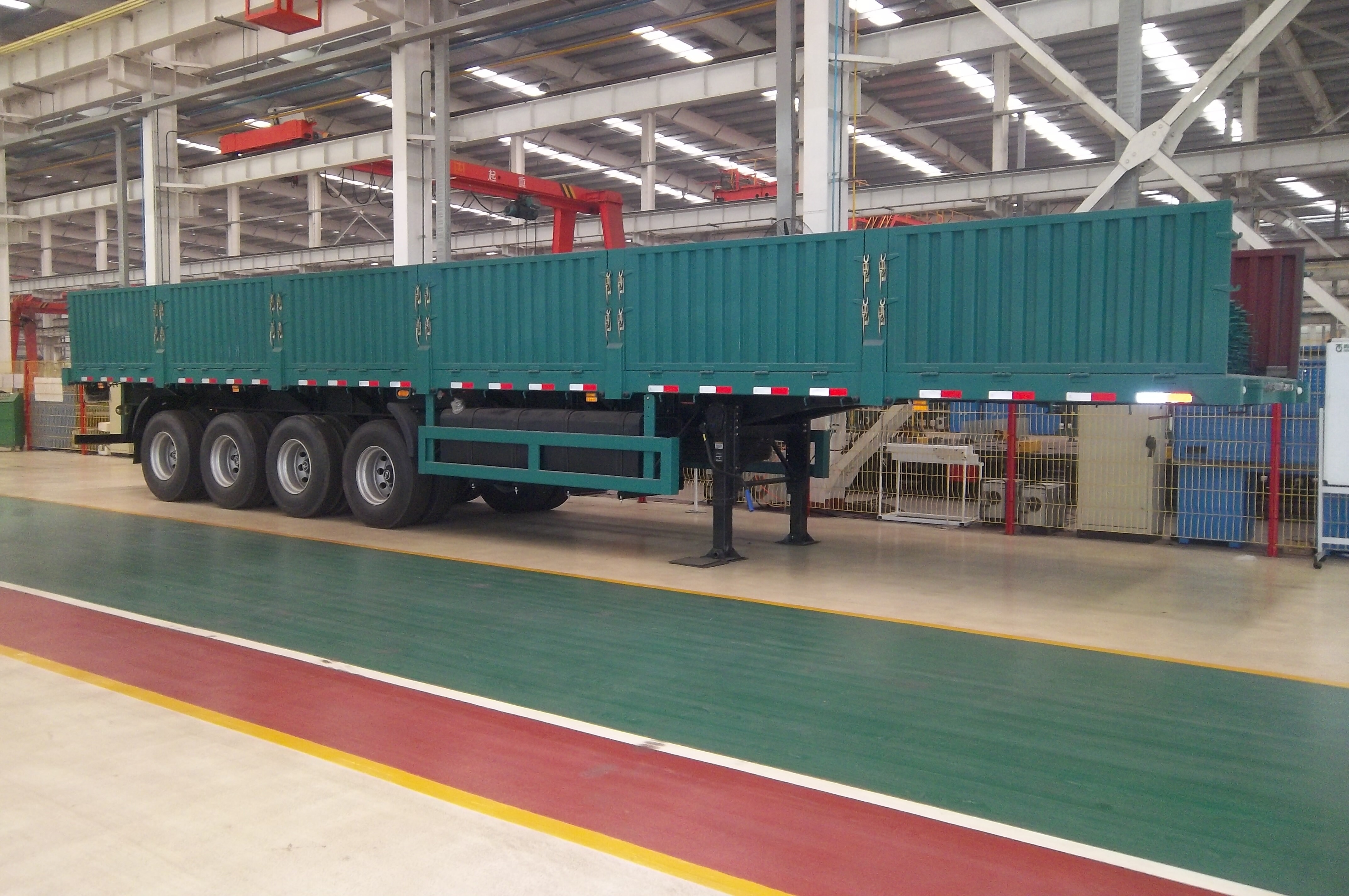

4 Axles Sidewall Semi Trailer

11 month ago

71 0

Shandong Tenda Vehicle Co. LTD

 12 month year

Product details

4 axles flatbed trailer become more and more popular in Africa market now.

Container transport semi - trailer can transport containers and non - dangerous goods semi - trailer structure. The subjective structure of the car is straight beam or front neck of the goose neck style. Mainly used for ships, ports, routes, roads, transit stations, Bridges, tunnels, multimodal transport supporting logistics system.

advantages:
1. Side wall trailer overall body is made of high quality steel, advanced technology, strict production process, reliable performance and reasonable structure.
2. Cross beam structure, longitudinal beam can generally choose straight beam or gooseneck beam.

3. Suspension adopts non-vertical steel plate pressed rigid suspension, made of tandem leaf springs and suspension bearings, with reasonable structure, high rigidity and strength, used to support the load to mitigate the impact.

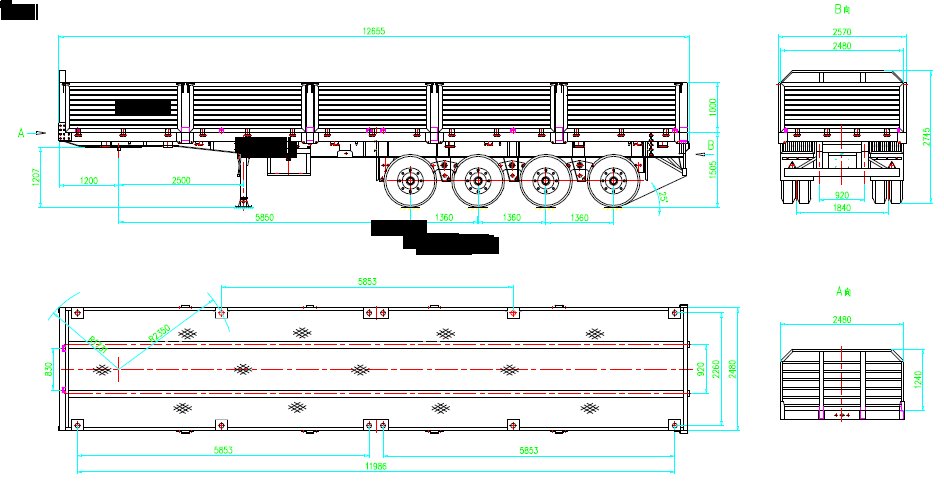

Type	4 Axles Sidewall Semi Trailer
Total Length	Approx 12,500 mm
Total Width	Approx 2,550 mm (including mud guard)
Total Height	Approx 2,460mm
King Pin Location	Approx 972mm from the front face of the front bolster
Wheelbase	Approx 5,540mm+1310mm+1310+1310mm
Landing Gear location	2,420mm behind the king pin location
Fifth wheel (King Pin) Height	Approx 1,350mm with the chassis level
Capacity	70 tons
Tare Weight	Approx 8,900 kg (Tolerance 0~-4%)
Max. Payload	Approx 70,000
Gross Vehicle Weight	Approx 78,900 kg
Main Beam	Mild Alloy Q235B is used for welded I-beam and (345MPa) is used for welded fabricated parts. Height 500mm, Top 14mm, middle 10mm, bottom 16mm.
Side wall Dimension	12500x2500x600mm, can be adjusted according to the customer’s request. And the side wall can be removed.
Kingpin	2” or 3.5’’ Brand: JOST. Made in China.
Landing Gear	Jost 28T landing gear, Single side operation
Suspension	4 axles are American type mechanical spring suspension, the leaf spring is 10pcs.
Axles	4x16T, Fuwa, BPW, or Chinese famous brand.
Rims	9.00-20，16 pieces. 10 holes Steel rim, Made in China.
Tires	12.00R20, 16pieces. China First-level Brand, Made in China.
Brake System	Dual air brake system, WABCO or Haldex relay valve, none ABS brake system.
Brake chamber	Type 30/30 on the rear two axles, Type 30 on the first axle.
Electrical System	24 volt lighting system, 7-way receptacle, ISO standard.
Spare tire carrier	Two sets spare tire carrier
Side guard	None
Tool Box	One
Reflector tape	Side yellow color and rear red color reflector tap
Mudguard	Mudguard on top of tire.
Painting & Logo	As client ‘s request.
