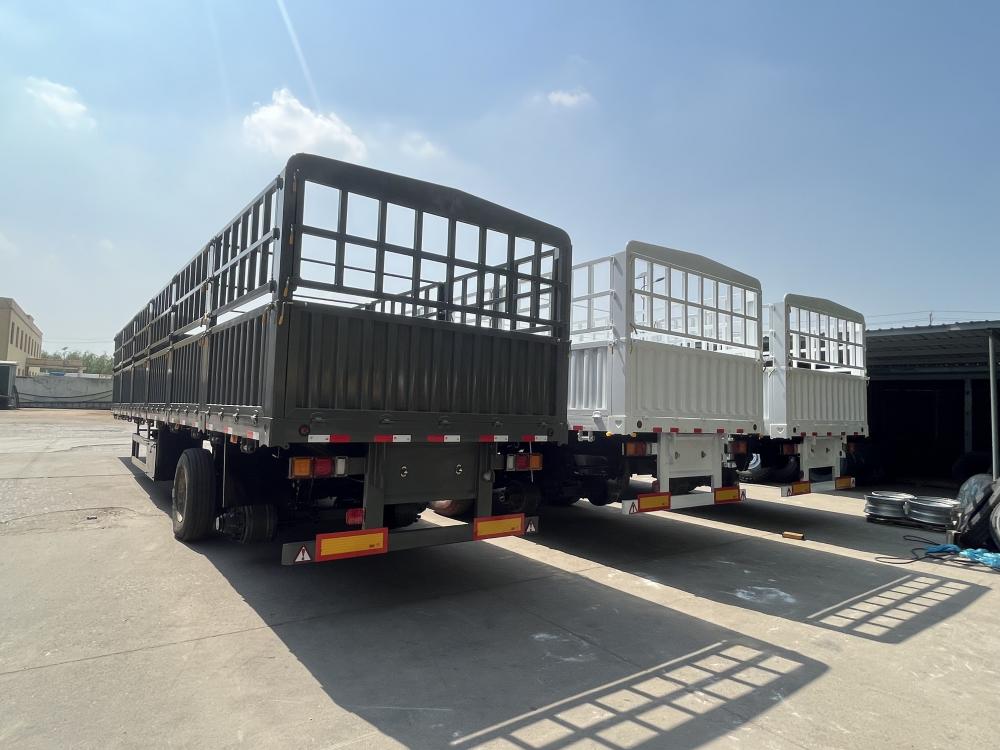

Fence cargo truck trailer is a common semi-trailer transport method, shipping stations, courier companies indispensable means of transport. 4 axle stake semi trailer for the delivery of simple goods, such as: vegetables, fruits, clothes, appliances, and other daily necessities. China stake semi trailers can also be used to transport sheep, cattle and other animals.

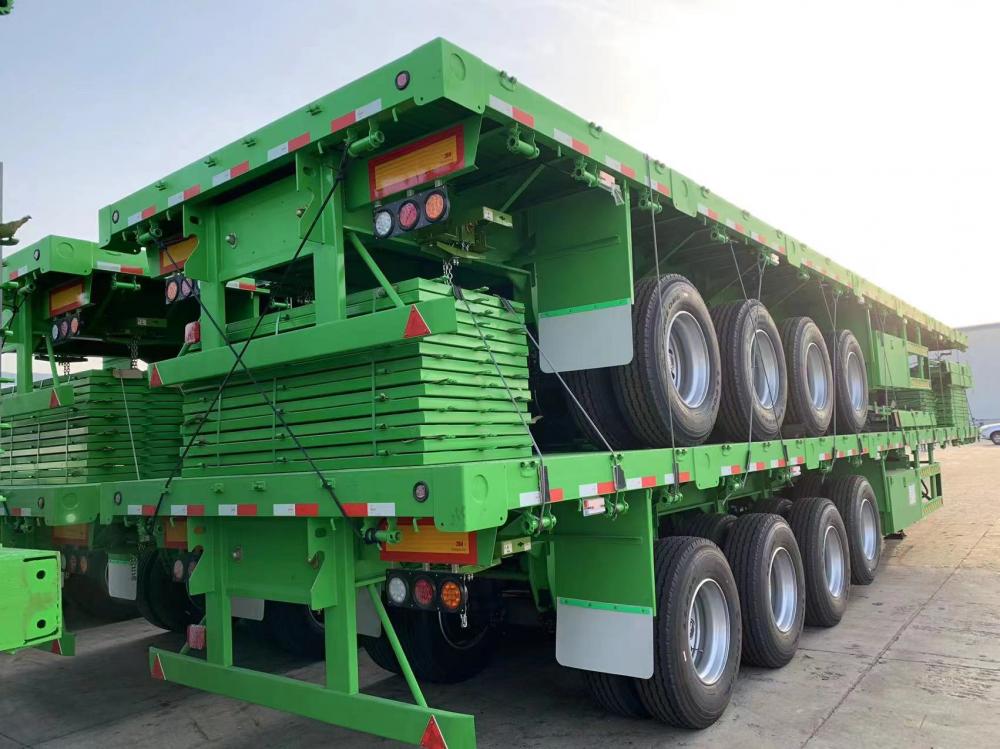

Fence flatbed trailer can be used to load the containers after adopt the container locks for it.
TENDA production the 4 axle fence semi trailer adopts high-quality material, important accessories and configuration all adopt domestic and aboard brands. Main beam adopts Q345 high strength steel, stability and safety when operating in harsh road conditions. This makes the product long service time, save maintenance costs and improve operating efficiency.
Type
4 Axles Fence Semi Trailer
Total Length
Approx 12,800 mm
Total Width
Approx 2,600 mm (including mud guard)
Total Height
Approx 3,850mm, adjustable according to the request
King Pin Location
Approx 972mm from the front face of the front bolster
Wheelbase
Approx 5,110mm+1310mm+1310+1310mm
Landing Gear location
2,420mm behind the king pin location
Fifth wheel (King Pin) Height
Approx 1,350mm with the chassis level
Capacity
80 tons
Tare Weight
Approx 8,900 kg (Tolerance 0~-4%)
Max. Payload
Approx 80,000
Gross Vehicle Weight
Approx 88,900 kg
Main Beam
Mild Alloy Q235B is used for welded I-beam and (345MPa) is used for welded fabricated parts.
Top 14mm, middle 10mm, bottom 16mm.
Sidewall Dimension
12500x2500x2400(Board 800+ Fence 1600)mm, Floor 3mm, side 1.5mm, adjustable according to request.
Kingpin
2” or 3.5’’ Brand: JOST. Made in China.
Landing Gear
Jost or Goldstone, Lifting capacity 30T and static load 80T.

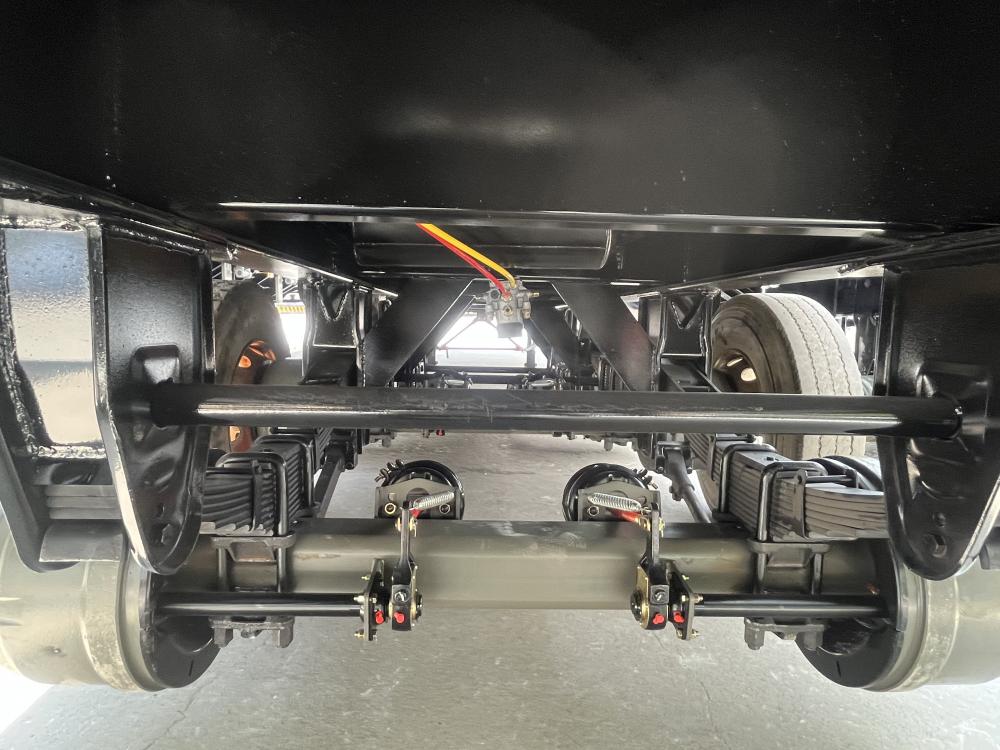

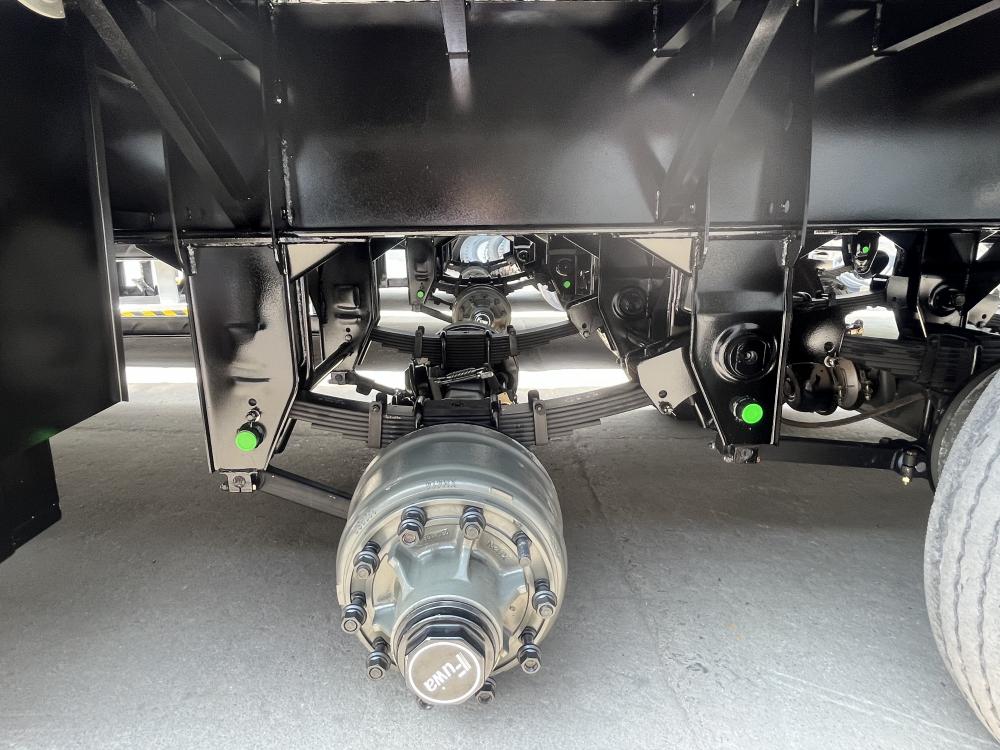

Suspension
The First axle is air suspension, which can be lifted. Rear 3 axles are American type mechanical spring suspension, the leaf spring is 10pcs.
Axles
4x16T, Fuwa, BPW, or Chinese famous brand.
Rims
9.00-20，12 pieces. 10 holes Steel rim, Made in China.
Tires
12.00R20, 12pieces. China First-level Brand, Made in China.
Brake System
Dual air brake system, WABCO or Haldex relay valve, none ABS brake system.
Brake chamber
Type 30/30 on the rear two axles, Type 30 on the first axle.
Electrical System
24 volt lighting system, 7-way receptacle, ISO standard.
Spare tire carrier
One set spare tire carrier
Side guard
None
Tool Box
One
Reflector tape
Side yellow color and rear red color reflector tap
Mudguard
Mudguard on top of tire.
Painting & Logo
As client ‘s request.
