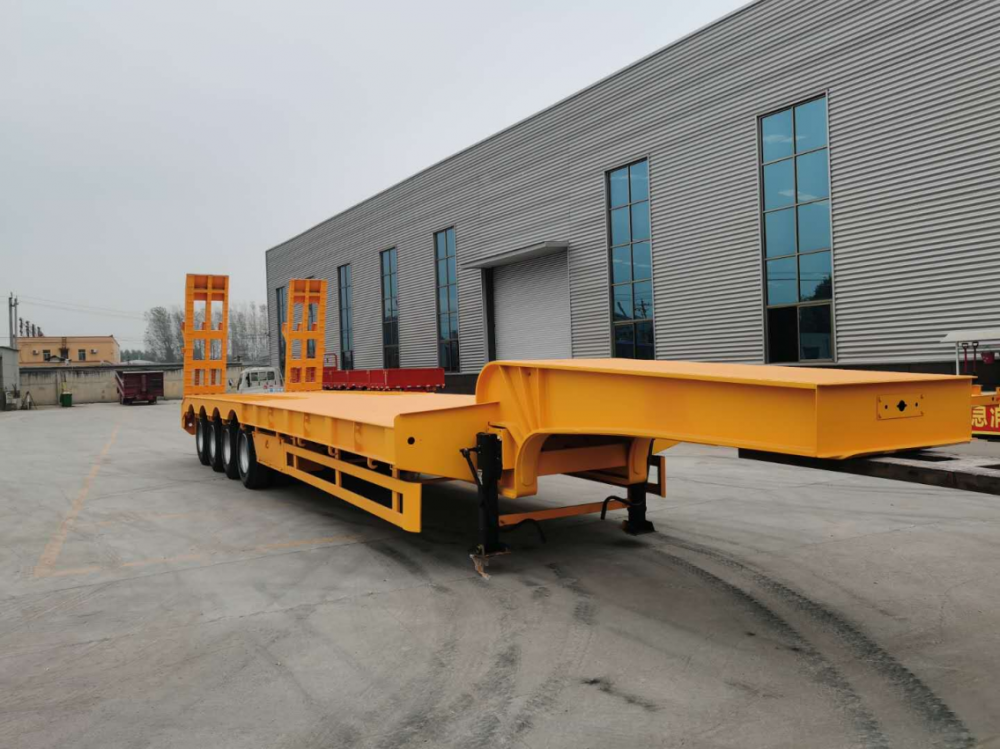

4 Axles Lowbed Semi Trailer

11 month ago

25 0

Shandong Tenda Vehicle Co. LTD

 12 month year

Product details

Let's take a look at the unique features of TENDA lowbed trailers.

First of all, in terms of specifications, we can customize various specifications according to customer needs. The common length is 13 meters, and 12-16 meters are optional. The width is 3 meters, and there are also 2.6 meters or 3.2 meters. The number of axles is mostly 3 axles and 4 axles. According to different load requirements and national policies, we will recommend the most suitable number of axles for you.
In terms of details, the most intuitive thing is that the gooseneck and cargo platform of this 4axle lowboy trailer truck are all welded by thickened steel plates. Therefore, our gooseneck trailer is stronger than ordinary ones and has better load-bearing performance . On both sides of the loading platform, we have installed foldable wideners for customers to increase the width of the loading platform. They are used with backing boards to facilitate the transportation of wider cargo. The size of the widening equipment is 0.25 meters and 0.3 meters can be selected.

Welcome to contact us to customize lowbed semi trailer.

Type	4 Axles Lowbed Semi Trailer
Total Length	15,000mm
Total Width	3,000mm
Total Height	3,300mm
Flatbed Dimension	10,000x3,000mm
King Pin Location	Approx 972mm from the front face of the front bolster
Wheelbase	Approx 7,650mm+1310mm+1310+1310mm
Landing Gear location	2,420mm behind the king pin location
Fifth wheel (King Pin) Height	Approx 1,350mm with the chassis level
Capacity	80 tons
Tare Weight	Approx 10,500 kg (Tolerance 0~-4%)
Max. Payload	Approx 80,000
Gross Vehicle Weight	Approx 90,500 kg
Main Beam	I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is 25 mm, down plate is 25 mm, middle plate is 16 mm
Kingpin	2” or 3.5’’ Brand: JOST. Made in China.
Landing Gear	Jost or Goldstone, Lifting capacity 30T and static load 80T.
Suspension	The First axle is air suspension, which can be lifted. Rear 3 axles are American type mechanical spring suspension, the leaf spring is 10pcs.
Axles	4x16T, Fuwa, BPW, or Chinese famous brand.
Rims	9.00-20，16 pieces. 10 holes Steel rim, Made in China.
Tires	12.00R20, 16pieces. China First-level Brand, Made in China.
Brake System	Dual air brake system, WABCO or Haldex relay valve, none ABS brake system.
Brake chamber	Type 30/30 on the rear two axles, Type 30 on the first axle.
Electrical System	24 volt lighting system, 7-way receptacle, ISO standard.
Spare tire carrier	One set spare tire carrier
Side guard	None
Tool Box	One
Reflector tape	Side yellow color and rear red color reflector tap
Mudguard	Mudguard on top of tire.
Painting & Logo	As client ‘s request.
