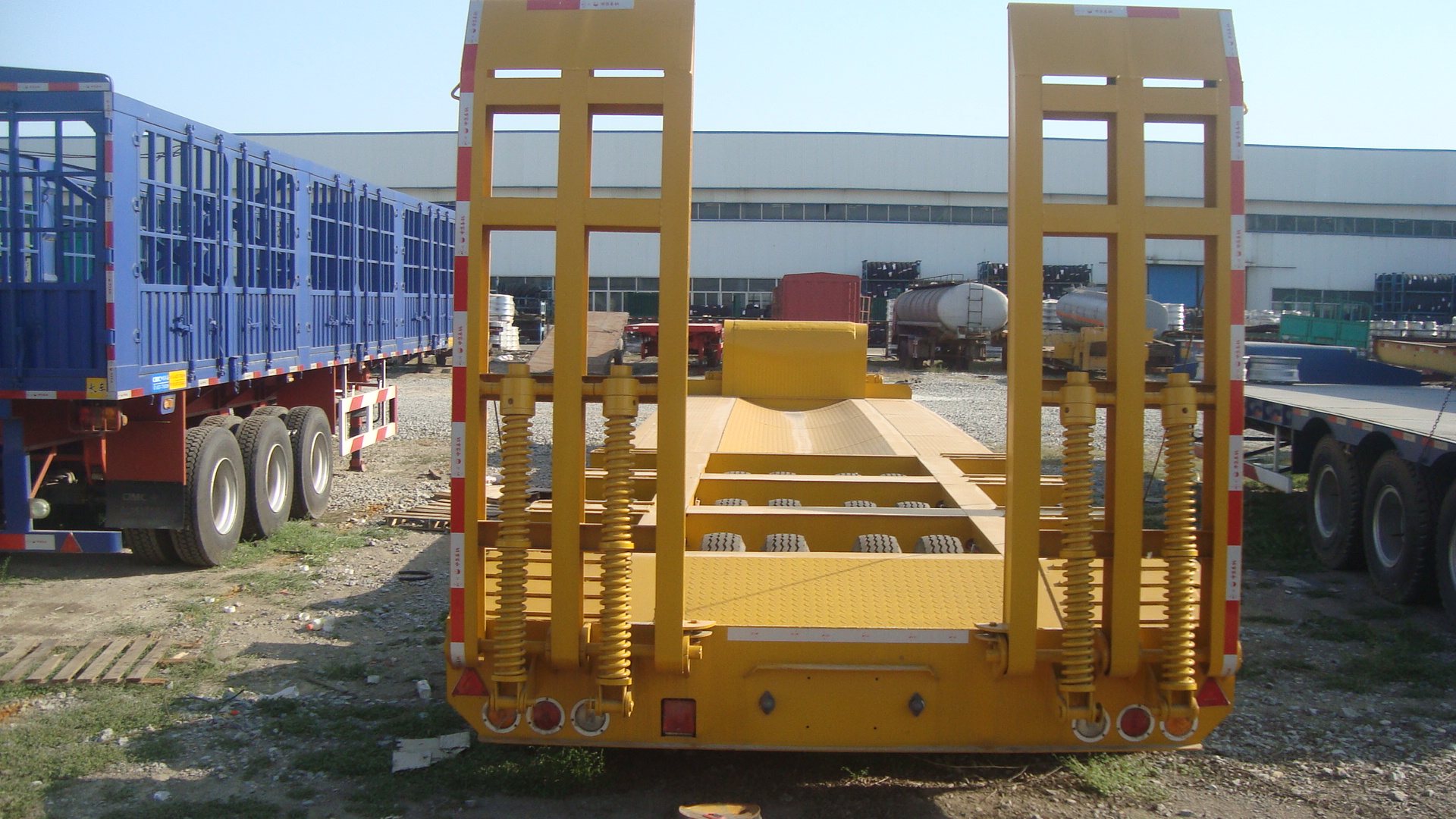

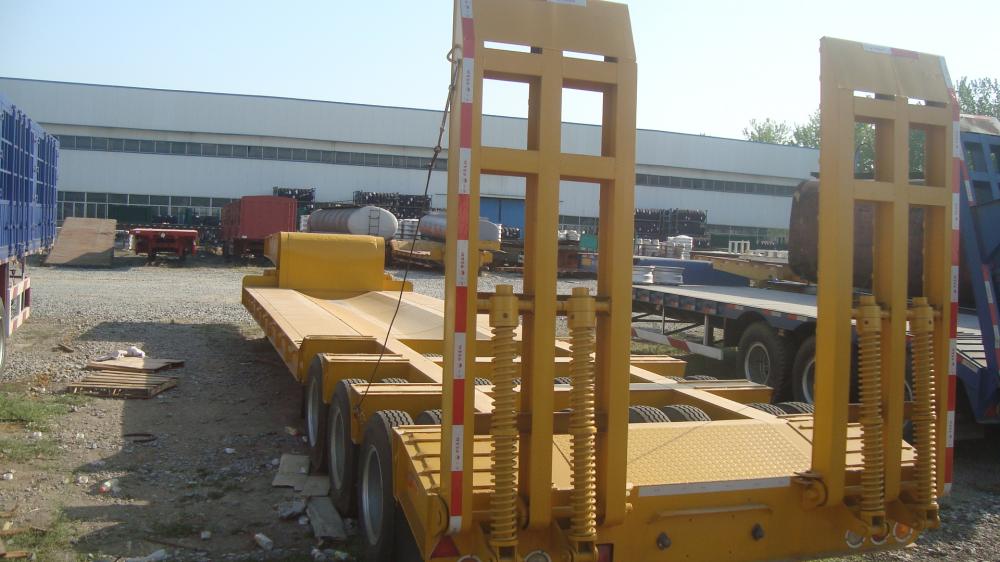

Heavy machine transport 3 line 6 axle 100 ton lowbed trailer
As one of Tenda company's most successful trailer ranges, our low loaders are widely recognized for their strength and durability. Models include the 30 Ton two axles to 100 ton four axles. Our company also manufactures multi axle low boy trailer to carry more than 100 tons which provides flexibility in transportation. Tenda Trailer Company provides a comprehensive range of low bed trailers, to meet all heavy haulage requirements.

Low Loader range has been designed primarily for heavy construction machines like bulldozers, excavators and cranes, but depending on user requirements can be adapted to suit commercial and agricultural vehicles when necessary.

We have diverse special low bed semi trailer, like the 3 lines 6 axles low bed semi trailer, 4 lines 8 axles low bed semi trailer, 5 lines 10 axles low bed semi trailer for your reference. You can choose whether the tire leaks or does not leak. We will do the load test before arrange delivery for our customers.

Type	3 Lines 6 Axles Low Bed Trailer
Overall Dimension	16000mm3000mm3250mm
Flatbed Dimension	7450mm*3000mm
Tare Weight	13000kg	Pay Load	150 tons
King Pin Setting	450mm	Track	2160mm
Wheel base	11430mm+1310mm+1310mm	Loading Surface Height	850mm
Running Gear
Suspension	10-pcs leaf spring suspension with equalizer beam
Tires	8.25R20--14, 24 units
Axles	3 Lines 6 Axles
Brakes	Dual lines pneumatic brake system, parking brake
Under Frame
Main Beam	I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 530 mm, upper plate is 25 mm,down plate is 25 mm,middle plate is 14 mm
King Pin	Size: 50# (2'') or 90#(3.5’’)
Landing Gear	FUWA Brand. Static capacity 28Tons
Flatbed Floor	Checkered sheet, thickness 4mm
Rear Ladders	Double Spring power-assisted
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Paint	Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request
Others
Tool Box	1 Set
Spare tire bracket	2 Sets
