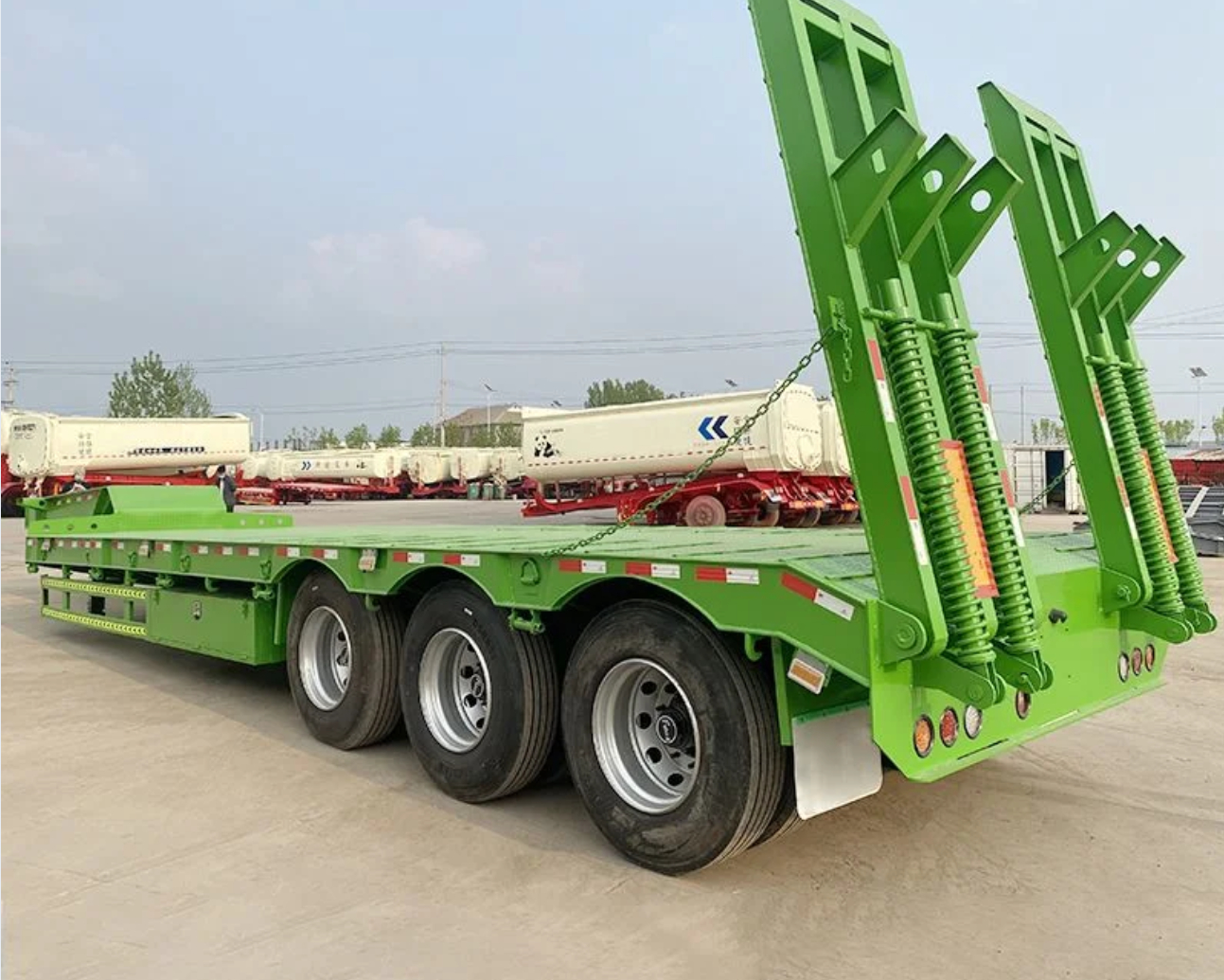

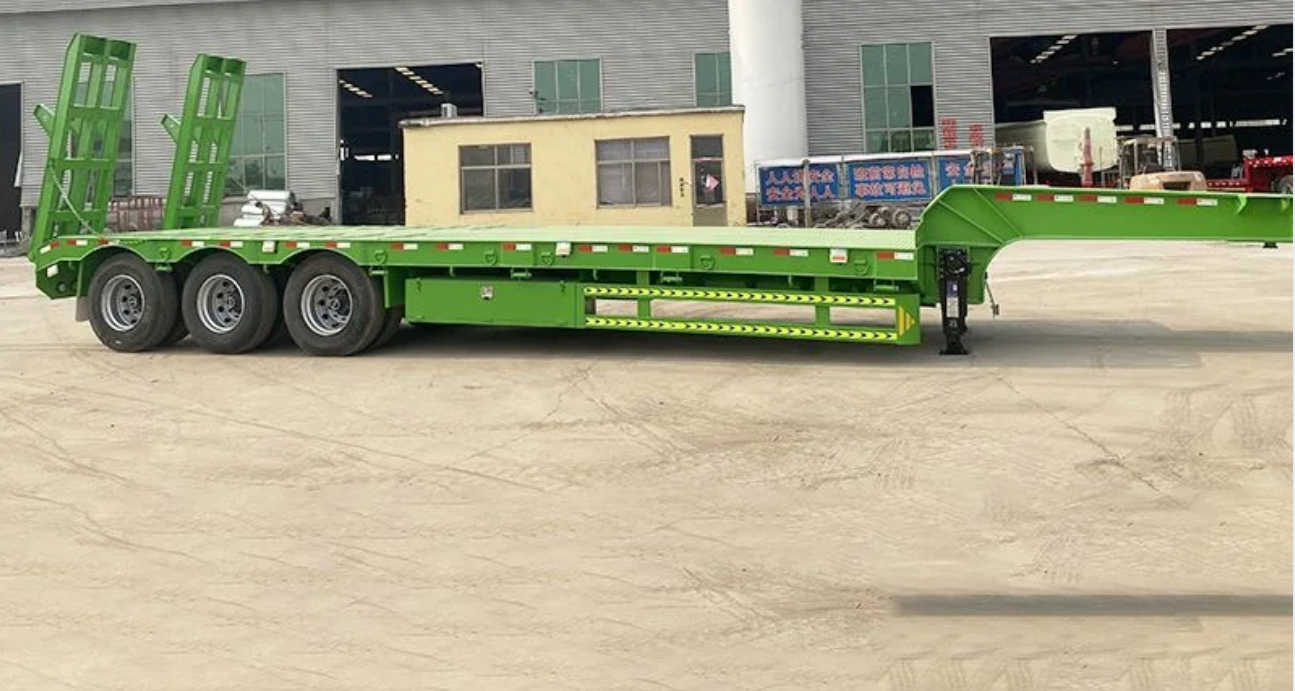

3 Axles Lowbed Semi Trailer

11 month ago

29 0

Shandong Tenda Vehicle Co. LTD

 12 month year

Product details

Our advantages:

1. The series of low bed trailers have flat-plate, concave beam and exposed tire structures, and the longitudinal beams are straight or gooseneck. The frame is stepped and the longitudinal beam section is I-shaped. It has the characteristics of high rigidity and high strength.

2. The main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various types of engineering machinery, large equipment and steel.

3. The electrical system of a lowbed trailer is composed of seven-core sockets, cables, gas lines, various lamps, etc. It is used for lighting, safety warning, and air supply for brakes. Generally, if you look at the regularity of electrical wiring, you basically know how the quality of this heavy transport trailer.

4. The support device of the semi-trailer is mainly used to support the low flatbed trailer when it is detached, and is composed of legs and connecting brackets.

5. The low bed trailer for sale protection device consists of side protection and rear protection to protect pedestrians and other vehicles.

6. Other accessories on the semi-trailer include toolboxes, spare tire racks, etc. There are also some small accessories such as tight ropes and rope hooks, which are very functional accessories, which need to be selected according to their own types of goods.

Type	3 Axles Lowbed Semi Trailer
Overall Dimension	13500mm30003300mm
Flatbed Dimension	9000mm*3000mm
Pay Load	40 tons-60 tons
Running Gear
Suspension	Tri-axle 10-pcs leaf spring suspension with equalizer beam
Tires	315/80R22.5, tubeless tires, 12 pieces
Axles	3 axles, 13T capacity/axle, Fuwa, BPW, or Chinese famous brand
Brakes	Dual lines pneumatic brake system, parking brake
Under Frame
Main Beam	I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is 22 mm, down plate is 22 mm, middle plate is 14 mm
Cross Beam	Mild Alloy Q235B, 14# channel beam
King Pin	90#(3.5'') or 50# (2.0''), JOST Brand
Landing Gear	Static capacity 28 Tons
Flatbed Floor	Checkered sheet, thickness 5 mm
Rear Ladders	Spring power-assisted
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Others
Tool box	1 piece
Spare tires carrier	2 pieces
Color	Optional (White, Blue, Yellow, Green...)
