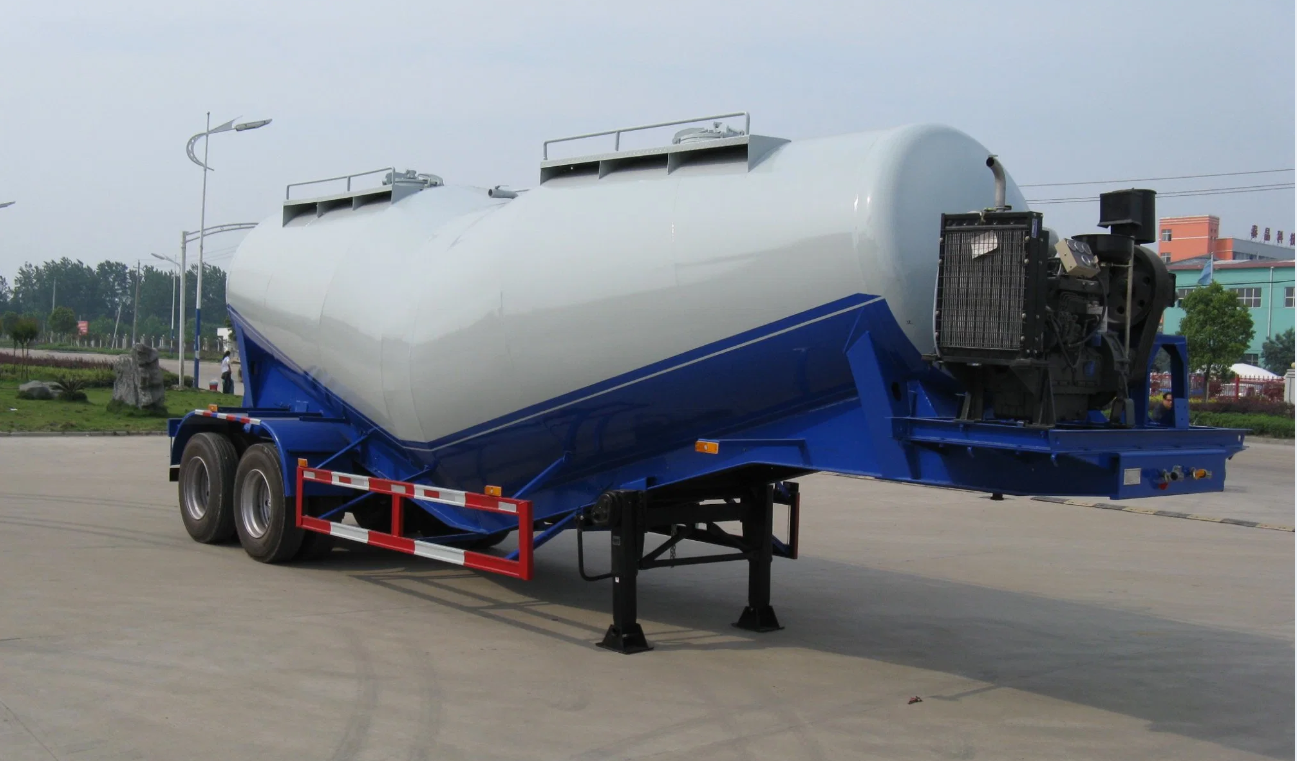

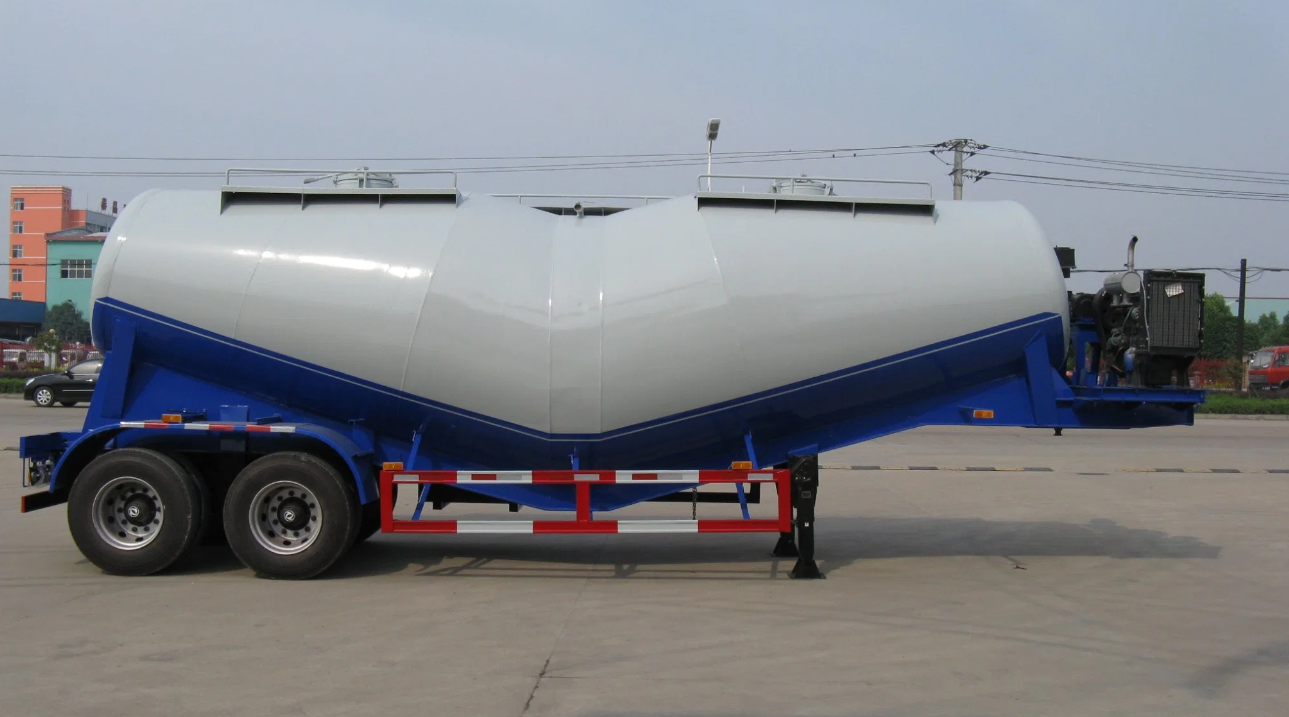

bulk cement tank semi trailer

2 year ago

37 0

Shandong Tenda Vehicle Co. LTD

 2 year year

Product details

Distinguishing Features:
---We adopt the advanced 3D design software to design our effective tank volume larger and rational design .Tide area fluidized bed with large angle of tank makes unloading faster and with lower residual .
---We adopts high strength wear-resistant steel 620JJ as tank body material .This material 620JJ is three times as strong as the others. the trailer adopted this material uses for more than 10 years in general , the service life is two times as length as ordinary steel material 's trailer .
---We adopt the felt-board machine for welding the tank body.It realized one-time forming .The high quality welds ensure no air leak,and with long service life .
---Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.

Type	bulk cement tank semi trailer
Dimension	9.9x2.55x4.05m
Total Volume	40 Cubic Meters
Main Beam	Enhanced
Material	Q235
Tanker Body Material	4.00mm
End Plate	5.00mm
Diesel Engine	With, Model: Weichai 4102
Compressor	With 12m³
Manhole Cover	Diameter: 500mm
Discharging Valve	Diameter is 3 inches
Discharging Pipe	3 or 4 inches rubber hose, 1pcs, 6m/each
Cat Walk	With
Chassis
Main Beams	Welding Design
Axle	3 x13 T
Landing Gear	28T
King Pin	JOST 3.5 inch bolt-in king pin
Suspension	Mechanical Suspension (Germany or America type)
Leaf Spring	90mm(W)×13mm(Thickness)×10(Layer)
Pneumatic Braking System	Dual lines pneumatic brake system; T30/30+T30 air chamber; parking brake
Tire	12.00R20, radial tires x12 pieces
Painting	Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive prime, 2 coats of final paints
Accessories	One standard tool box, One spare tire carrier
