1. Safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the aluminum tanker trailer is equipped with an emergency shut-off valve.
2. The body of aluminum tanker trailer is automatically welded both with the large-scale welding machine and manual welding.
3. Water filled test equipment Water tank: To ensure the high sealed of tanker body and avoid the leaks oil.
4. The waved board reduces the impact of the liquid on the tanker.
5.Complete Chassis sand blasting to clean rust, one coat of anti-corrosive prime, two coats of final paint
6. We adopt famous brand parts for our aluminum tanker trailer tank trailer, it saves costs & ensures long-time service.
Type

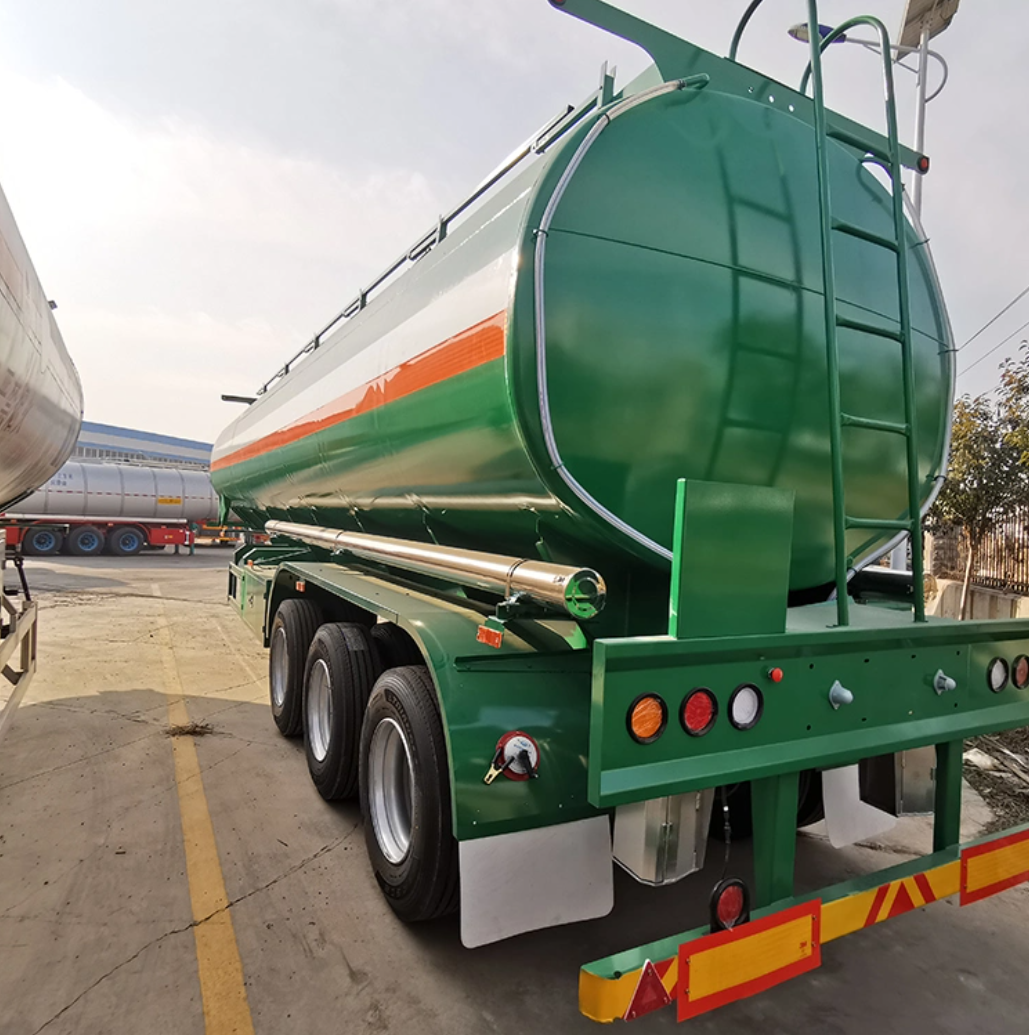

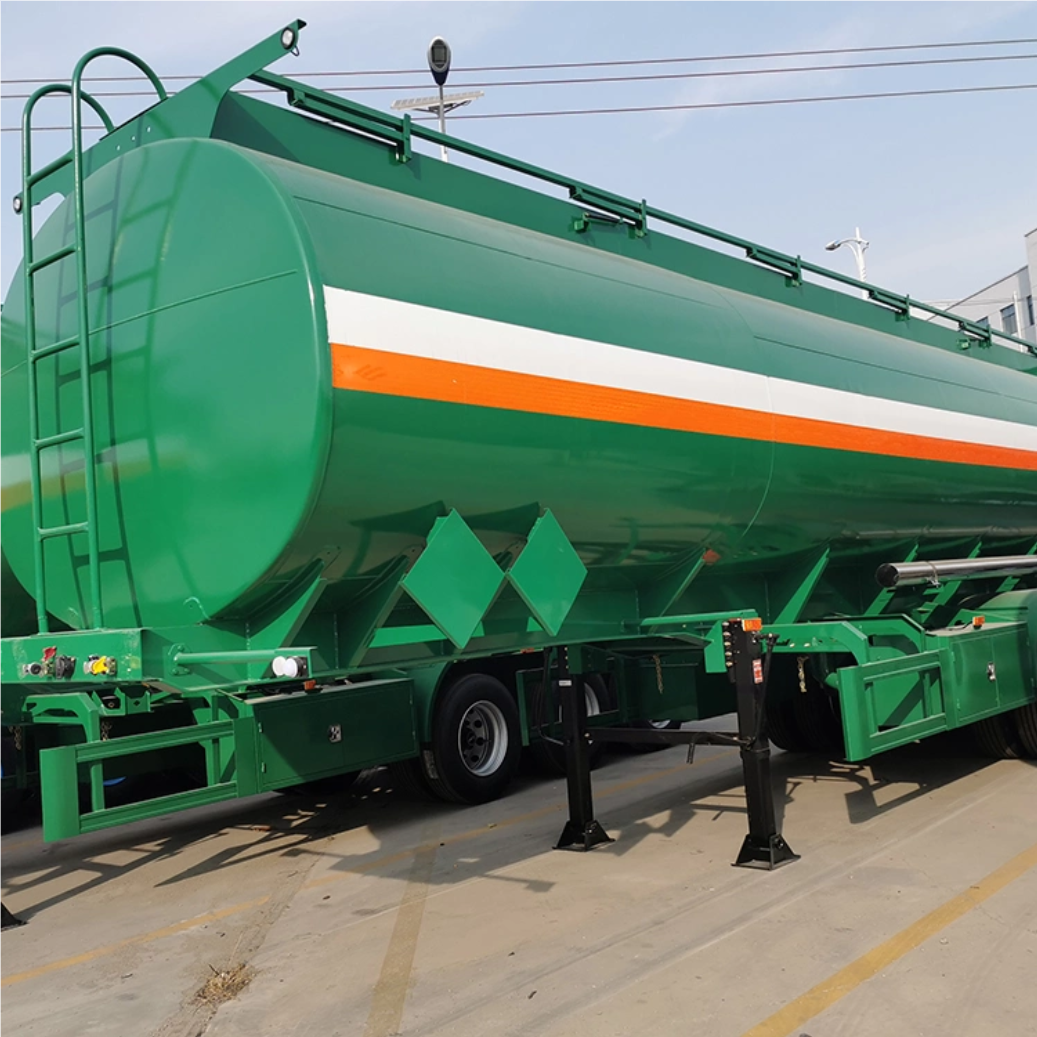

3 Axle Fuel Tank Semi Trailer
Overall Dimension
12500mm*2500*3950mm
Tank Capacity
45,000L, 3 compartments
Total Volume(m3)
45
Tank Body
The tanker body made of 5 mm steel plate,
the foreside head and back side head made of 6 mm steel plate, The shape is Elliptical Or Square. Material is carbon steel.
Equipment
1. With 3 Explosion proof Manhole Covers.
2. With 3 units Subsea Valve.
3. With 5’’ rubber hose, 2 pcs, 6m long discharging pipe.
4. With ladder installed at the rear of the tank body.
5. Steel walkway on top of the tank made of antiskid plate.
6. Foldable lifting Handrail fixed on the top of tank.
Suspension
Tri-axle 10-pcs leaf spring suspension with equalizer beam
Tires
315/80R22.5, tubeless tires, 12 pieces
Axles
3 axles, 13T capacity/axle, Fuwa, BPW, or Chinese famous brand
Brakes
Dual lines pneumatic brake system, parking brake
Under Frame
Main Beam
I shape, Mild Alloy (Q345) by Automatic submerged arc welding.
The height of the beam is 500 mm, upper plate is 14 mm, down plate is 16 mm, middle plate is 8 mm
Cross Beam
Mild Alloy Q235B, 14# channel beam
King Pin
90#(3.5'') or 50# (2.0''), JOST Brand
Landing Gear
Static capacity 28 Tons
Flatbed Floor
Checkered sheet, thickness 5 mm
Rear Ladders
Spring power-assisted
Electrical & Paint
Lights & Reflectors
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring
24V, 6 lines
Others
Tool box
1 piece
Spare tires carrier
1 piece
Color
Optional (White, Blue, Yellow, Green...)
![]()
