Manhole cover: The heavy fuel tanker semi trailer for sale manhole cover is specially designed, it has many functions, which can guarantee the safety of the fuel tanker prices to a certain extent.
Safety valve: An important component of the fuel tanker trailer for sale in nigeria manhole cover is the safety valve. The valve is used to automatically regulate the internal pressure of the tank to ensure the safety of the fuel tanker trailer for sale in nigeria and also to reduce the volatilization of oil.

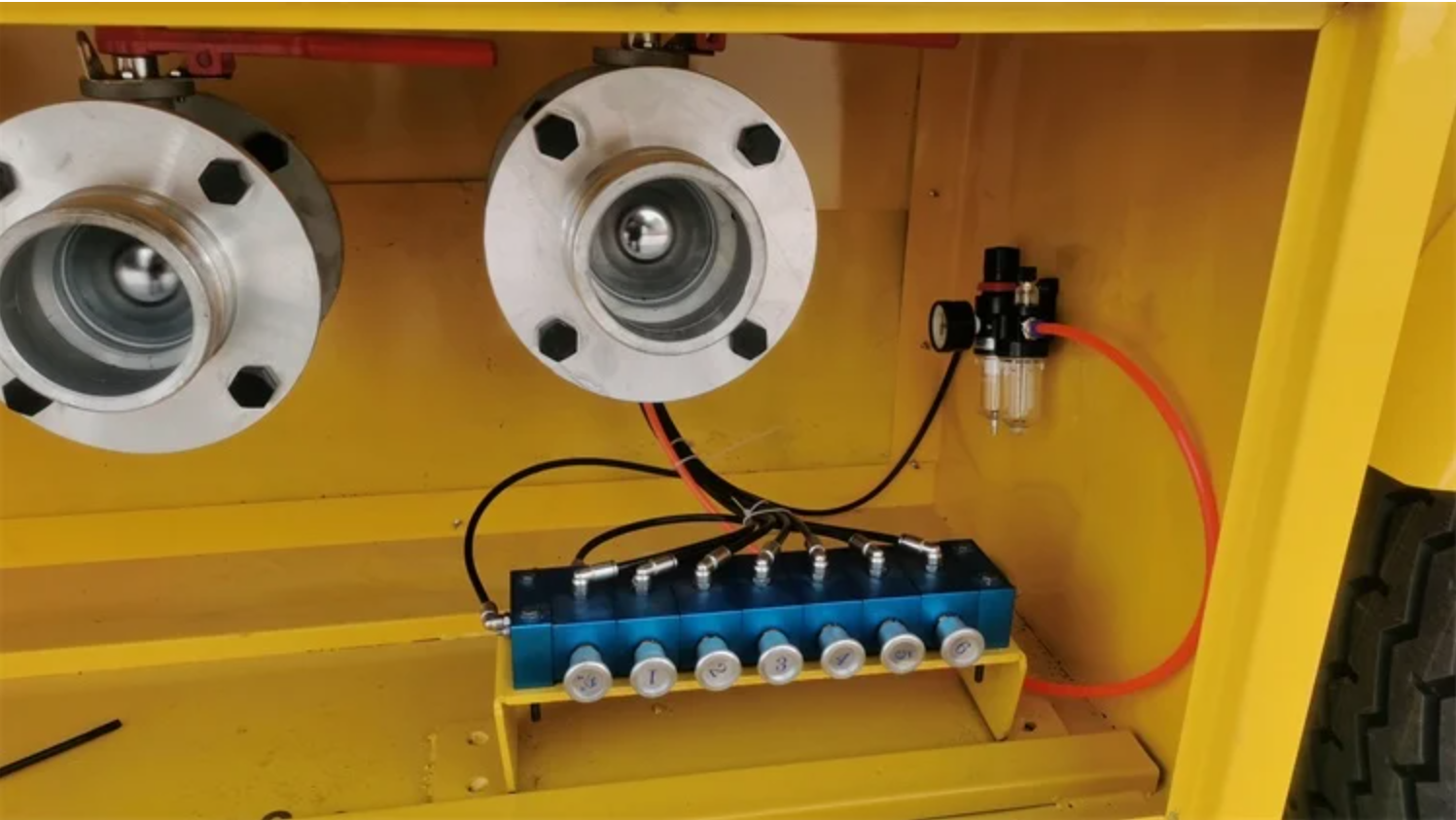

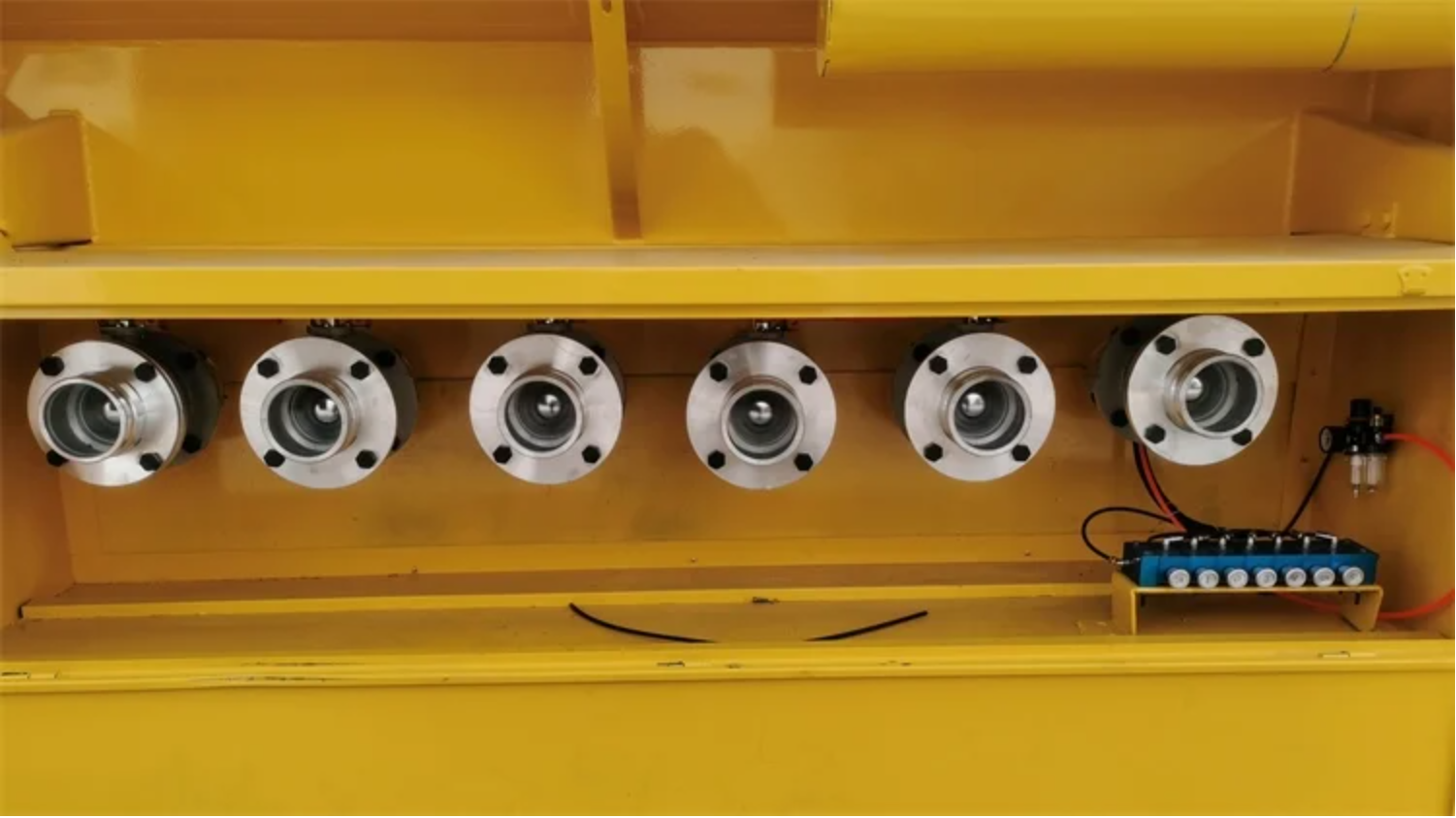

Valves: ADR standard Valves, widely applicable for the major oil companies, high quality ensures longer service life.
|
Type |
50000 litre fuel tank semi trailer |
|
Overall Dimension |
12500mm*2500*3950mm |
|
Tank Capacity |
50,000L, 3 compartments |
|
Total Volume(m3) |
50 |
|
Tank Body |
The tanker body made of 5 mm steel plate, the foreside head and back side head made of 6 mm steel plate, The shape is Elliptical Or Square. Material is carbon steel. |
|
Equipment |
1. With 3 Explosion proof Manhole Covers. 2. With 3 units Subsea Valve. 3. With 5’’ rubber hose, 2 pcs, 6m long discharging pipe. 4. With ladder installed at the rear of the tank body. 5. Steel walkway on top of the tank made of antiskid plate. 6. Foldable lifting Handrail fixed on the top of tank. |
|
Suspension |
Tri-axle 10-pcs leaf spring suspension with equalizer beam |
|
Tires |
315/80R22.5, tubeless tires, 12 pieces |
|
Axles |
3 axles, 13T capacity/axle, Fuwa, BPW, or Chinese famous brand |
|
Brakes |
Dual lines pneumatic brake system, parking brake |
|
Under Frame |
|
|
Main Beam |
I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is 14 mm, down plate is 16 mm, middle plate is 8 mm |
|
Cross Beam |
Mild Alloy Q235B, 14# channel beam |
|
King Pin |
90#(3.5'') or 50# (2.0''), JOST Brand |
|

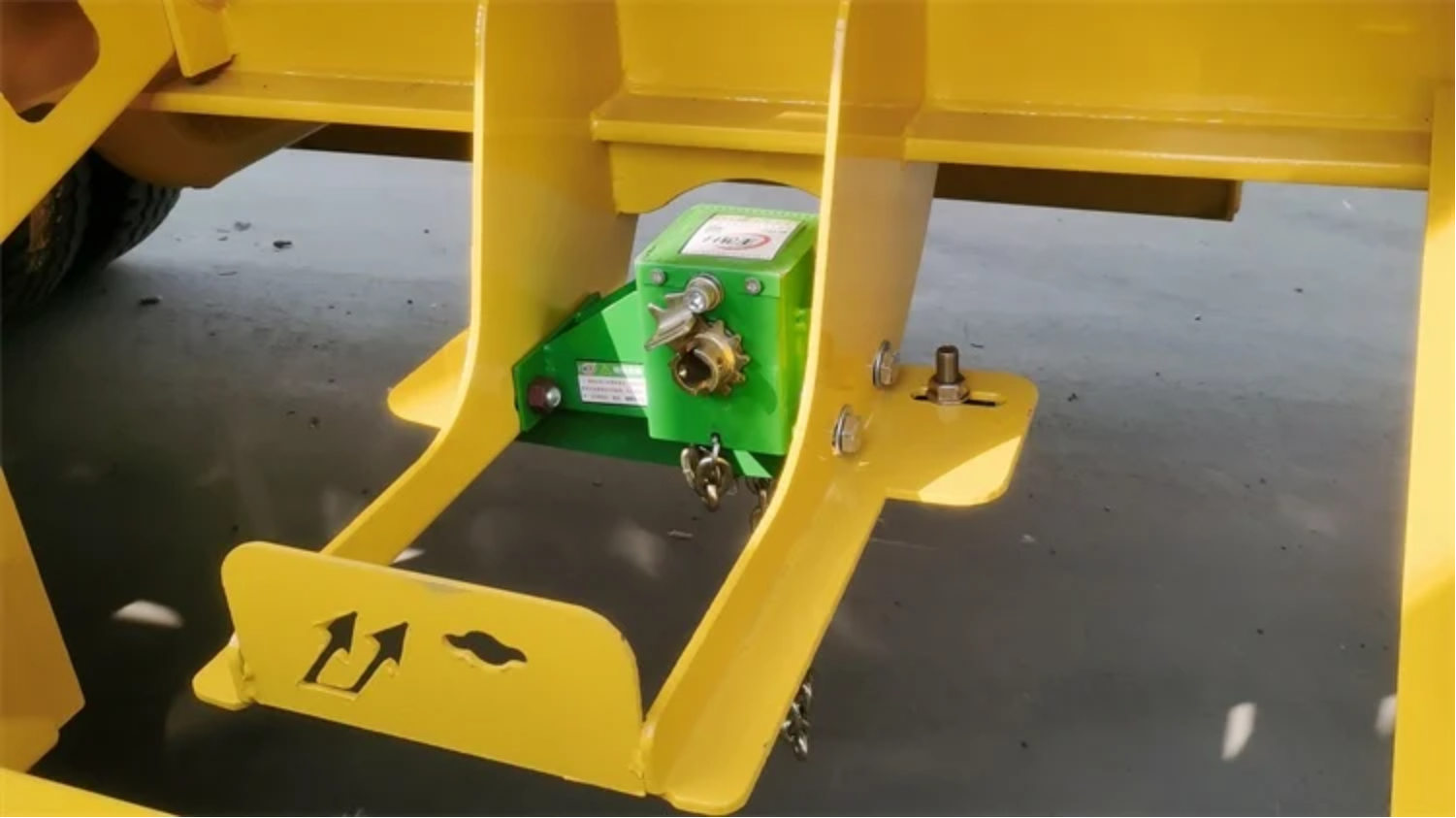

Landing Gear |
Static capacity 28 Tons |
|
Flatbed Floor |
Checkered sheet, thickness 5 mm |
|
Rear Ladders |
Spring power-assisted |
|
Electrical & Paint |
|
|
Lights & Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Wiring |
24V, 6 lines |
|
Others |
|
|
Tool box |
1 piece |
|
Spare tires carrier |
1 piece |
|
Color |
Optional (White, Blue, Yellow, Green...) |
If you are interested in the product, contact 2bvideo.com for more information for more information
