Bitumen Tank Semi trailer

2 year ago

36 0

Shandong Tenda Vehicle Co. LTD

 2 year year

Product details

Characteristics
Performance characteristics: It has functions such as asphalt self-flow discharge, pump pressure discharge, pumping and canning, and in-situ transportation. Good heat preservation, large carrying capacity and strong adaptability.
1. The turning radius of the whole vehicle structure is small; the cross section of the tank body is round, the volume is large, the center of gravity is low, and the structure is compact;
2. The asphalt tank is equipped with a heating system and an imported diesel burner. The combustion quality is good and there is no pollution;
3. The unique heat transfer oil system is used to heat and heat the asphalt pump and valve; the hydraulic system drives the asphalt pump and the heat transfer oil pump, the drive is reliable and the operation is convenient;
4, multi-function pumping system, reliable transmission, easy to operate, can meet the various needs of asphalt transportation; with liquid level display and full alarm system, easy to control the asphalt level in the tank;
5, self-flow discharge: when the oil storage tank is lower than the asphalt transport vehicle, it can be discharged directly from the flow;
6. Pressure discharge: when the oil storage tank is higher than the asphalt transport vehicle, it is pumped by pressure;
7. Self-pumping: The asphalt in the thermal tank or oil storage tank can be sucked into the vehicle through its own oil drain pipe, without the need for an external pump;

8. Internal circulation: During the heating process of asphalt, internal circulation can be carried out to improve the heating quality of asphalt;

Type	Bitumen Tank Semi trailer
♦ Tank Material: 罐体材质	Carbon steel Q345 碳钢Q345
♦ Shell Body 筒身	5 mm nominal thickness 厚度5mm
♦ Head 封头	6 mm nominal thickness 厚度6mm
♦ Baffles 内挡板	3mm nominal thick, wave shape, 5 pieces, with Ø 500mm service port 波浪形板，3mm厚度,5道，维修孔直径Ø 500mm
♦Tank Shape 罐体形状	Resembled Ellipse Shape 仿椭圆形
♦Capacity 容积	Full capacity 45000L 容积为45000L
♦Transport medium 运输介质	Asphalt 沥青
♦Tank paint 罐体油漆	Carbon steel tank: with 1 antirust, 1 base coat and 1 finishing coat. The color is black. It also can be customized. 碳钢罐体：一道防锈漆, 一道底漆, 一道面漆. 罐体颜色黑色. 也可按用户要求施工。
♦Testing Pressure 试验压力	36kPa, Water pressure test 36kPa水压试验
Name（名称）	Standard Configuration（标准配置）
♦ Top inlet port 上进料口	2 pieces 2只
♦ Manhole Cover 人孔装置	Carbon steel 碳钢材质
♦Safety breathing valve 安全呼吸阀	2 pieces 2只

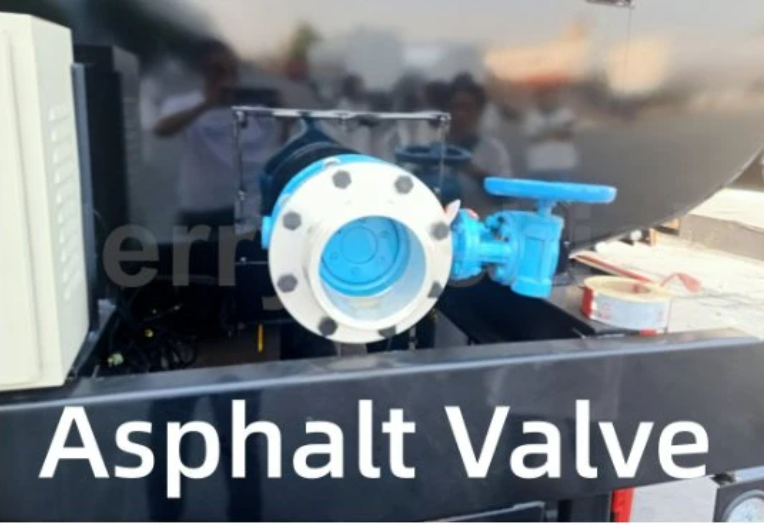

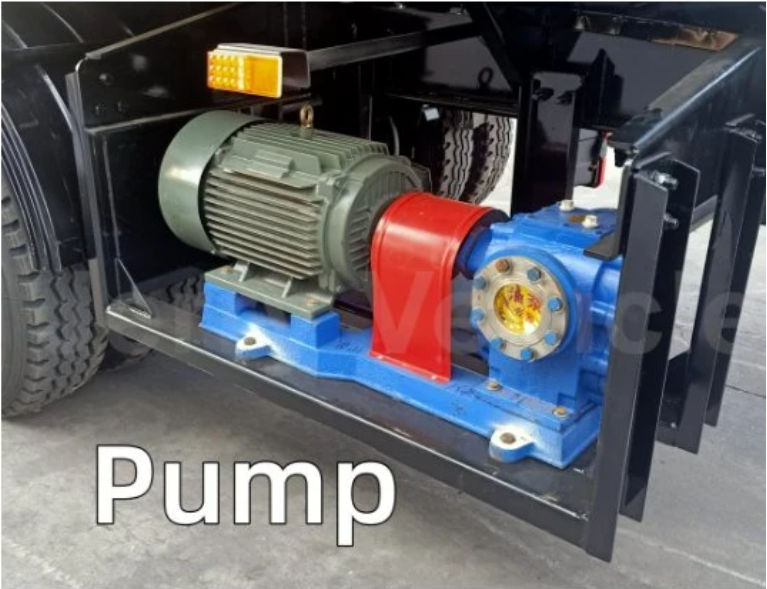

♦ Main Configuration of Heating System 加热装置主要配置	沥青泵，驱动电机（11KW） Bitumen pump, Drive motor:11KW 燃烧器（2只），带变压器，温控箱 Burner(2pieces), With transformer and temperature controller 燃烧火管，沥青阀门，管路等 Burning fire tube, Asphalt valve, and pipeline.
♦ Power supply mode供电方式	External power supply or use Generator 外接电源或使用发电机
♦ Unloading port: 放料口	It fixed at each rear side of tank, the size is DN100 (4 inches). 装在罐体尾部, 卸料口为(4寸)DN100
♦ Pipe box: 管道箱	It made of plastic, round shape which on the both sides of tank. 两边管道箱采用塑料圆管制作。
♦ Anti – Static System: 静电防护	Static electricity plate, copper plate and earth cable reel 静电盘，铜片，地线
