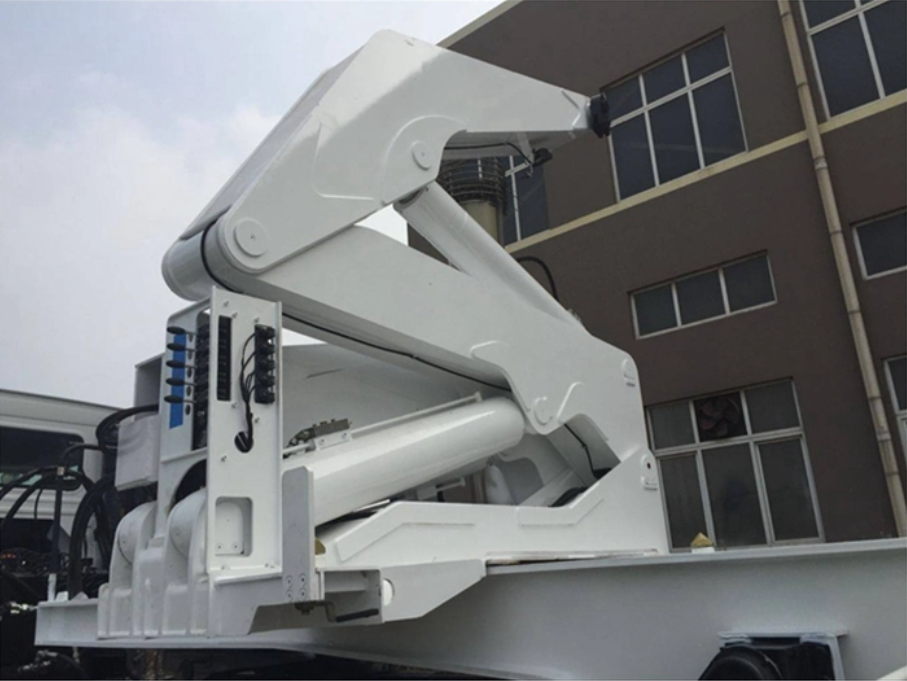

TENDA 20ft 40ft Container side lifter trailer with superior lifter Capacity and Cost effective container lifting and transport equipment. We offer 40ft container side loader to meet all container handling needs, to transport the 20 foot, 40 foot container. TENDA Container side loader have made work flexible, Save time and improve productivity for satisfied customers around the world. For the frame structure, the welding constructions with high resistant steel And TENDA container transportation side loader semi trailers adopt advanced design concept.
1. High loading capacity: 30 tonnes to 37 ton.
2. Timesaving and improve efficiency: TENDA Sidelifter can be productive all day, enabling loading, unloading and transporting containers by itself easily.
3. Flexible solutions: With the TENDA 40ft Container side loader, you get closer and can lift between trailers safely and with high precision.
4. World famous brand parts, like AMCA Holand hydraulic lifting system, NBB Germany Remote Control.
5. Transport 20' 40' containers
|
Type |
Side Lifter Container Trailer |
|
|
Overall Dimension |
14500x2550x3950mm |
|
|
Lifting Crane |
||
|
Function |
Lift the containers, 20 feet and 40 feet |
|
|
Item |
MQH37A |
|
|
Max. lifting capacity |
37000kg |
|
|
Max. stabiliser outreach |
3200mm |
|
|
Max working range |
4000mm |
|
|
Overall height |
2490mm |
|
|
Overall width |
2500mm |
|
|
Overall length |
1020mm |
|
|
Max. pressure of hydraulic system |
28MPa |
|
|
Tare weight |
7000kg |
|
|
Trailer |
||
|
Length |
14100mm |
|
|
Width |
2480mm |
|
|
Curb Weight |
7.2 ton |
|
|
Wheel base |
8000mm+1350mm+1350mm |
|
|
Pay Load |
60 Ton |
|
|
Suspension |
Tri-axle mechanical suspension with 10-pcs leaf spring |
|
|
Wheel Hubs |
Cast steel, 10 studs |
|
|
Tires |
315/80R22.5, 12units |
|
|
Axles |
FUWA，3 axles, load capacity 13T |
|
|
Brakes |
Dual lines pneumatic brake system; T30/30+T30 air chamber; parking brake |
|
|
Main Beam |
I shape, Mild Alloy （Q345B） by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm |
|
|
Cross Beam |
Mild Alloy Q235B |
|
|
King Pin |
Size: 50# (2'') or 90#(3.5’’) |
|
|
Landing Gear |
Single side operation, Static capacity 28Ton |
|
|
Lights & Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
|
Wiring |
24V, 6 lines |
|
|
Air/Elec. Connector |
ISO standard air connector, 24V 7 pin plug socket |
|
|
Paint |
Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint |
|
|
Color |
Optional |
|
