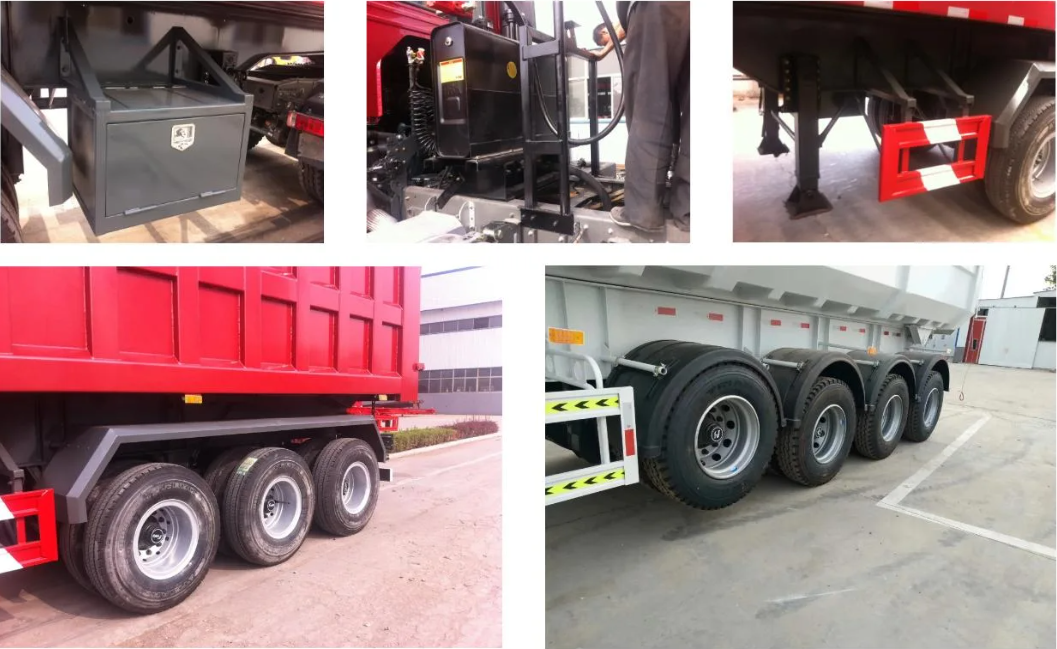

3 axles Tipper Semi trailer

2 year ago

38 0

Shandong Tenda Vehicle Co. LTD

 2 year year

Product details

Advanced Axle Performance
Integrated advanced low-alloy axle beam with no welding points; strong capacity and high strength; axles can be free of maintenance up to 3 years or 400,000 kilometers.

Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain.

Electrical Tarpaulin
Automatic electrical tarpaulin can be optioned to better protect cargo from rain and dust.

Hydraulic cylinder
High quality brand of hydraulic cylinders; appropriate models of cylinders with matching capacities will be used accordingly

Landing Gear
JOST landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of -30ºC to 120 ºC.

National Welding Standard
All the welding is supervised with national highest standards, while automatic welding robots are incorporated. 30 minutes longer than normal welding time ensures the best results.

Polyurethane combination painting
Tankers are subjected to shot blasting process: base paint once, and Polyurethane combination painting for the second time; high oxidation resistance and stronger adhesion

Rational Analysis design
Adhering to the concept of uniform force on trailer frame, the 42 rib design ensures the safety and carrying capacity of our trailer.

Tanker Body

Sufficient cargo box space, optional U type or rectangle type, and full thickness premium steel is used for strong carry capacity.

Type	3 axles Tipper Semi trailer
Total size	10572x2550x3564 (Outside)
Cargo Box Size	9500x2300x1700mm (Inner)
Loading capacity	37 Cubic Meters
Lifting system	HYVA Front lifting
Body	Floor: 10mm; Side wall: 8mm
Main Beam	Submerged arc welding, 16/10/18mm
Axle	3 Axles, 3x13 Tons, Fuwa Brand
Suspension	Mechanical suspension
Leaf spring	Leaf spring 10pcs
Tire type	12.00R20, radial Tires
Kingpin	3.5’’ or 2’’ bolt-in king pin
Landing gear	Two speed road side winding with sand shoe. Lifting capacity 30T and static load 80T.
Braking system	WABCO Brand RE6 relay valve, T30/30 spring brake chamber, 40L air tanks
Vehicular applications	Sand and pebble and mineral transport
Tools box	1
Voltage	24V
Receptacle	7 ways (7 wire harness)
Side marker lamp	LED type
Color	Optional(White, Red, Green, Blue, Yellow...)
