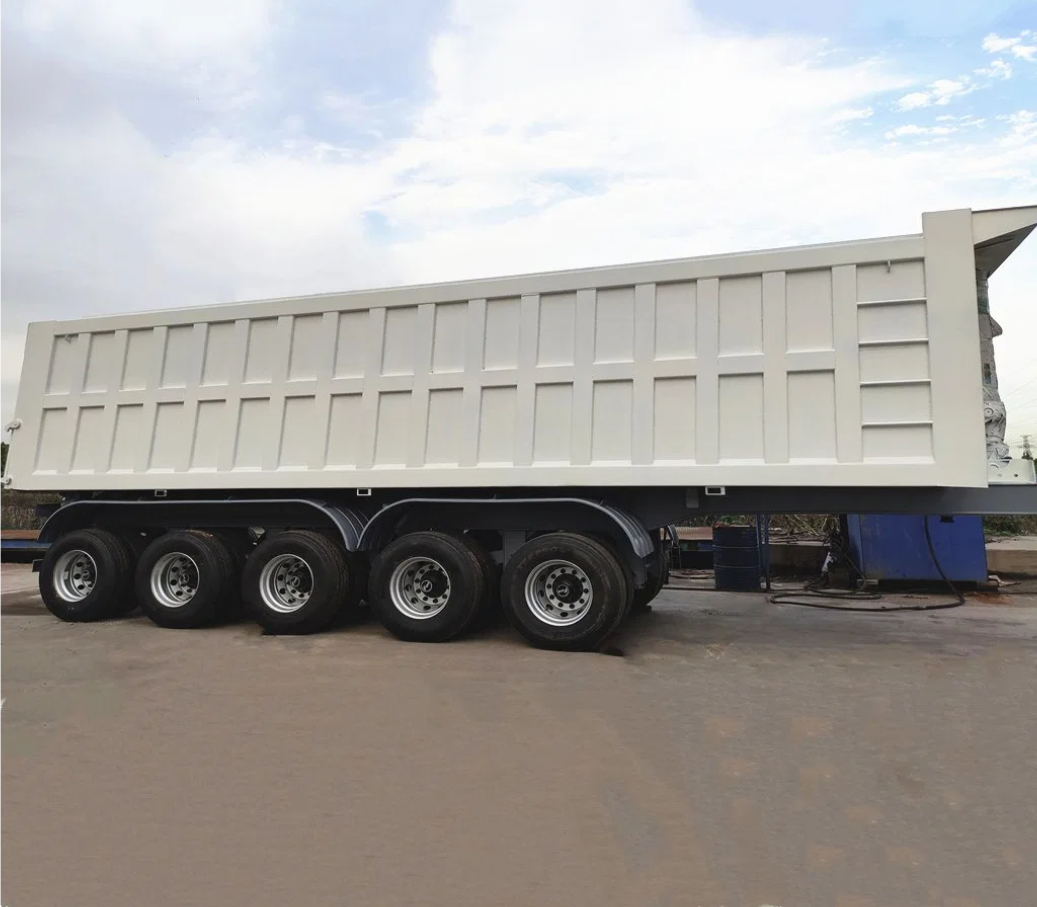

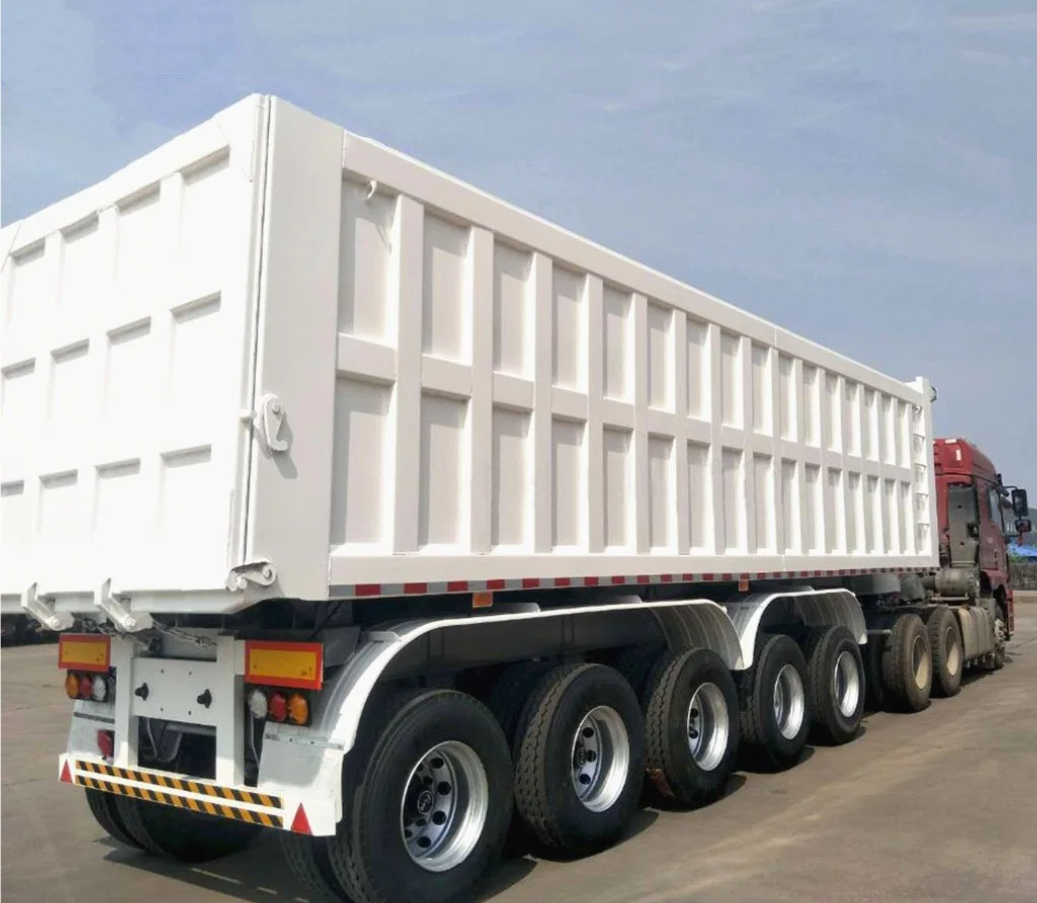

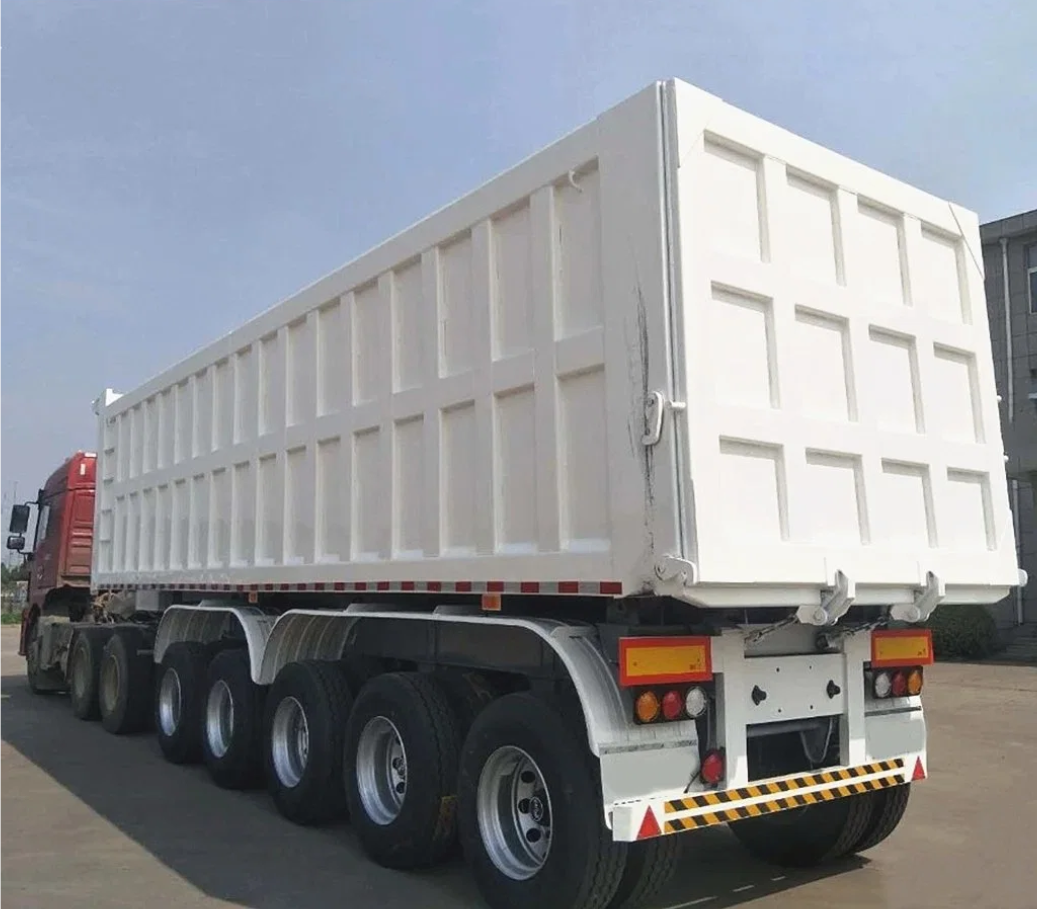

6 Axles Dump Semi Trailer

2 year ago

34 0

Shandong Tenda Vehicle Co. LTD

 2 year year

Product details

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacit, it is not easy to damage.
2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. with 4 units vice beam and cross balance beam . The lattice structure of the side door makes the side door more solid
4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.

Dimension	9500mm2500mm3500mm (the trailer size can be designed according to your special requiremen)
Total volume(m³)	30-40 cubic meter
Side wall thickness	4 - 6mm
End plate	8mm
Lifting System	Full set of Hydraulic lifting cylinder
Bottom plate	6mm-8mm Q235 steel
Main beam	Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Axle	3 units, 13T/16T, FUWA / BPW / Chinese famous brand
Rim	8.0-20 or 9.00-20
Tire	8.25R20/10.00R20/11.00R20/12R22.5
Landing Gear	JOSTbrand
Kingpin	JOSTbrand
Suspension	Mechanical suspension
Braking System	WABCO
Spring leaf	90(W)mmx13(Thickness)mmx10 layers
ABS	Optional
Accessories	One standard tool box
Light	LED light (specially intended for oversea markets)
Shipping Terms	By bulk cargo , RORO or 40HQ container
