Its higher payload carrying capacity, better mileage and availability of different product variants catering to varying customer's needs. The vehicle provides you with longer tyre life, high fuel efficiency and less maintenance cost which gives you higher revenue and lower operating cost, substantially increasing your overall profit.
|
Type |

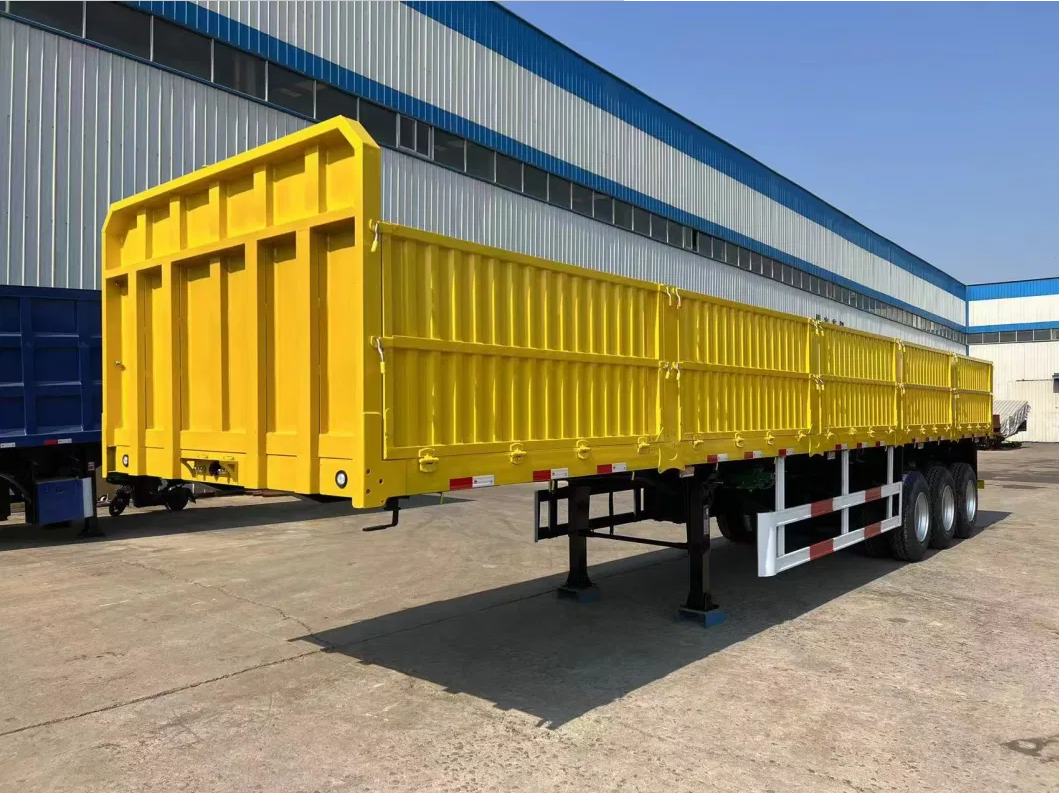

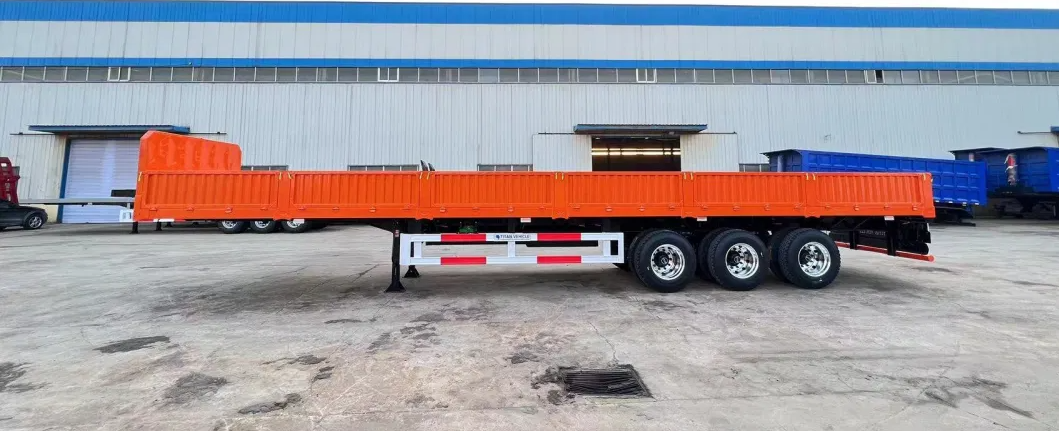

Sidewall Cargo Semi Trailer |
|
Total Length |
Approx 12,500 mm |
|
Total Width |
Approx 2,550 mm (including mud guard) |
|
Total Height |
Approx 1,860mm |
|
King Pin Location |
Approx 972mm from the front face of the front bolster |
|
Wheelbase |
Approx 6,840mm+1310mm+1310mm |
|
Landing Gear location |
2,420mm behind the king pin location |
|
Fifth wheel (King Pin) Height |
Approx 1,350mm with the chassis level |
|
Capacity |
60 tons |
|
Tare Weight |
Approx 8,900 kg (Tolerance 0~-4%) |
|
Max. Payload |
Approx 60,000 |
|
Gross Vehicle Weight |
Approx 68,900 kg |
|
Main Beam |
Mild Alloy Q235B is used for welded I-beam and (345MPa) is used for welded fabricated parts. Top 14mm, middle 10mm, bottom 16mm. |
|
Sidewall Dimension |
12500x2500x600mm, Floor 3mm, side 1.5mm, adjustable according to request. |
|
Kingpin |
2” or 3.5’’ Brand: JOST. Made in China. |
|
Landing Gear |
Jost 28T landing gear, Single side operation |
|
Suspension |
Tri-axles are American type mechanical spring suspension, the leaf spring is 10pcs. |
|
Axles |
3x13T, Fuwa, BPW, or Chinese famous brand. |
|
Rims |
9.00-22.5，12 pieces. 10 holes Steel rim, Made in China. |
|
Tires |
12R22.5, 12pieces. China First-level Brand, Made in China. |
|
Brake System |
Dual air brake system, WABCO or Haldex relay valve, none ABS brake system. |
|
Brake chamber |
Type 30/30 on the rear two axles, Type 30 on the first axle. |
|
Electrical System |
24 volt lighting system, 7-way receptacle, ISO standard. |
|
Spare tire carrier |
Two sets spare tire carrier |
|
Side guard |
None |
|
Tool Box |
One |
|
Reflector tape |
Side yellow color and rear red color reflector tap |
|
Mudguard |
Mudguard on top of tire. |
|
Painting & Logo |
As client ‘s request. |
