3. Durability - Q345 steel main beam with T700 high strength dump box
Description

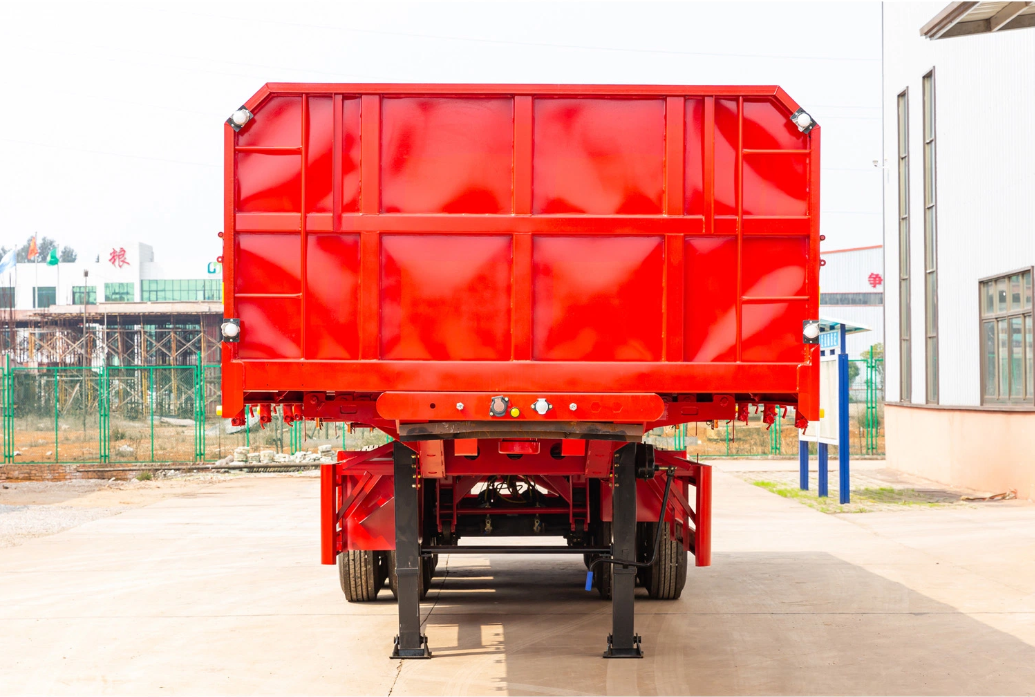

Side dump sidewall semi trailer
Dimension(mm)
13000/12500/12000×2550/2500×3650/3550/3200/3100/2800
Vehicle Weight
6.9T-7.3T(Hydraulic oil and accessories included)
Loading Capacity
40-50T
King Pin
50#/90#
Axle
3*13T HUIZHOU FUWA Axles
Tire
Vacuum tire 12R22.5*12
Main Beam Spec
T700/Q345 Steel, Height:460-500mm, Plate Thickness:8-16mm

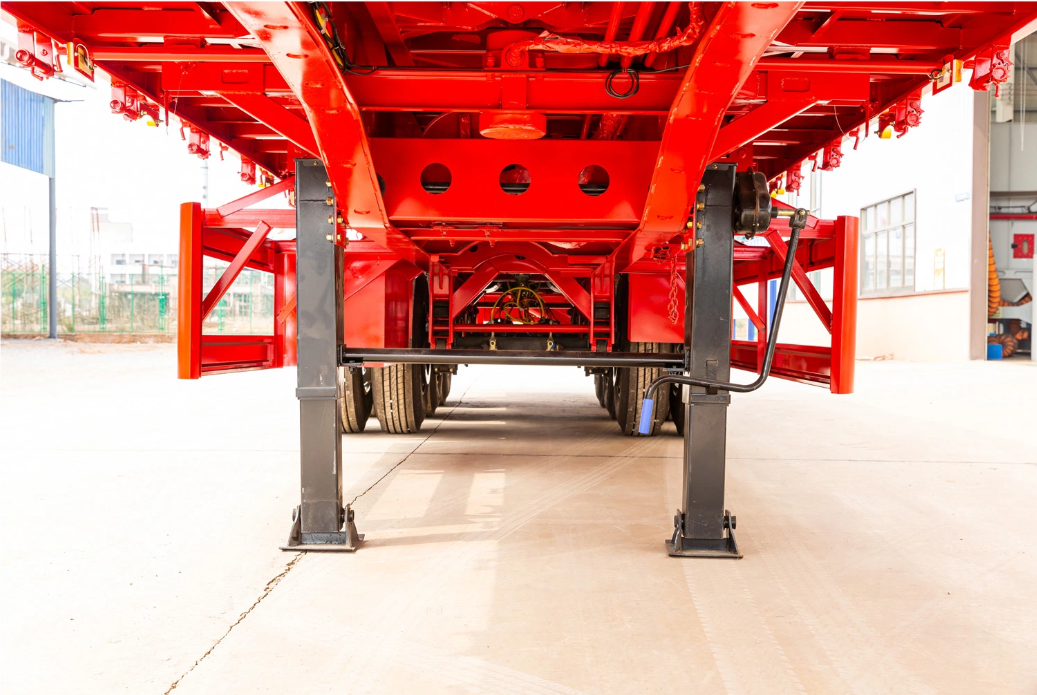

Landing Gear
single acting,manual operating,heavy duty
Suspension System
3 axles mechanical suspension
Steel leaf spring
22mm*90*4pcs
Braking System
Dual line pneumatic brake,with hose and connector
ABS
Optional
Electronic System
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting
Complete chassis sand blasting to clean rust, 1coat of Environmentally anticorrosive prime, 2coats of baking varnish.
MOQ
1 Unit
If you are interested in the product, contact 2bvideo.com for more information for more information
