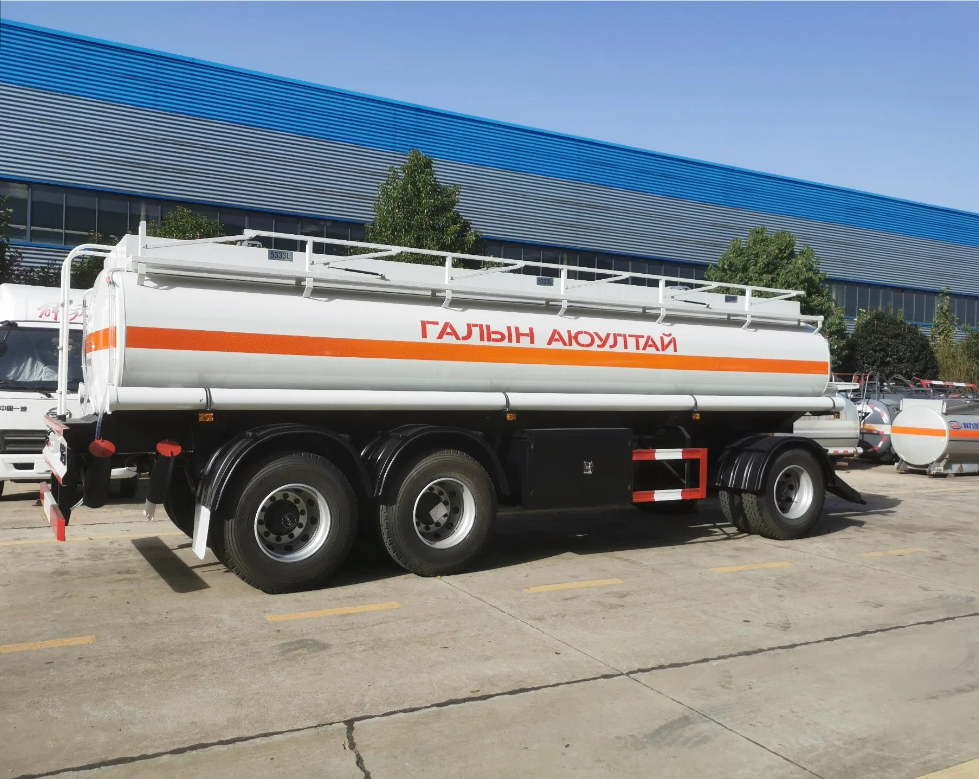

Drawbar Trailer Milk/ Water/ Fuel / Oil Tanker

2 year ago

36 0

Shandong Tenda Vehicle Co. LTD

 2 year year

Product details

1.TENDA fuel tanker trailer is configured for carrying different bulk liquids tankers such as petrol, diesel, Jet-A1, crude oil, edible oil, palm oil, and liquid bitumen, gasoline, etc, it is a cost-effective, multipurpose vessel due to the manifold pipe system.
2.The payload/loading volume can reach 30,000 liters, 35,000 liters, 45,000 liters, 54,000 liters, even up to 90,000 liters, for metered and bulk deliveries with optimum payload capabilities, it can meet the differentiated applications.
3. The tank body and chassis are made of high strength carbon steel, stainless steel or aluminum alloy, coupled with advanced robotic automatic welding machine, special automatic painting machine, full blasting of complete vehicle before painting to increase strength at chassis junction and reduce tension impact, make the tanker more capable of corrosion resistance and long service life.
4.The tank body can be cylindrical, elliptical, trapezoidal surface design or other customized shapes, the inside of the tank trailer can be divided into several compartments, the wave plate will be welded into the inside of each compartment to reduce impact of the fuel and increase strength of the tank trailer in operation.

5. We supply various trailers such as fuel tank trailer, flatbed trailer, lowbed trailers to Tanzania local trailer manufature, AM Trailer, Superdoll trailers and Simba trailers, and GRW trailers in South Africa, so we understand the needs of the local clients perfectly.

Dimension(LWH:mm)	9450×2500×3400(mm)
Body dimension(LWH:mm)	7500×2480×1820(mm)
King pin setting(mm)	50# or 90#
Axle space(mm)	6130+1310+1310(mm)
Tare weight(kg)	7320(Kg)
Loading capacity	22680(Kg)
Landing gear	Two speed manual operation type with sand shoe
Kingpin	BAOHUA or JOST others
Brake system	China famous brand brake valve or Wabco
ABS	4s/2M
Brake chamber	Type 30/30 spring brake system on all axles
Insulation layer	75mm glass fiber cotton
Suspension	Mechanical suspension leaf spring or air suspension
Axle	FUHUA axle, 13 ton capacity/set, 3sets
Tire	12.00R22.5 12PR China famous brand
Bottom valves	one pcs of aluminum alloy material
Wheel Rim	9.0-22.5 12 pcs
Compartment	One
Tank material	Carbon steel
Bulkhead and Bafflr	Thickness is 6mm
Tank Shell	Thickness is 5mm
Shape of tank	circular shape
Manhole	2 pcs of aluminum alloy material
