Product details

Our detachable gooseneck lowboy trailer can be loaded with 60ton, making it even more convenient to use. Its front-loading is easier for some medium-sized machines, such as excavators, while it has higher requirements for high-strength steel.Our products have the following characteristics：

1. Strong load-bearing capacity
Hydraulic detachable gooseneck trailer is designed for some heavy machinery, the overall design of the arched cargo compartment, the longitudinal beam is a high-strength steel structure, the overall design, to improve the loading capacity, but also to reduce its weight.

2. Lower overall center of gravity
The overall height of the car is only 1200mm, 300-400mm lower than the ordinary lowboy trailer, so that its overall center of gravity will become even lower, so that the center of gravity of the loaded goods is even lower, and the overall is more stable and safer.

3. Convenient maintenance

The bearing surface can be lifted, so that the tires of the axle can directly touch the ground or leave the ground, so that when we carry out maintenance, it can be more convenient and simple to operate.

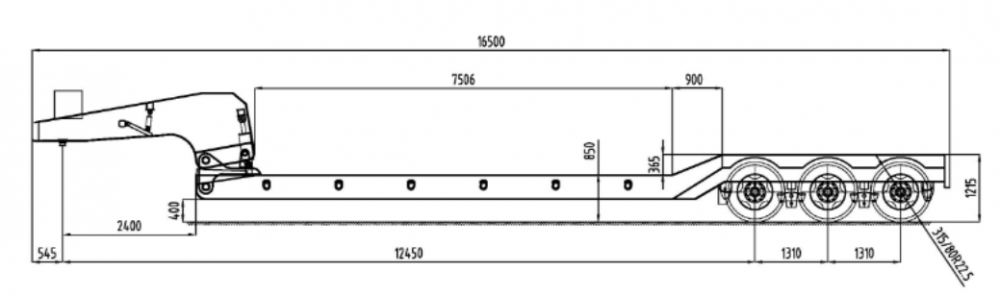

Type	Gooseneck detachable lowboy semi trailer
Overall Dimension	16500mm*3000mm
Container locks	4 units, for carrying 20 ft container
Tare Weight	10500kg	Pay Load	60 tons
King Pin Setting	600 mm x 1350mm	Rear Overhang	1870mm
Wheel base	7650mm+1305mm+1305mm
Loading Platform Length	approximate 7,506 mm
Loading Platform Height	800mm ±10mm @ unload
Track	2160mm
Running Gear
Suspension	All Axels with Leaf springs ( 12 nos)
Tires	315/80R22.5, 12+1units
Axles	FUWA, 3 axles, 16T capacity/axle
Brakes	Dual lines pneumatic brake system, parking brake
Under Frame
Main Beam	I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is 22 mm,down plate is 22 mm,middle plate is 14 mm
Cross Beam	Mild Alloy Q235B, 16# channel beam
King Pin	90#(3.5’’); Type: welded or assembled
Landing Gear	Single side operation or double side operation, Static capacity 28Tons
Flatbed Floor	Checkered sheet, thickness 5 mm
Goose Neck	Independently powered hydraulic powered goose neck for front loading
Ramp	Front loading ramp
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
