The main components are made of standard equipment, and the longitudinal beams are fully automatic submerged arc welding.
|
Type |

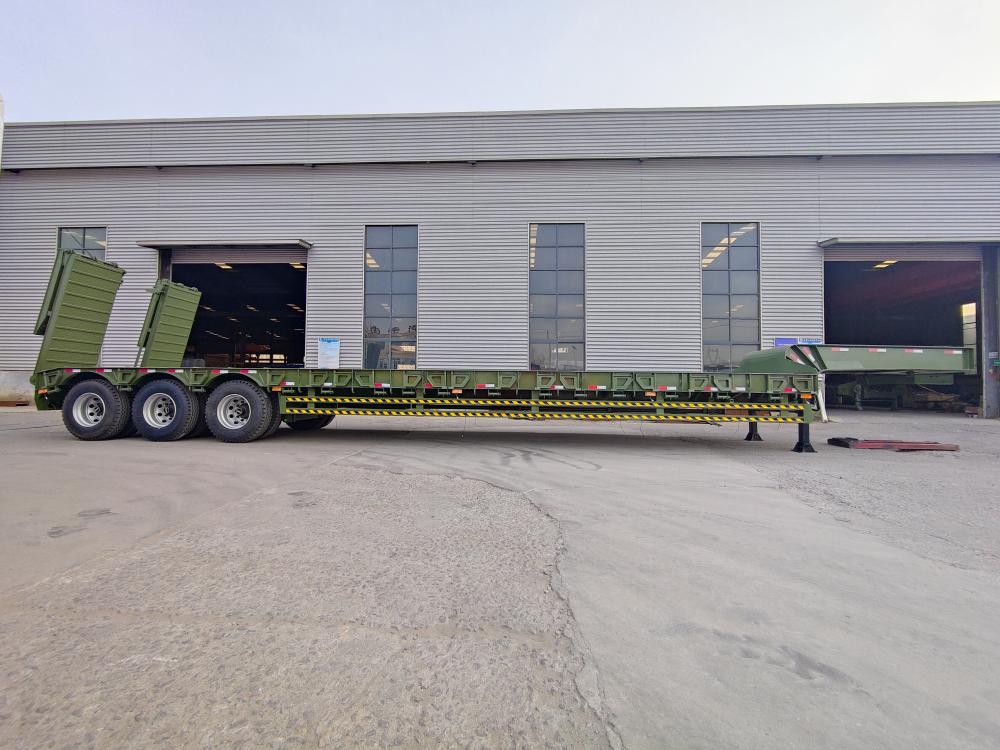

40 Ton Low Bed Trailer |
|
Overall Dimension |
13500mm*3000*3300mm |
|
Flatbed Dimension |
9000mm*3000mm |
|
Pay Load |
40 tons |
|
Running Gear |
|
|
Suspension |
Tri-axle 10-pcs leaf spring suspension with equalizer beam |
|
Tires |
315/80R22.5, tubeless tires, 12 pieces |
|
Axles |
3 axles, 13T capacity/axle, Fuwa, BPW, or Chinese famous brand |
|
Brakes |
Dual lines pneumatic brake system, parking brake |
|
Under Frame |
|
|
Main Beam |
I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is 22 mm, down plate is 22 mm, middle plate is 14 mm |
|
Cross Beam |
Mild Alloy Q235B, 14# channel beam |
|
King Pin |
90#(3.5'') or 50# (2.0''), JOST Brand |
|
Landing Gear |
Static capacity 28 Tons |
|
Flatbed Floor |
Checkered sheet, thickness 5 mm |
|
Rear Ladders |
Spring power-assisted |
|
Electrical & Paint |
|
|
Lights & Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Wiring |
24V, 6 lines |
|
Others |
|
|
Tool box |
1 piece |
|
Spare tires carrier |
2 pieces |
|
Color |
Optional (White, Blue, Yellow, Green...) |
If you are interested in the product, contact 2bvideo.com for more information for more information
