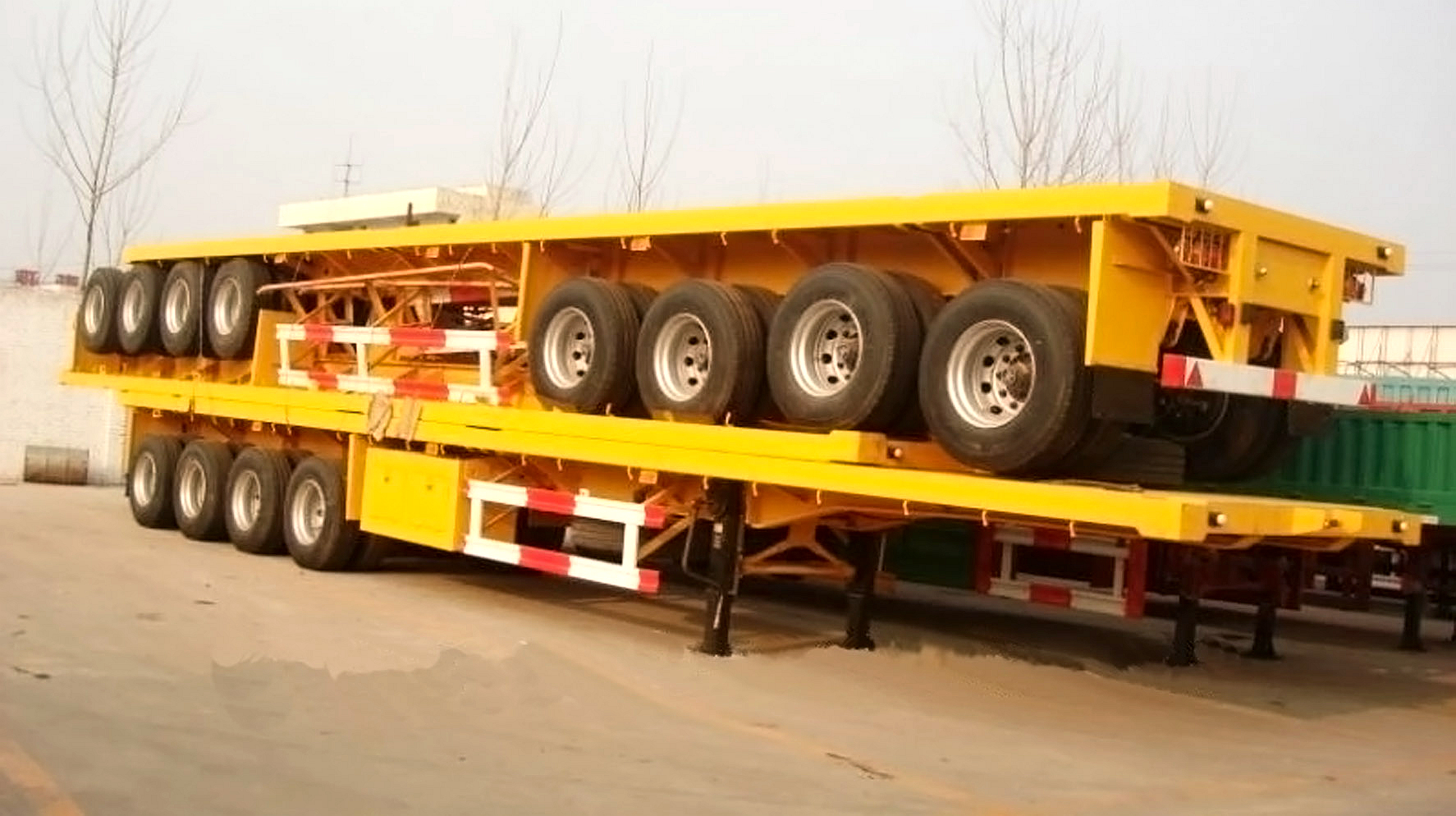

4 axles flatbed container trailer

2 year ago

21 0

Shandong Tenda Vehicle Co. LTD

 2 year year

Product details

4 axles flatbed trailer become more and more popular in Africa market now.

Container transport semi - trailer can transport containers and non - dangerous goods semi - trailer structure. The subjective structure of the car is straight beam or front neck of the goose neck style. Mainly used for ships, ports, routes, roads, transit stations, Bridges, tunnels, multimodal transport supporting logistics system.

advantages:
1. Flatbed container semi trailer specially used for all kinds of container transportation. Can be used repeatedly for a long time, with enough strength.

2. the use of container transport goods, can be directly in the consignor's warehouse loading, transported to the consignee's warehouse unloading, midway replacement car, ship, no need to take out the goods from the box to replace.

3. The flat deck trailer can be quick loading and unloading, and can be directly and conveniently from one means of transport to another means of transport.

4. Container transport trailer more easy to fill and unload goods, to meet the personalized needs of customers. According to customer needs tooling guarantee, stable quality, reliable performance.

Type	4 axles flatbed container trailer
Total Length	Approx 12,500 mm
Total Width	Approx 2,550 mm (including mud guard)
Total Height	Approx 1,860mm
King Pin Location	Approx 972mm from the front face of the front bolster
Wheelbase	Approx 5,540mm+1310mm+1310+1310mm
Landing Gear location	2,420mm behind the king pin location
Fifth wheel (King Pin) Height	Approx 1,350mm with the chassis level
Capacity	70 tons
Tare Weight	Approx 8,900 kg (Tolerance 0~-4%)
Max. Payload	Approx 70,000
Gross Vehicle Weight	Approx 78,900 kg
Main Beam	Mild Alloy Q235B is used for welded I-beam and (345MPa) is used for welded fabricated parts. Height 500mm, Top 14mm, middle 10mm, bottom 16mm.
Container locks	12 units, can carry one 40 ft container and two 20 ft containers
Kingpin	2” or 3.5’’ Brand: JOST. Made in China.
Landing Gear	Jost 28T landing gear, Single side operation
Suspension	4 axles are American type mechanical spring suspension, the leaf spring is 10pcs.
Axles	4x16T, Fuwa, BPW, or Chinese famous brand.
Rims	9.00-20，16 pieces. 10 holes Steel rim, Made in China.
Tires	12.00R20, 16pieces. China First-level Brand, Made in China.
Brake System	Dual air brake system, WABCO or Haldex relay valve, none ABS brake system.
Brake chamber	Type 30/30 on the rear two axles, Type 30 on the first axle.
Electrical System	24 volt lighting system, 7-way receptacle, ISO standard.
Spare tire carrier	Two sets spare tire carrier
Side guard	None
Tool Box	One
Reflector tape	Side yellow color and rear red color reflector tap
Mudguard	Mudguard on top of tire.
Painting & Logo	As client ‘s request.
