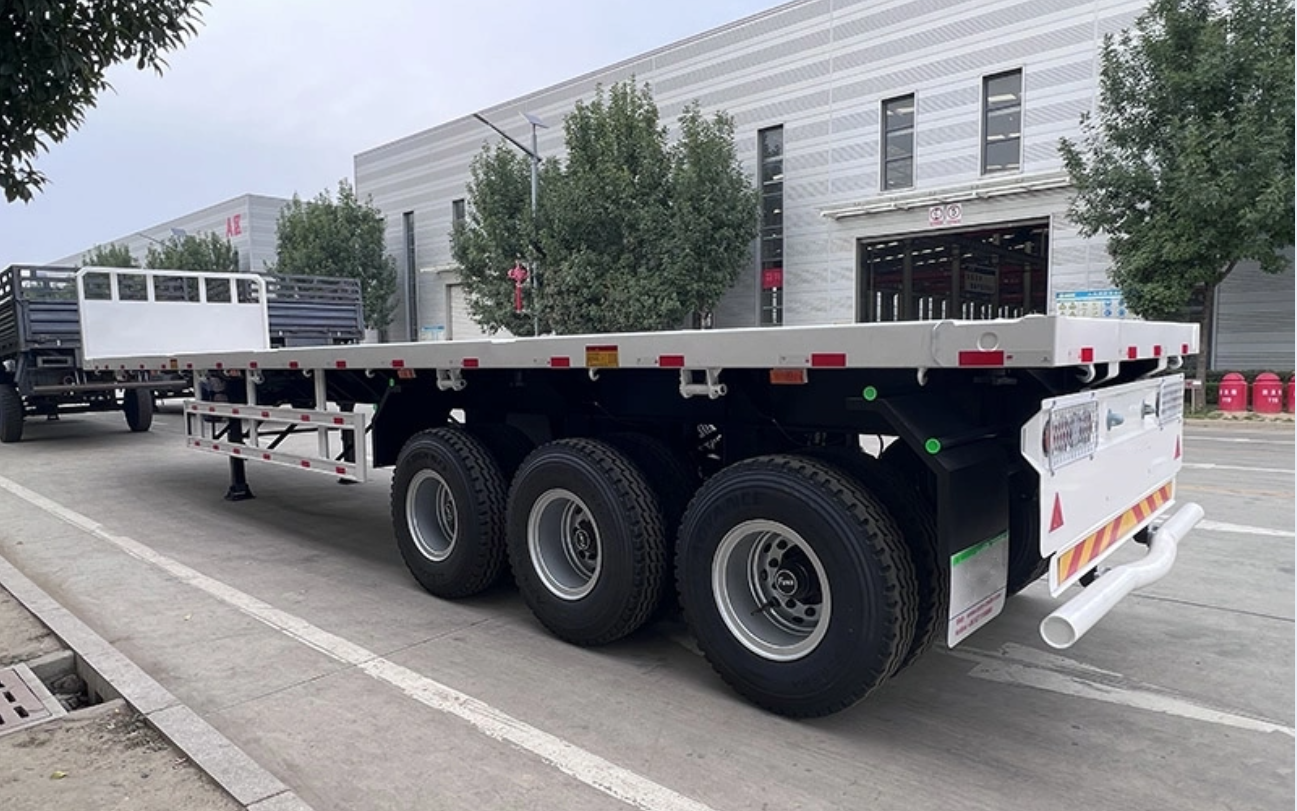

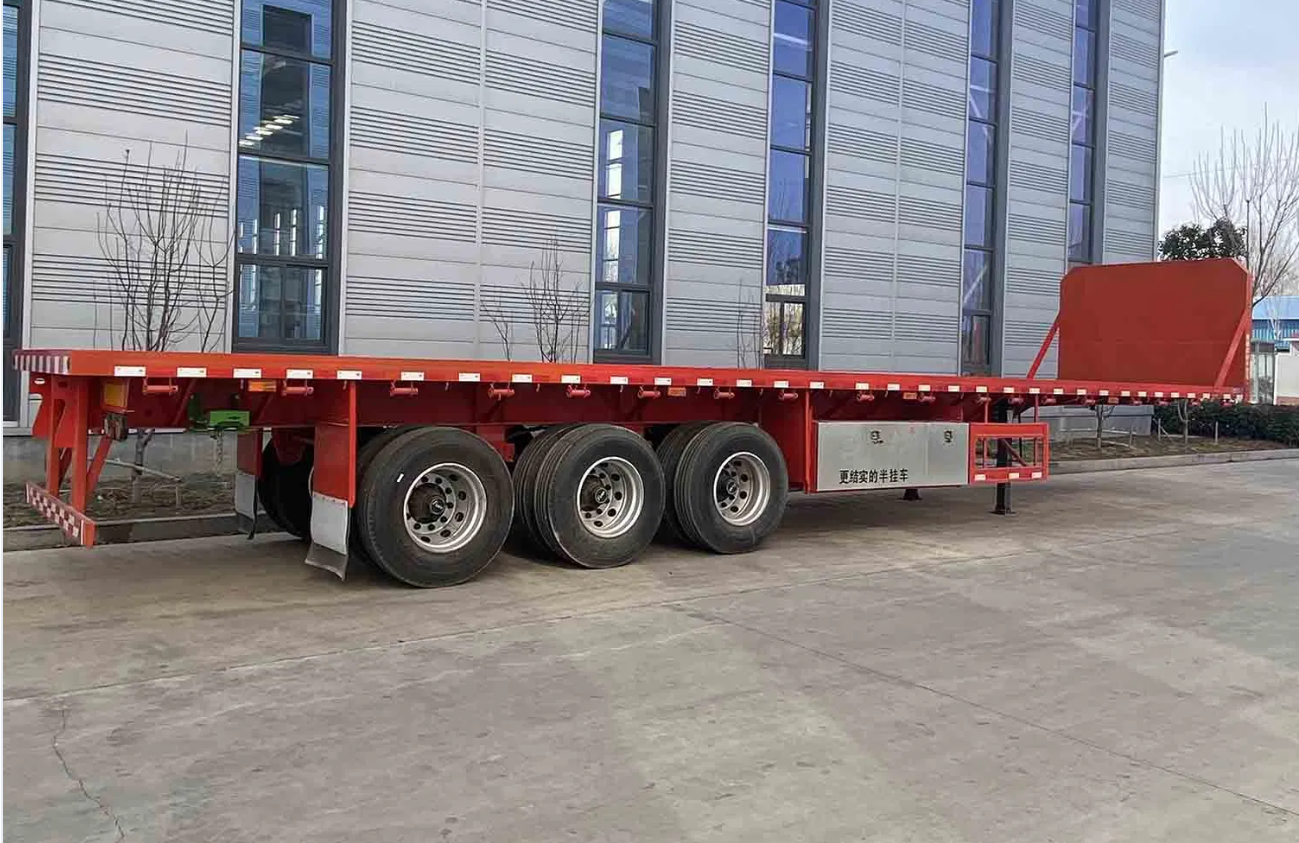

60ft container flatbed trailer

11 month ago

24 0

Shandong Tenda Vehicle Co. LTD

 12 month year

Product details

What are our advantages compared with other competitors?

√√ Competitive Price --

We're factory. We have 20 years of production and design experience; All accessories are selected from high quality suppliers;.From numerous comparison and feedback from clients, our price is more competitive than other competitors.

√√ Quick Response--
Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond client inquiries and questions all the time. Most problems can be solved within 12 hours.

√√ Fast delivery --
Normally it will take more than 25-45 days for other companies to produce the ordered trailers, We are our own factory, we can have a 15-20 days delivery of regular trailers for our clients.

√√ Warranty --

Each trailer is guaranteed for up to 5 years ;

√√ Accessories --

All our trailer accessories have been provided to you at a cost price to ensure quality, below the market selling price;

Type	60ft container flatbed trailer
Total Length	Approx 12,500 mm
Total Width	Approx 2,550 mm (including mud guard)
Total Height	Approx 1,860mm
King Pin Location	Approx 972mm from the front face of the front bolster
Wheelbase	Approx 6,840mm+1310mm+1310mm
Landing Gear location	2,420mm behind the king pin location
Fifth wheel (King Pin) Height	Approx 1,350mm with the chassis level
Capacity	60 tons
Tare Weight	Approx 8,700 kg (Tolerance 0~-4%)
Max. Payload	Approx 60,000
Gross Vehicle Weight	Approx 68,700 kg
Main Beam	Mild Alloy Q235B is used for welded I-beam and (345MPa) is used for welded fabricated parts. Top 14mm, middle 10mm, bottom 16mm.
Container locks	12 units, can carry one 40 ft container and two 20 ft containers
Kingpin	2” or 3.5’’ Brand: JOST. Made in China.
Landing Gear	Jost 28T landing gear, Single side operation
Suspension	Tri-axles are American type mechanical spring suspension, the leaf spring is 10pcs.
Axles	3x13T, Fuwa, BPW, or Chinese famous brand.
Rims	9.00-22.5，12 pieces. 10 holes Steel rim, Made in China.
Tires	315/80R22.5, 12pieces. China First-level Brand, Made in China.
Brake System	Dual air brake system, WABCO or Haldex relay valve, none ABS brake system.
Brake chamber	Type 30/30 on the rear two axles, Type 30 on the first axle.
Electrical System	24 volt lighting system, 7-way receptacle, ISO standard.
Spare tire carrier	Two sets spare tire carrier
Side guard	None
Tool Box	One
Reflector tape	Side yellow color and rear red color reflector tap
Mudguard	Mudguard on top of tire.
Painting & Logo	As client ‘s request.

60ft container flatbed trailer
