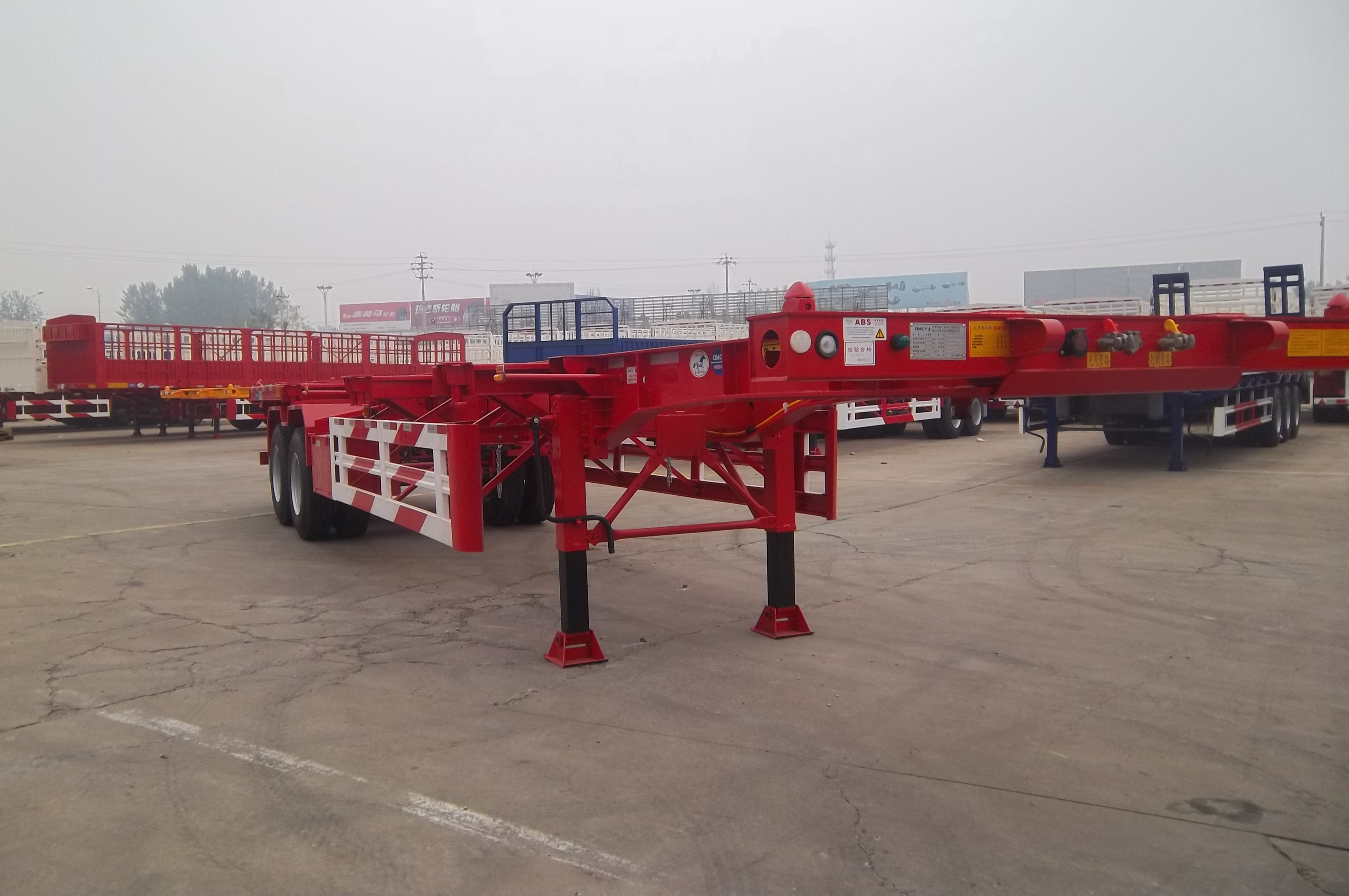

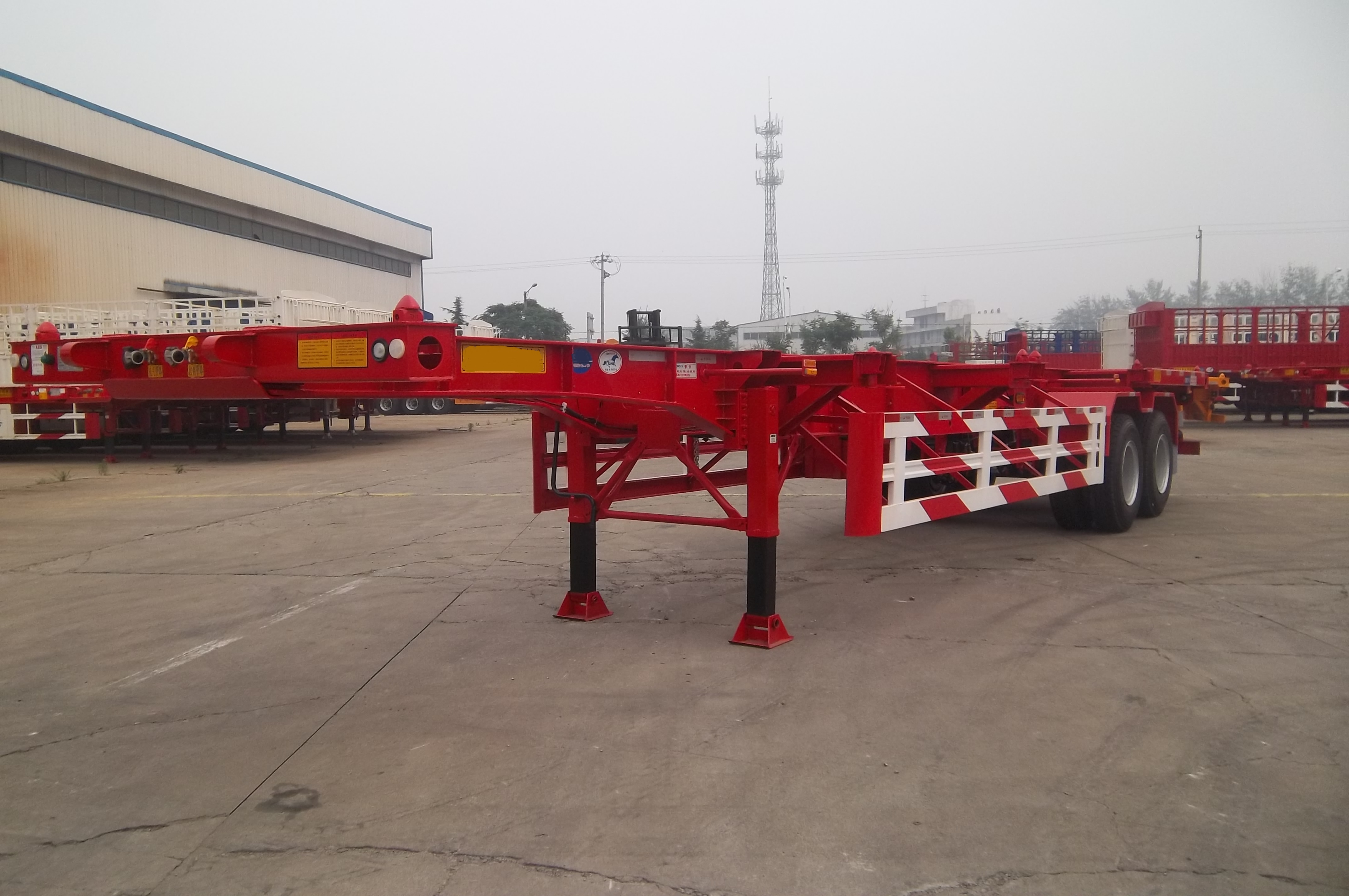

20ft Container Skeleton Chassis Trailer

11 month ago

22 0

Shandong Tenda Vehicle Co. LTD

 12 month year

Product details

1.Experience our premium offerings directly from the source.
Without the need for intermediary agents or additional fees, we are able to provide superior quality at an unbeatable cost.
We are committed to delivering the finest product at the most competitive price.
2.Our products can be customized for various needs.
And customizable unique company logo is available.
3.Cutting edge automation equipment adopted in the factory, improved quality from traditional production methods.
Steel is welded by automatic submerged arc process, connection spots look more flawless, more solid and durable compared with traditional manual ways.

4.Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process.

Type	20ft Container Skeleton Chassis Trailer
Total Length	Approx 6,500 mm
Total Width	Approx 2,550 mm (including mud guard)
Total Height	Approx 1,860mm
King Pin Location	Approx 972mm from the front face of the front bolster
Landing Gear location	2,420mm behind the king pin location
Fifth wheel (King Pin) Height	Approx 1,350mm with the chassis level
Capacity	50 tons
Tare Weight	Approx 5,700 kg (Tolerance 0~-4%)
Max. Payload	Approx 50,000
Gross Vehicle Weight	Approx 55,700 kg
Main Beam	Mild Alloy Q235B is used for welded I-beam and (345MPa) is used for welded fabricated parts. Height 500mm, Top 14mm, middle 8mm, bottom 16mm.
Container locks	4 units, can carry one 20 ft container
Kingpin	2” or 3.5’’ Brand: JOST. Made in China.
Landing Gear	Jost 28T landing gear, Single side operation
Suspension	2 axles are American type mechanical spring suspension, the leaf spring is 10pcs.
Axles	2x13T, Fuwa, BPW, or Chinese famous brand.
Rims	9.00-22.5，8 pieces. 10 holes Steel rim, Made in China.
Tires	315/80R22.5, 8pieces. China First-level Brand, Made in China.
Brake System	Dual air brake system, WABCO or Haldex relay valve, none ABS brake system.
Brake chamber	Type 30/30 on the rear two axles, Type 30 on the first axle.
Electrical System	24 volt lighting system, 7-way receptacle, ISO standard.
Spare tire carrier	One set spare tire carrier
Side guard	None
Tool Box	One
Reflector tape	Side yellow color and rear red color reflector tap
Mudguard	Mudguard on top of tire.
Painting & Logo	As client ‘s request.
