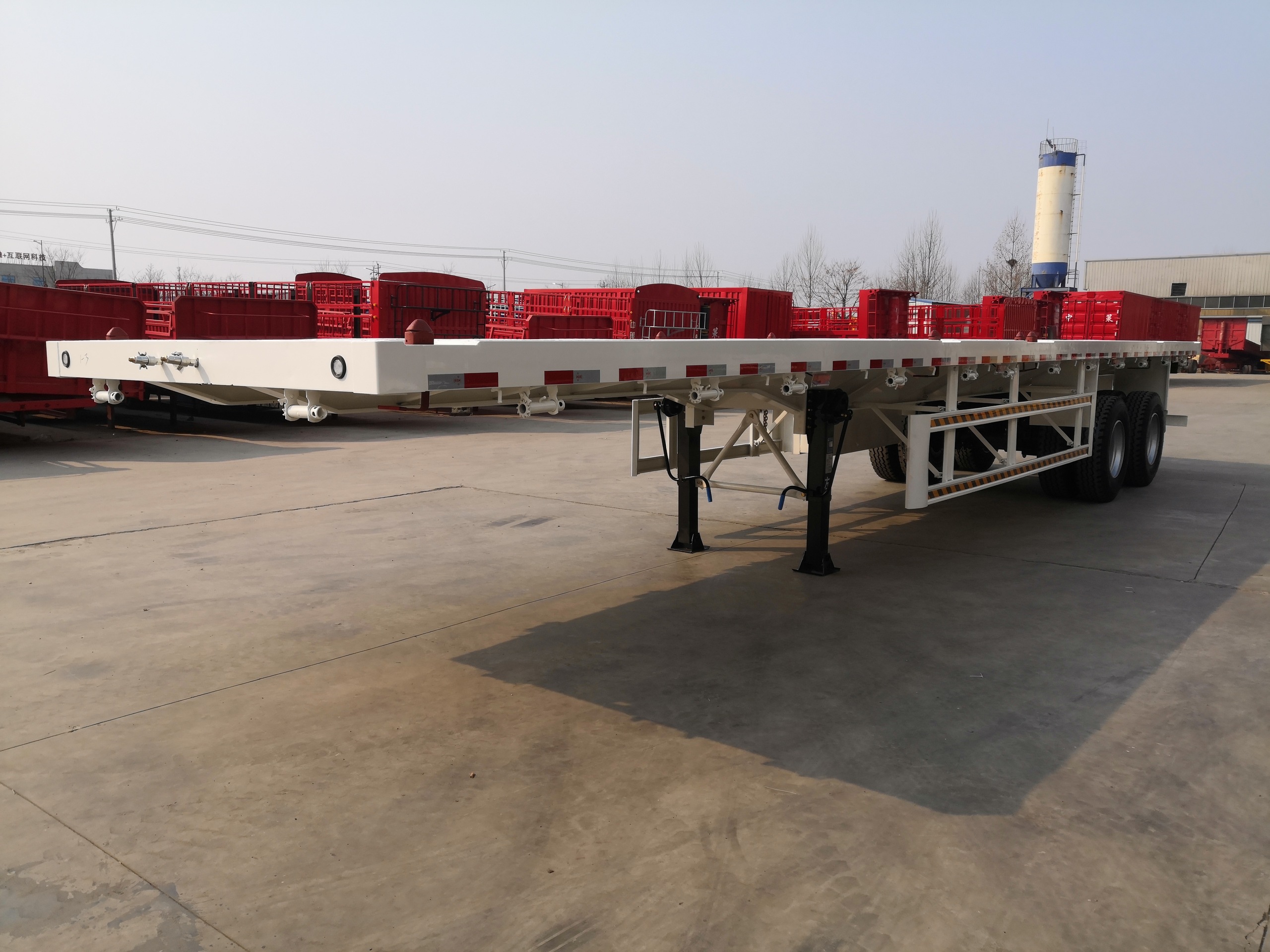

TENDA 2 axle 40ft semi flatbed trailer for sale is mainly used for transporting containers, ISO standard container, 20ft or 40ft. The buyer can choose the length of the 2 axle 40ft semi flatbed trailer, TITAN can customize the semi flatbed trailer for you.
TENDA 2 axle 40ft semi flatbed trailer for sale is a good option for the users to transport containers, like 20ft or 40ft. The length of the 2 axle 40ft semi flatbed trailer for sale can be 20ft, 40fty, 48ft or 53ft.
TENDA 2 axle 40ft semi flatbed trailer is using the high strength steel marterial Q345 to make the main beam , which gives the semi flatbed trailer more strength to afford the weight.
|
Type |
2 Axles Container Flatbed Trailer |
|
Total Length |
Approx 12,500 mm |
|
Total Width |
Approx 2,500 mm (including mud guard) |
|
Total Height |
Approx 1,860mm |
|
King Pin Location |
Approx 972mm from the front face of the front bolster |
|
Wheelbase |
Approx 6,840mm+1310mm |
|
Landing Gear location |
2,420mm behind the king pin location |
|
Fifth wheel (King Pin) Height |
Approx 1,350mm with the chassis level |
|
Capacity |
40 tons |
|
Tare Weight |
Approx 8,700 kg (Tolerance 0~-4%) |
|
Max. Payload |
Approx 40,000 |
|
Gross Vehicle Weight |
Approx 48,700 kg |
|
Main Beam |
Mild Alloy Q235B is used for welded I-beam and (345MPa) is used for welded fabricated parts. Height 500mm, Top 14mm, middle 8mm, bottom 16mm. |
|
Container locks |
12 units, can carry one 40 ft container and two 20 ft containers |
|
Kingpin |
2” or 3.5’’ Brand: JOST. Made in China. |
|
Landing Gear |
Jost 28T landing gear, Single side operation |
|

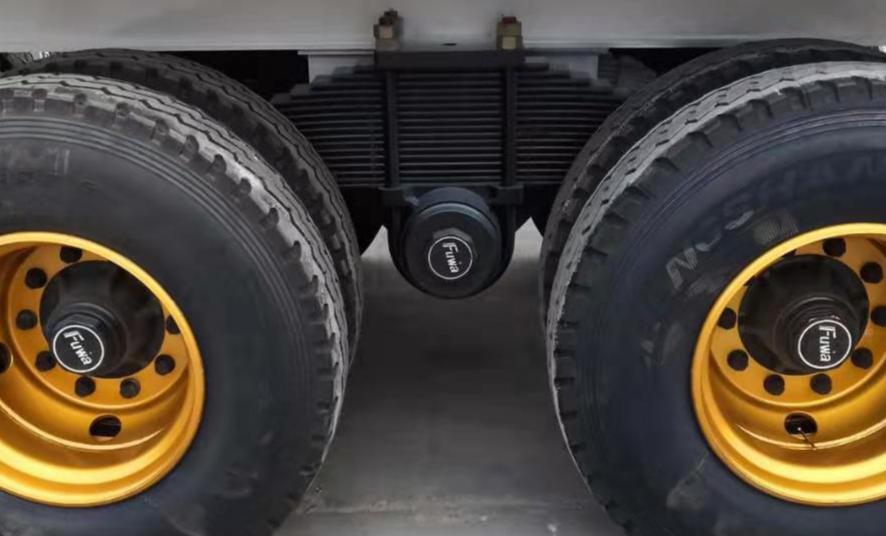

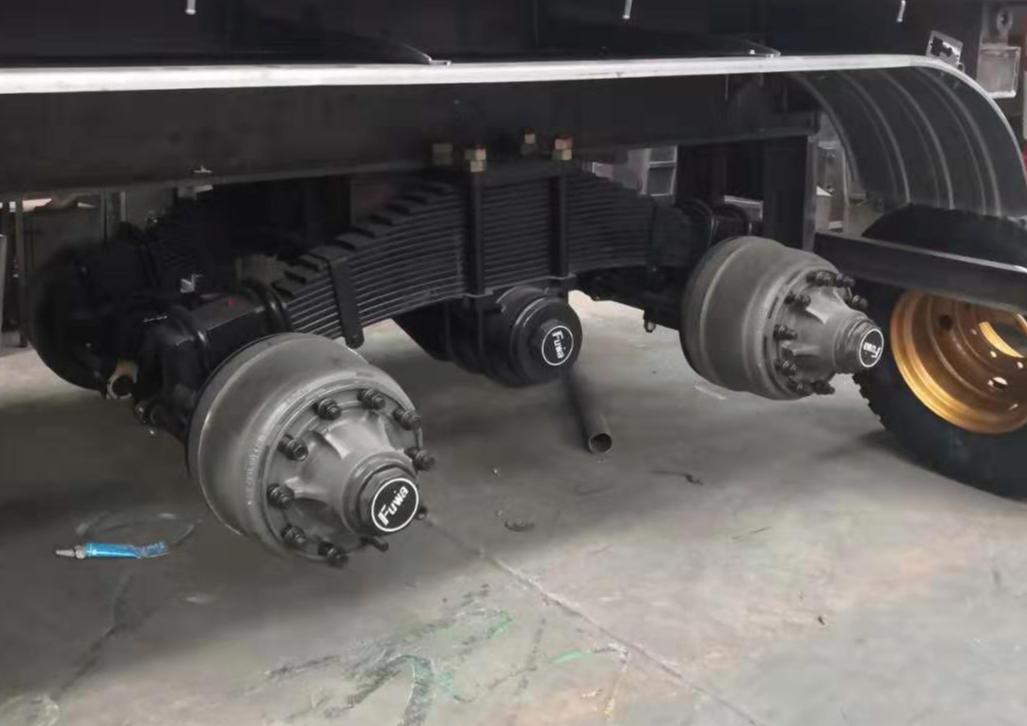

Suspension |
Boggie Suspension, the leaf spring is 17pcs. |
|
Axles |
FUWA 26T Boggie Suspension |
|
Rims |
9.00-22.5，12 pieces. 10 holes Steel rim, Made in China. |
|
Tires |
315/80R22.5, 12pieces. China First-level Brand, Made in China. |
|
Brake System |
Dual air brake system, WABCO or Haldex relay valve, none ABS brake system. |
|
Brake chamber |
Type 30/30 on the rear two axles, Type 30 on the first axle. |
|
Electrical System |
24 volt lighting system, 7-way receptacle, ISO standard. |
|
Spare tire carrier |
Two sets spare tire carrier |
|
Side guard |
None |
|
Tool Box |
One |
|
Reflector tape |
Side yellow color and rear red color reflector tap |
|
Mudguard |
Mudguard on top of tire. |
|
Painting & Logo |
As client ‘s request. |
