HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
The most important thing is to believe us, our company is an authorized dealer of SINOTRUK，we have cooperated with SINOTRUK HOWO for many years, and our prices are enough to surprise you.
|

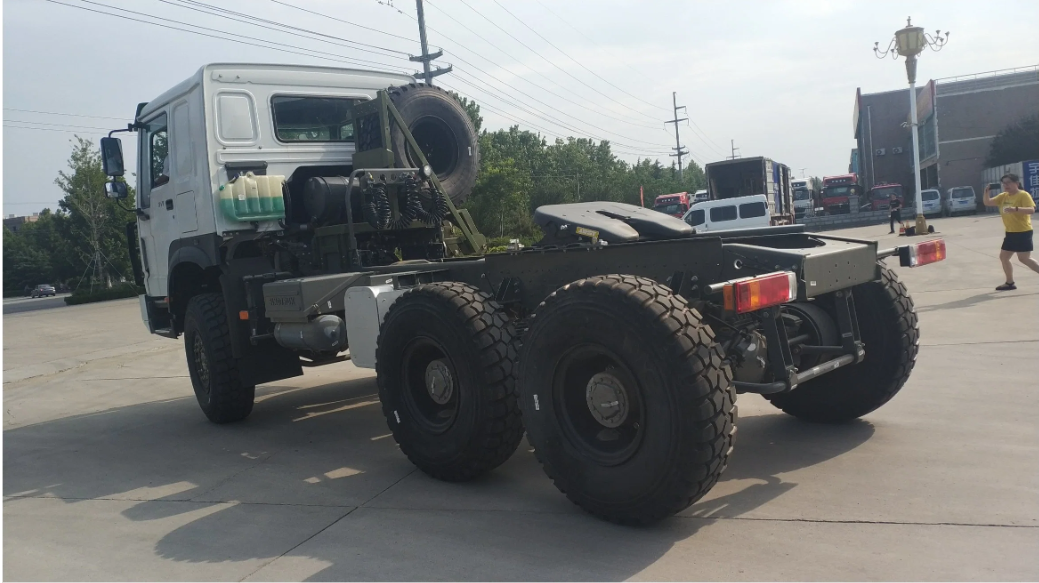

SINOTRUK HOWO 6x4 Tractor Truck |
|
|
Chassis Model |
ZZ4257V3247B1 (Left/ Right Hand Driving Type Optional) |
|
Engine |
Model: WD615.47, Euro II, 371 HP 371HP / 340HP / 340HP / 380HP / 400HP / 430HP, Euro II / V |
|
Clutch |
Single-plate dry diaphragm spring clutch, diameter 430mm,hydraulically operating with air assistance |
|
Gearbox |
SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO) |
|
Front Axles |
VGD95, 9500kg with drum brake system |
|
Rear Axles |
HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73 |
|
Suspension |
Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
|
Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer |
|
|
Steering System |
hydraulic steering with power assistance |
|
Braking System |
Front drum rear drum brake, four-circuit protection valve |
|
Tires |
12.00R20 (12.00R22.5, 315/80R22.5 optional), with one spare tyre |
|
Fuel Tank Volume (L) |
400 |
|
Dead Weight |
12020/8630 |
|
Gross Vehicle Weight (kg) |
25000 |
|
Rated Loading Weight (kg) |
12850; 12640 optional |
|
Overall Dimension |
6950x2550x3200 |
|
Wheelbase (mm) |
3200+1350 |
|
Min.Ground Clearance (mm) |
314 |
|
Approach/Depart Angle(°) |
19/ (27/65) |
|
Gradeability (%) |
≥50 |
|
Min. Turning Diameter (m) |
15 |
|
Cargo Body Volume (m3) |
13.2 |
