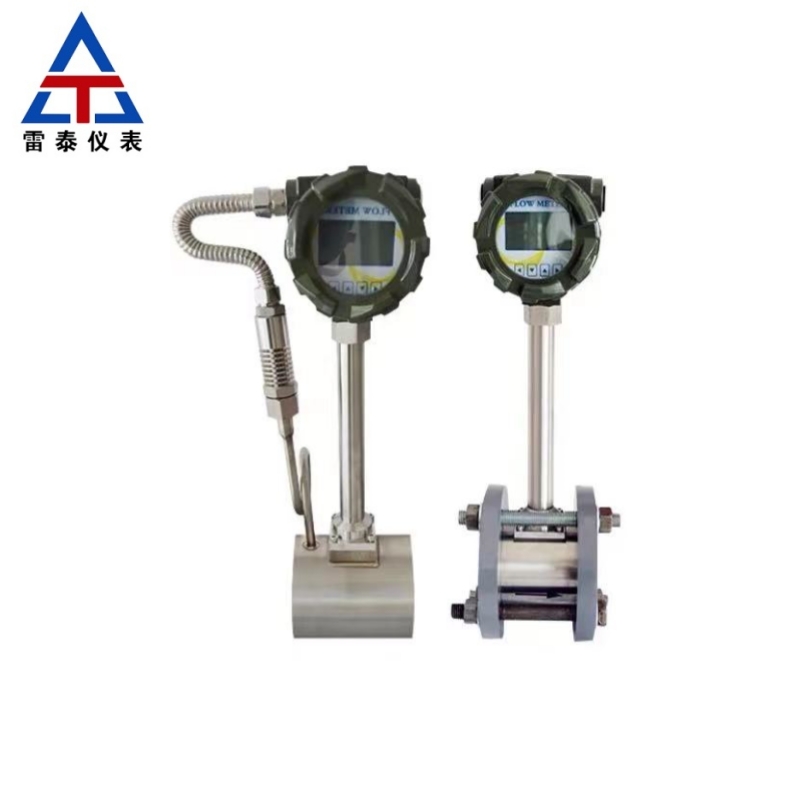

A steam vortex street flowmeter, when a non streamlined column, namely a vortex generator, is vertically inserted into a steam fluid, if the Reynolds number reaches a certain value, two columns of alternating vortices will be generated downstream of the column. These vortices are arranged neatly and turn in opposite directions, forming a "vortex street". The frequency of the vortex street is directly proportional to the velocity of the steam. By measuring the frequency of the vortex and combining it with parameters such as the width of the upstream surface of the vortex generator and the diameter of the body, the average velocity and flow rate of the measured steam can be calculated.

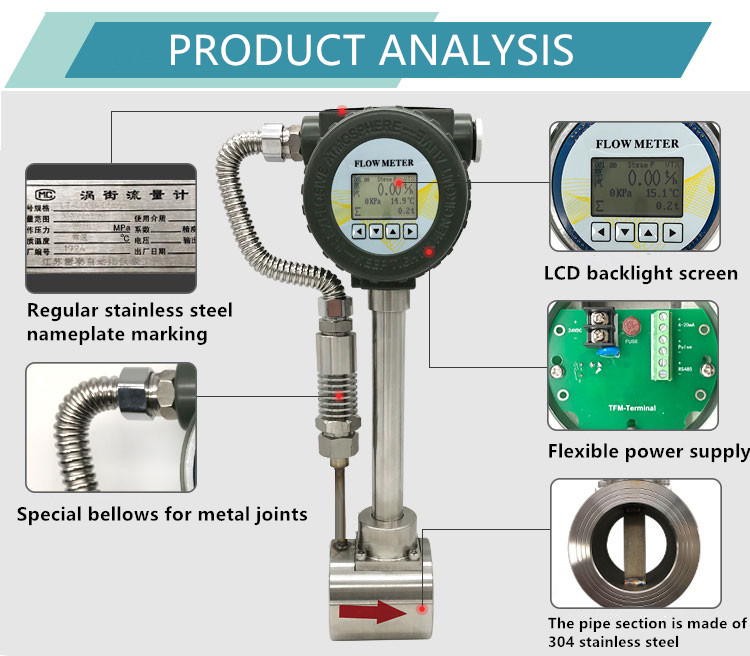

Structural composition

Vortex generator: usually triangular or prismatic, used to perturb steam fluid and generate vortex.

Sensor probe: generally a piezoelectric or capacitive sensor, used to detect vortex frequency.

Flow measurement pipeline: It is a channel through which steam flows, and the vortex generator and probe are installed inside.

Signal processing unit: responsible for converting the signals collected by the probe into flow velocity or flow data.

characteristic

High precision: The measurement accuracy is high, and the liquid measurement accuracy can reach ± 0.5% of the measured value,

Wide range ratio: The flow measurement range is wide, with a liquid ratio of 20:1 and a gas ratio of 70:1. It can also work effectively in low flow areas.

Small pressure loss: Low energy consumption during the measurement process.

High stability: No mechanical moving parts, simple structure, long-term stable operation, easy installation.

Strong anti-interference ability: It can resist external interference and ensure the accuracy of measurement results.

Low installation space: Low requirements for front and rear straight pipe sections, small footprint, light weight, and relatively convenient offline calibration.

Wide range of measurement media: capable of measuring the volumetric and mass flow rates of steam, gas, and liquid, with a maximum allowable temperature of up to 400 ℃.

Easy to operate: The electromechanical integration design eliminates the need for manual supervision for daily measurement and calibration operations. Measurement technical parameters such as flow rate, working pressure, and temperature can be intuitively read from the meter head without conversion.

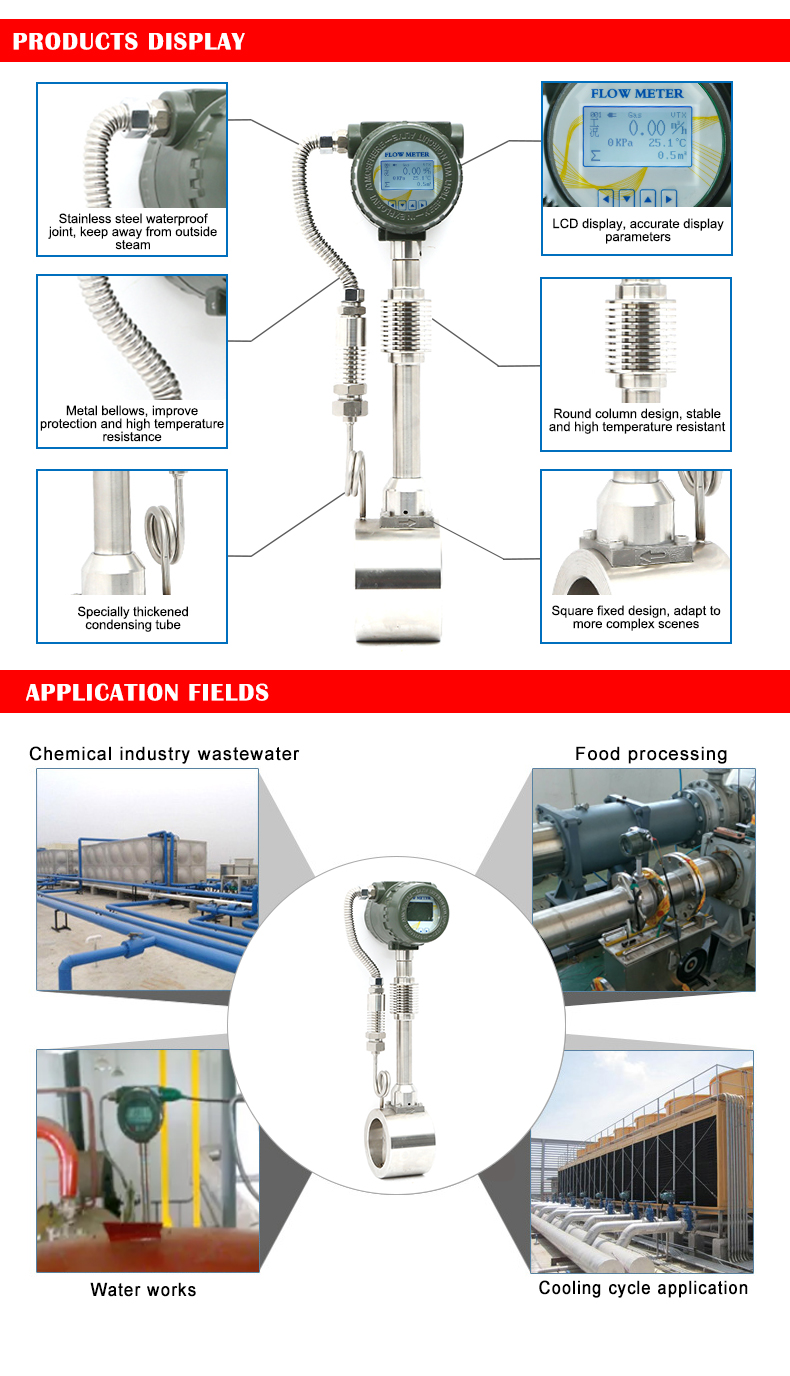

Application areas: Energy industry, chemical industry, metallurgical industry, food industry

Widely used in industries such as steel plants, coking plants, petroleum, thermal, medical, environmental protection, etc., such as measuring gas flow rate, boiler air flow rate, chimney exhaust gas flow rate, aeration flow rate in water treatment, etc.

Our main products include electromagnetic flowmeter, turbine flowmeter,mass flowmeter, vortex street flowmeter, pressure transmitter, liquid level transmitter, and magnetic level indicator.
