1. Technical Specification

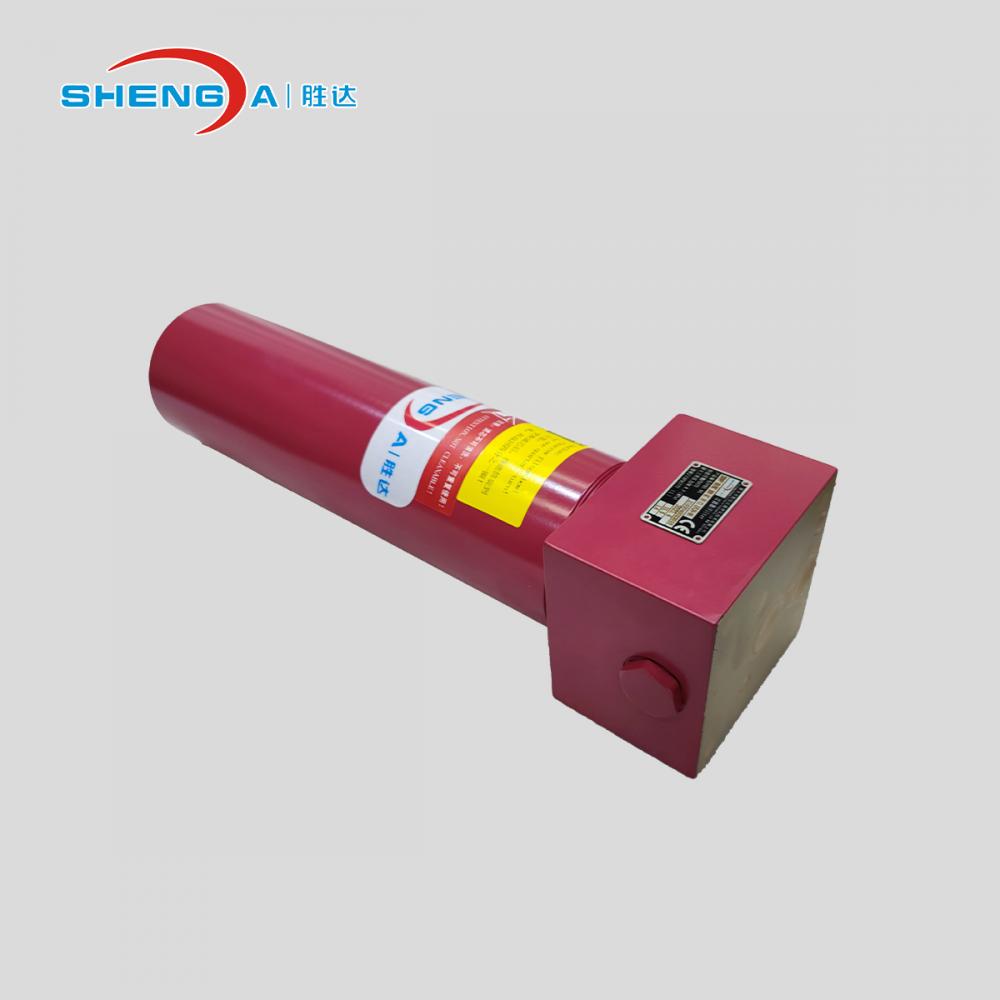

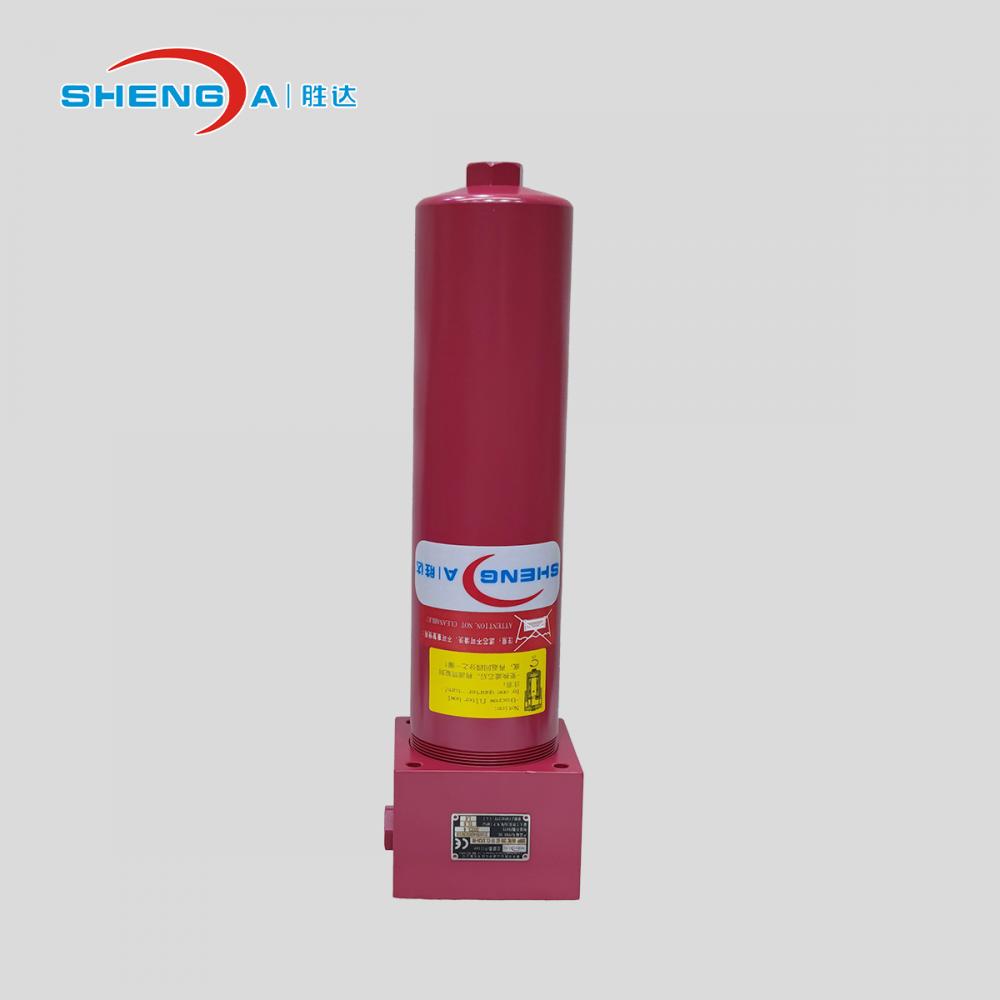

1.1 Filter Housing
Construction
Chang-over pressure filters are designed in accordance with international regulation, which consist of a filter housing with a screw-on cover plate
Standard equipment
without clogging indicator
two-piece bowl for size 990 and above
drain plug with pressure relief (size 330 and above)
1.2 Filter Element
Shengda are sure that our filters are of reliable performance so that they can protect hydraulic parts from polluting and machines from abrasion.
Filters are validated according to the following standards
DINISO 2941
DINISO 2942
DINISO 2943
ISO 3724
ISO 3968
ISO 16889
Filter elements are available with the following pressure stability values
BN/HC:20bar W/HC:20bar V:210bar BH/HC:210bar
1.3 Seals
NBR Or FPM
1.4 Special models and accessories
-Bypass valve
1.5 Spare parts
-See Spare part and maintenance list
1.6 Compatibility with hydraulic fluids ISO2943
-Hydraulic oil H to HLPD DIN 51524-Lubrication oils DIN 51517, APJ, ACEA, DIN 51515, ISO6743
-Compressor oil DIN 51506-Biodegradable operating fluids DMA24568, HETG, HEES, HEPG
-Non-flame operating fluids HFA, HFB, HFC, and HFD
2.General Mounting
As pressure filter for manifold block mounting
Temperature range: -10℃~to+100℃
Pressure setting of clogging indicator: ΔP=5bar-10%
Bypass cracking pressure: ΔPa=6bar+10%
3.Certificates
