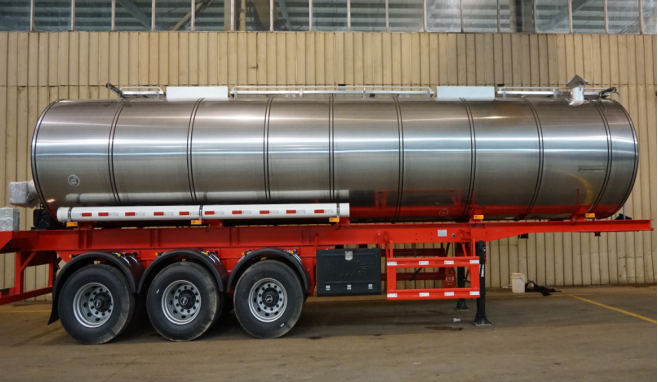

Bitumen Asphalt Tank Trailer

11 month ago

30 0

Shandong Tenda Vehicle Co. LTD

 12 month year

Product details

The tank trailer can be for fuel, water, chemical liquid transportation, it can be customized:
• Carrying for water, fuel, petrolum, crude oil, Diesel, Gasoline Fuel, asphalt, chemicals, corrosives, petro-chemicals, liquid fertilizer, caustic soda, concentrated sulfuric acid, etc.
• The inside of tank body is corrosion-proof treated to meet the transport demands for different kinds of liquid foods and chemical liquids.
• the tank volume can be customized.
• High Quality Body
• BPW, FUWA or Certificated Chinese Axles
• ABS brake system
• JOST or Chinese brand parking leg and king pin
• Air and Mechanical Suspension
• Strength Chassis Construction

Our tank trailers advantages:
** Actively introducting and absorbing domestic and foreign advanced design, the tank body is designed with CAD, with reasonable structure, light deadweight, large working volume, and lower transportation cost.
** We choose well-known brand OEM parts, good-looking and drable, decrease the cost of operate and maintain.
** The sub-frame and semi trailer walking machanism are made of high strength GB steel, welded by special welding equipment, light dead-weight, and ensure its resistance to twisting forces, shock and bump, meet load requirements on different kind of road.
** The tank body use snad blasting, rust removal technique and high-grade polyamine paint, which can make the paint a strong adhesion force, beautiful, bright and persistent.

**The liquid tanker is produced with the special equipment, such as large special coiling plate machine and "welding by one side; in shape by two sides" welding machine, with the features of stable quality, cost-saving and good-looking.

Type	3 axle Asphalt Tanker Semi Traile
♦ Tank Material: 罐体材质	Carbon steel Q345 碳钢Q345
♦ Shell Body 筒身	5 mm nominal thickness 厚度5mm
♦ Head 封头	6 mm nominal thickness 厚度6mm
♦ Baffles 内挡板	3mm nominal thick, wave shape, 5 pieces, with Ø 500mm service port 波浪形板，3mm厚度,5道，维修孔直径Ø 500mm
♦Tank Shape 罐体形状	Resembled Ellipse Shape 仿椭圆形
♦Capacity 容积	Full capacity 45000L 容积为45000L
♦Transport medium 运输介质	Asphalt 沥青
♦Tank paint 罐体油漆	Carbon steel tank: with 1 antirust, 1 base coat and 1 finishing coat. The color is black. It also can be customized. 碳钢罐体：一道防锈漆, 一道底漆, 一道面漆. 罐体颜色黑色. 也可按用户要求施工。
♦Testing Pressure 试验压力	36kPa, Water pressure test 36kPa水压试验
Name（名称）	Standard Configuration（标准配置）
♦ Top inlet port 上进料口	2 pieces 2只
♦ Manhole Cover 人孔装置	Carbon steel 碳钢材质
♦Safety breathing valve 安全呼吸阀	2 pieces 2只
♦ Main Configuration of Heating System 加热装置主要配置	沥青泵，驱动电机（11KW） Bitumen pump, Drive motor:11KW 燃烧器（2只），带变压器，温控箱 Burner(2pieces), With transformer and temperature controller 燃烧火管，沥青阀门，管路等 Burning fire tube, Asphalt valve, and pipeline.
♦ Power supply mode供电方式	External power supply or use Generator 外接电源或使用发电机
♦ Unloading port: 放料口	It fixed at each rear side of tank, the size is DN100 (4 inches). 装在罐体尾部, 卸料口为(4寸)DN100
♦ Pipe box: 管道箱	It made of plastic, round shape which on the both sides of tank. 两边管道箱采用塑料圆管制作。
♦ Anti – Static System: 静电防护	Static electricity plate, copper plate and earth cable reel 静电盘，铜片，地线
