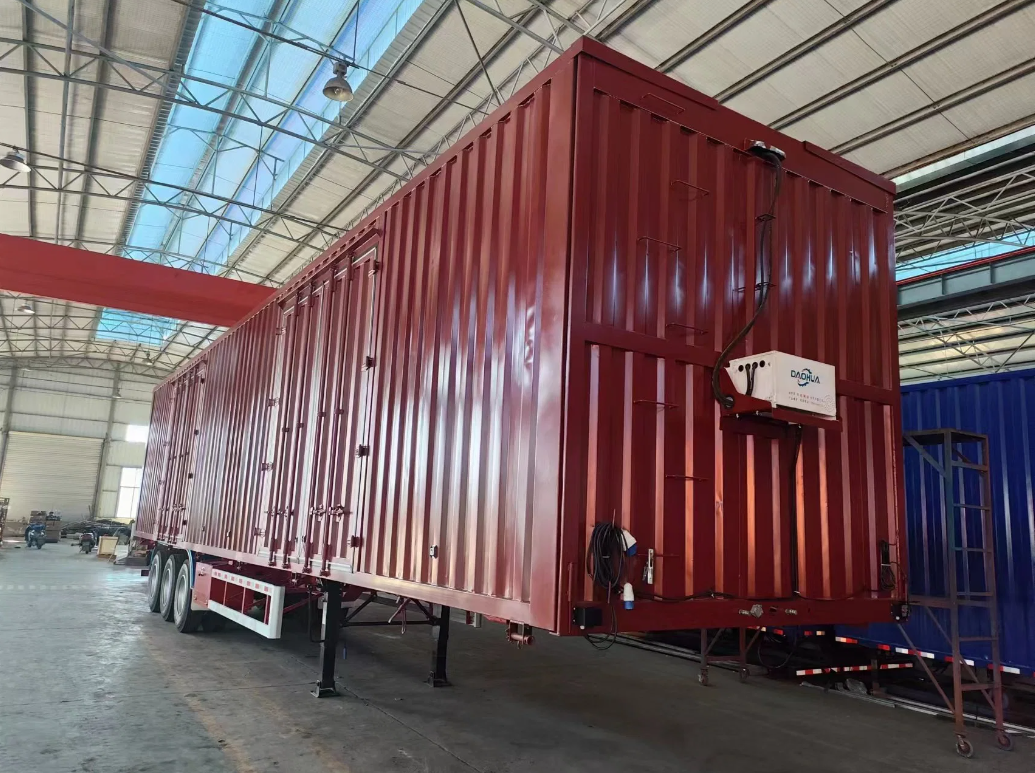

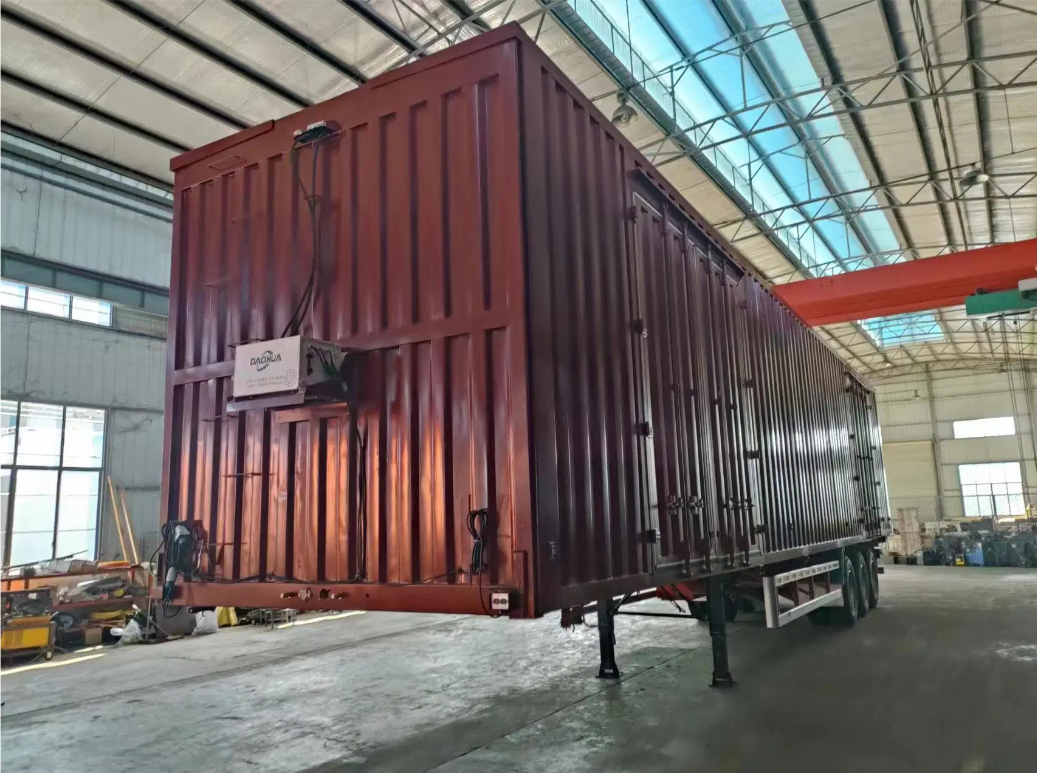

3 axles Van Box Semi Trailer

2 year ago

22 0

Shandong Tenda Vehicle Co. LTD

 2 year year

Product details

The box type semi trailer series products are suitable for the transportation of household appliances, light textile goods, construction materials such as coal, sand, and other goods, as well as graphic goods.

1. The box transport semi-trailer has strong load-bearing capacity, high safety factor, reasonable design, durability, and advanced manufacturing technology.

2. The frame of the box type transport semi-trailer is a through beam structure, and the longitudinal beam adopts a flat or gooseneck type. The height of the web plate ranges from 400 to 550, and the longitudinal beam is automatically submerged welded. The frame is shot blasted, and the crossbeam is penetrated into the longitudinal beam and welded as a whole.

3. Box structure: The box body is made of high-strength cold rolled corrugated steel plates, without a skeleton structure, with a wide selection of centers, large loading space, reasonable distribution inside the box, and X-shaped braces, which have the characteristics of multi pulling, heavy loading, and light self weight. The roof of the car is available in closed, push open, open, and open style, making it easy to operate and meeting the diverse and personalized requirements of users.

4. Series leaf spring and suspension support; Reasonable structure, with strong stiffness and hardness, used to support loads and mitigate impacts.

5. The box transport semi-trailer adopts a closed side protection design, which effectively reduces the lateral risk of the vehicle during high-speed driving and reduces energy consumption. The rear protection design has a reasonable trolley attachment, which is convenient for operation.

2 Axles Van Semi Trailer	3 Axles Van Semi Trailer	4 Axles Van Semi Trailer
Loading Capacity:20-50 Tons	Loading Capacity:30-60 Tons	Loading Capacity:60-100 Tons
LWH:13000mm2550mm2400mm	LWH:13000mm2550mm2400mm	LWH:13000mm2550mm2400mm
Door Position:Multi-Choice	Door Position:Multi-Choice	Door Position:Multi-Choice
Main Beam Material:Q345/T700	Main Beam Material:Q345/T700	Main Beam Material:Q345/T700
Height: 500mm	Height: 500mm	Height: 500mm
Upper Plate: 12mm	Upper Plate: 14mm	Upper Plate: 16mm
Middle Plate: 6mm	Middle Plate: 8mm	Middle Plate: 10mm
Lower Plate: 14mm	Lower Plate: 16mm	Lower Plate: 18mm
Box Plate Thickness :0.9mm	Box Plate Thickness :0.9mm	Box Plate Thickness :0.9mm
Axles	Axles	Axles
2*13T/16T FUWA/BPW	3*13T/16T FUWA/BPW	4*13T/16T FUWA/BPW
Tire	Tire	Tire
11.00R20/12R22.5*8 pieces, Linglong/Triangle/Double-Coin	11.00R20/12R22.5*12 pieces, Linglong/Triangle/Double-Coin	11.00R20/12R22.5*16 pieces, Linglong/Triangle/Double-Coin
Rim	Rim	Rim
9.0/8.0*8 pieces, steel/aluminum	9.0/8.0*12 pieces, steel/aluminum	9.0/8.0*16 pieces, steel/aluminum
Suspension	Suspension	Suspension
Mechanical/ Air	Mechanical/ Air	Mechanical/ Air
Leaf Spring	Leaf Spring	Leaf Spring
90mm13/16mm10 pieces	90mm13/16mm10 pieces	90mm13/16mm10 pieces
Landing Gear	Landing Gear	Landing Gear
Jost 28T two-speed	Jost 28T two-speed	Jost 28T two-speed
King Pin	King Pin	King Pin
Jost 2''(50#)/3.5''(90#) changeable	Jost 2''(50#)/3.5''(90#) changeable	Jost 2''(50#)/3.5''(90#) changeable
Tool Box	Tool Box	Tool Box
steel/aluminum	steel/aluminum	steel/aluminum
