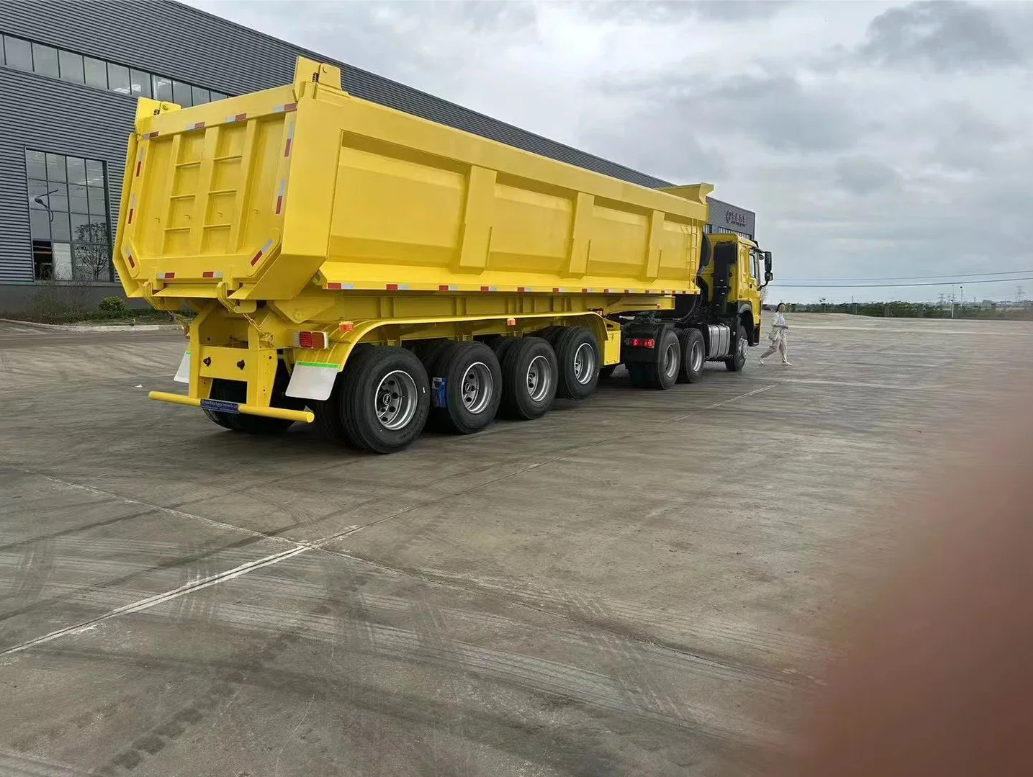

The end cover of 4 Axles U Box 100T Rear Dump Tipper Semi Trailer is connected with an adjustable spring that can be opened and closed from the bottom. 4/5 axles Heavy duty tipper dump trailers are playing more and more roles in west Africa countries, such like Cote d 'Ivoire, Guinea, Ghana and ect.
Loading Capacity
40-50 tons
50-70 tons
Axle
3 pieces, 13T FUWA/BPW axle
4 pieces, 13T FUWA/BPW axle
Tyre
12 pieces, 12.00R20
16 pieces, 12.00R20
Dimensions(LxWxH)
9750 to 12000mm x 2500 x 3200mm
Tare weight
10 tons to 12 tons
Axle spacing
1310mm
Rims
8.5-20, 9.0-20
Suspension System
Leaf spring suspension / air suspension
Brake System
Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam
Height 500mm Q345
Chassis
upper 14mm, lower 16mm. Mid web 12mm
Dump Box Thickness
Bottom 8mm Side 6mm
Hydraulic Cylinder
HYVA
Kingpin
2' or 3.5' interchangeable
Landing Gear
28 Tons , Two speed manual operation
Electrical System
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box
One tool box with a set of standard trailer tools
Spare Tyre Carrier
One piece or two pieces
