P/N: YZPST-MCR100-6

MCR100-6 Series 0.8A Sensitive SCRs

DESCRIPTION:

The MCR100-6 SCR series provide high dv/dt rate

with strong resistance to electromagnetic interface.

They are especially recommended for use on residual current circuit breaker, straight hair, igniter etc.

MAIN FEATURES:

symbol	value	unit
IT(RMS)	1	A
VDRM/VRRM	400/600	V
VTM	≤1.5	V

ABSOLUTE MAXIMUM RATINGS:

Parameter	Symbol	Value	Unit
Storage junction temperature range	Tstg	-40~150	℃
Operating junction temperature range	Tj	-40~110	℃
Repetitive peak off-state voltage (Tj=25℃)	VDRM	400/600	V
Repetitive peak reverse voltage (Tj=25℃)	VRRM	400/600	V
RMS on-state current	IT(RMS)	0.8	A
Non repetitive surge peak on-state current (full cycle, F=50Hz)	ITSM	8	A
I2t value for fusing (tp=10ms)	I2t	0.32	A2s
Critical rate of rise of on-state current (IG=2 × IGT)	dI/dt	50	A/ μs
Peak gate current	IGM	0.2	A
Average gate power dissipation	PG(AV)	0.1	W
Peak gate power	PGM	0.5	W

ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)

Symbol	Test Condition	Value			Unit
Symbol	Test Condition	MIN	TYPE	MAX	Unit
IGT	VD=12V, RL=33Ω	-	20	200	µA
VGT	VD=12V, RL=33Ω	-	0.6	0.8	V
VGD	VD=VDRM Tj=110℃ RL=3.3kΩ	0.2	-	-	V
IH	IT=50mA	-	-	5	mA
IL	IG=1.2IGT	-	-	6	mA
dV/dt	VD=0.66×VDRM Tj=110℃ G open RGK=1KΩ	10	-	-	V/ µs

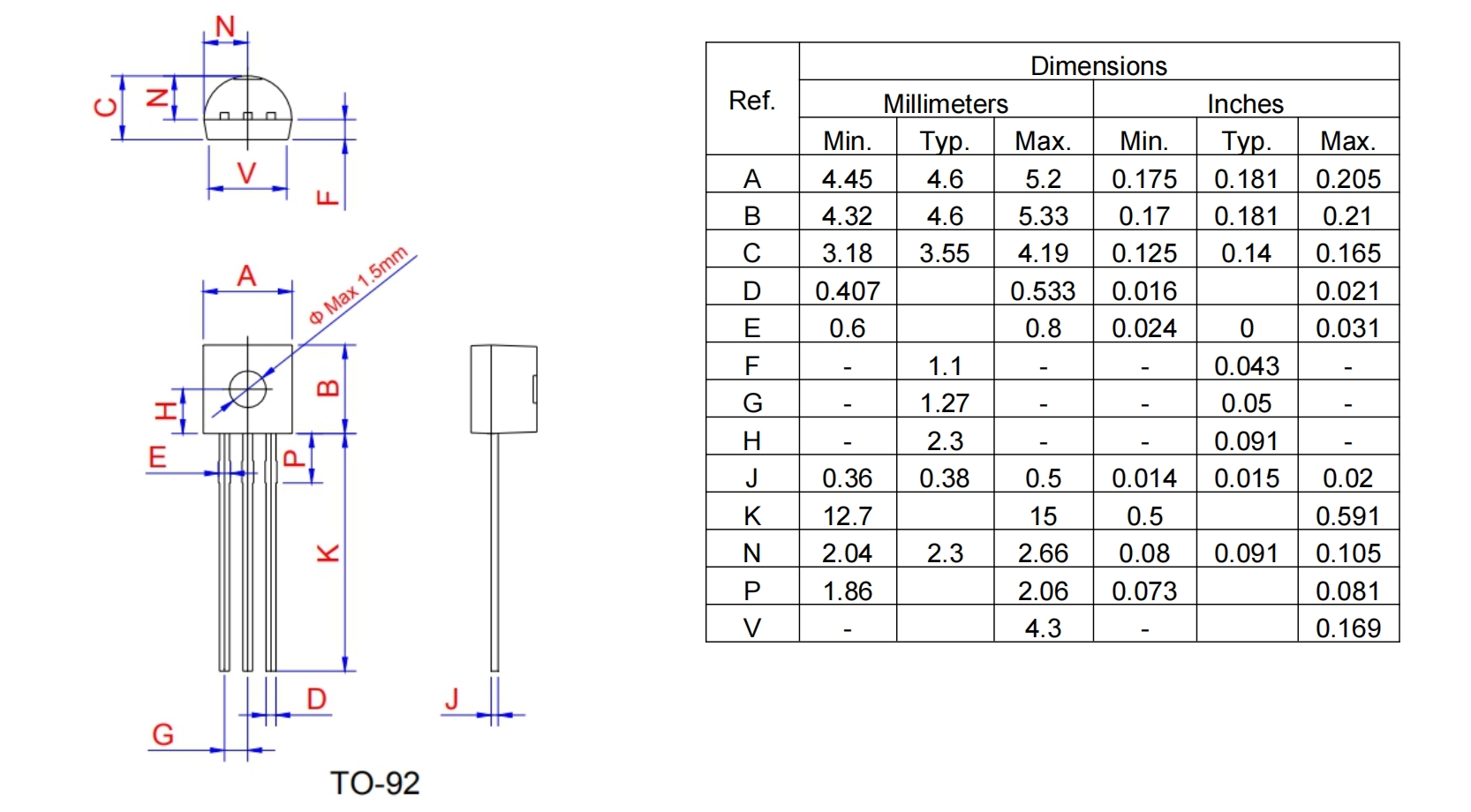

PACKAGE MECHANICAL DATA
